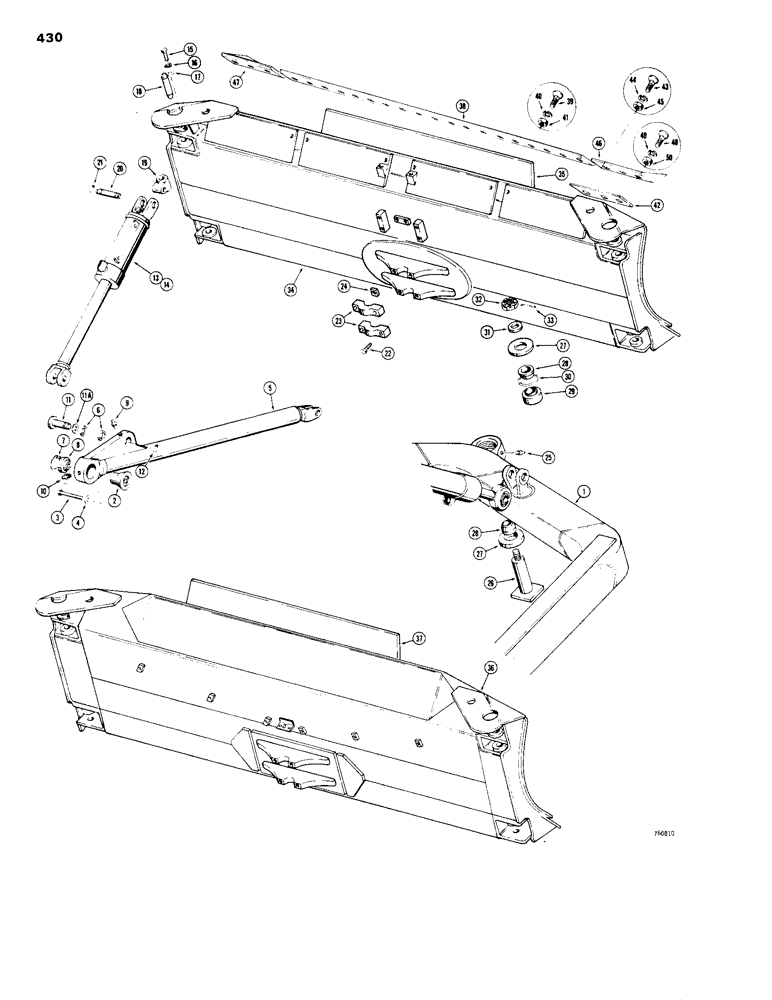

Запчасти Case 1150B (430) - ANGLE TILT PITCH DOZER - MECHANICAL PARTS, DOZING BLADES & STRUT (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

"C" FRAME - dozer, Figs. 422 & 426

1шт.

2

D51015

PIN

- strut mounting

2шт.

3

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

HHCS - 1" - 8 NC x 4-1/2"

2шт.

4

D51030

WASHER

- special

2шт.

R26776

STRUT

ASSEMBLY - lower, 2 grease fittings, order R38538, Includes: Refs. 5 - 10

2шт.

R38538

STAY

STRUT ASSEMBLY - lower, 1 grease fitting, Includes: Refs. 5 - 10

2шт.

5

R38539

STRUT - lower

1шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- at "C" frame

2шт.

There is only one bushing and no zerk for that bushng

1шт.

7

NLS

NO LONGER SERVICED

3.156", Int, #315

1шт.

8

D23601

HOUSING

BUSHING - self-aligning

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

11

D52386

PIN

- mounting, cylinder

2шт.

11a

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

6шт.

12

D25279

SNAP RING,M35, Int

RING - retainig

2шт.

13

REF

INSTRUCTION

CYLINDER - RH, tilt and pitch, Figs. 290 - 294

1шт.

14

REF

INSTRUCTION

CYLINDER - LH, tilt and pitch, Figs. 290 - 294

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

17

R29595

WASHER

- special

4шт.

18

D95312

PIN

- mounting, blade

4шт.

19

70315

UNIVERSAL JOINT

UNIVERSAL

4шт.

20

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - mounting, strut and cylinder

4шт.

21

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

22

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

4шт.

23

R26078

CAP

- pivot, blade, if used

2шт.

24

R26676

SPACER

- cap

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

26

R26672

PIN

- swivel

1шт.

27

D52379

GASKET

- pivot

2шт.

28

R26679

SPACER

- R26680 bushing

2шт.

28

R37022

SPACER

- R37021 bushing

2шт.

Included in kits R37982 and R37983, Figs. 422 & 426

1шт.

29

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning, 3-15/16" (100 mm) OD

1шт.

29

R37021

SPHERICAL BEARING,63.5mm ID x 111.13mm OD x 64.64mm W

- self-aligning, 4-3/8" (111 mm) OD

1шт.

Included in kits R37982 and R37983, Figs. 422 & 426

1шт.

30

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, , R26680 bushing 3.938", Int, #393

1шт.

30

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , R37021 bushing 4.331", Int, #433

1шт.

Included in kits R37982 and R37983, Figs. 422 & 426

1шт.

31

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- special

1шт.

32

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2" - 6 NC

1шт.

33

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

34

R26678

BLADE - standard, use R31498 kit for service, Serial Range: -7303251

1шт.

R31498 and R31499 kits convert early production R26678 and R26767 blades, before tractor S/N 7303251, to late production, R31180 and R31358 blades, tractor S/N 7303251 and after

1шт.

34

R26767

BLADE - with push plate, use R31499 kit for service, Serial Range: -7303251

1шт.

R31498 and R31499 kits convert early production R26678 and R26767 blades, before tractor S/N 7303251, to late production, R31180 and R31358 blades, tractor S/N 7303251 and after

1шт.

35

D51141

PLATE - push

1шт.

36

R31180

BLADE - standard, used tractor sn 7303251 - 7305244, Includes: Ref. 37

1шт.

R31498 and R31499 kits convert early production R26678 and R26767 blades, before tractor S/N 7303251, to late production, R31180 and R31358 blades, tractor S/N 7303251 and after

1шт.

36

R31358

BLADE - with push plate, used tractor sn 7303251 - 7305244

1шт.

R31498 and R31499 kits convert early production R26678 and R26767 blades, before tractor S/N 7303251, to late production, R31180 and R31358 blades, tractor S/N 7303251 and after

1шт.

37

D51141

PLATE - push

1шт.

38

R41350

EDGE, CUTTING

BLADE - cutting, center

1шт.

39

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4", grade 8

24шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

41

25-1010

NUT,5/8"-11, G5

24шт.

42

R41351

EDGE, CUTTING

BIT - cutting, LH standard

1шт.

42

R41352

EDGE, CUTTING

BIT - cutting, RH standard

1шт.

43

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4", grade 8

4-6шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

45

25-1010

NUT,5/8"-11, G5

6шт.

46

D51100

EDGE, CUTTING

BIT - cutting, RH, heavy duty

1шт.

47

D51101

EDGE, CUTTING

BIT - cutting, LH, heavy duty

1шт.

48

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

10шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

50

25-1010

NUT,5/8"-11, G5

10шт.
