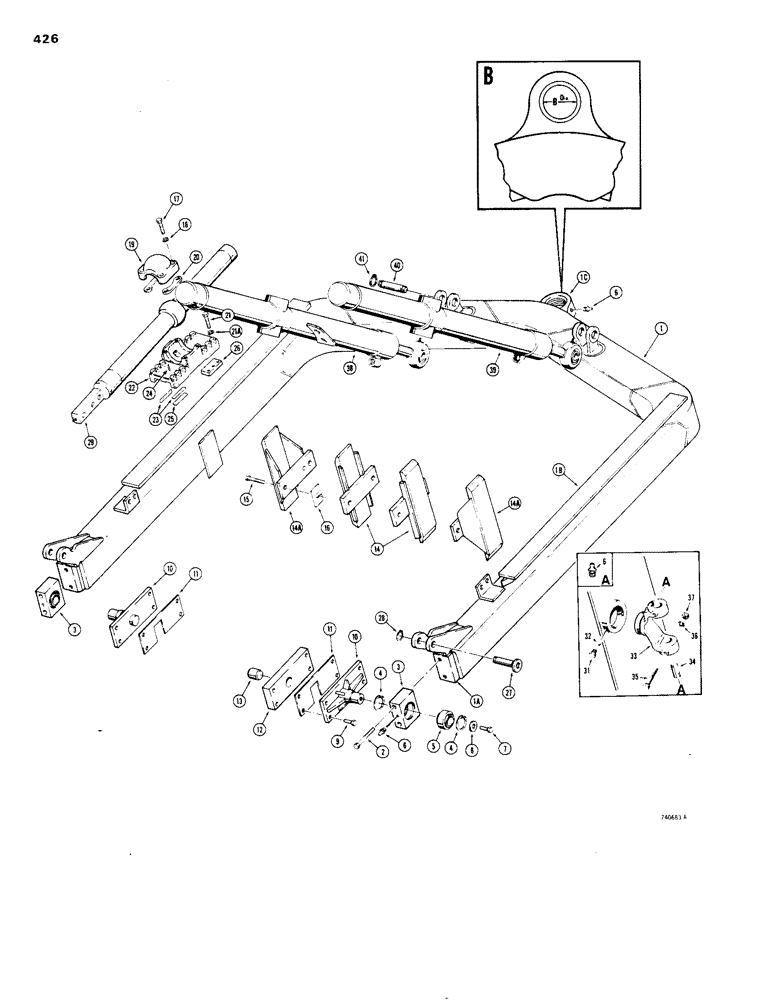

Запчасти Case 1150B (426) - ANGLE TILT PITCH DOZER MECHANICAL PARTS,"C" FRAME & MOUNTING HAS FABRICATED "C" FRAME CAPS W/BEARING (05) - UPPERSTRUCTURE CHASSIS

1

R32732

FRAME ASSY

"C" FRAME - standard track dozer, B is 3-15/16" (100 mm) ID, use R37024 frame (2) D37022 spacer, R32220 snap ring and R37021 bushing, Fig.430, Includes: Ref. 1A - 1C

1шт.

1

R37024

FRAME ASSY

"C" FRAME - standard track dozer, B is 4-47/64" (120 mm) ID, Includes: Ref. 1A - 1C

1шт.

Included in kits as follow: R37024 in Kit R37982 and Kit R37983, see Figs. 422 and 430

1шт.

1

R32766

FRAME ASSY

"C" FRAME - wide track dozer, B is 3-15/16" (100 mm) ID, use R37023 frame, (2) R37022 spacer, R32220 snap ring and R37821 bushing, see figure 430 , Includes: Ref. 1A - 1C

1шт.

1

R37023

FRAME ASSY

"C" FRAME - wide track dozer, B is 4-47/64" (120 mm) ID, Includes: Ref. 1A - 1C

1шт.

Included in kits as follow: R37024 in Kit R37982 and Kit R37983, see Figs. 422 and 430

1шт.

R37490

KIT

- trunnion block, R32766 and R37023 frames, Includes: Ref. 1A

2шт.

R37491

KIT

- trunnion block, R37024 and R32732 frames, Includes: Ref. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

BLOCK - tapped, R37490 and R37491 kits

1шт.

R29559

SLIDE

KIT - rail, slide, all "C" frames, Includes: Ref. 1B

1шт.

R29559

SLIDE

KIT - rail, slide, all "C" frames, Includes: Ref. 1B

1шт.

1b

D51086

SLIDE

- rail

2шт.

1c

R36758

KIT

- pivot casting, R32732 and R32766 frames, consists of insert and instuctions

1шт.

2

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

HHCS - 3/4" - 10 NC x 6-1/2", grade 8

4шт.

Part of P/N R37982 and R37983 Kits

1шт.

R32525

BLOCK

ASSEMBLY - trunnion, Includes: Refs. 3 - 5

2шт.

Part of P/N R37982 and R37983 Kits

1шт.

3

NSS

NOT SOLD SEPARAT

BLOCK - trunnion

1шт.

4

L13903

SNAP RING,3.562", Int, #354

RING, Snap, 3.562", Int, #354

2шт.

5

D51018

SPHERICAL BEARING,57.15mm ID x 90.49mm OD x 50.01mm W

- self-aligning

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

7шт.

Part of P/N R37982 and R37983 Kits

1шт.

7

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

Part of P/N R37982 and R37983 Kits

1шт.

8

R25495

DISC

WASHER - special

2шт.

Part of P/N R37982 and R37983 Kits

1шт.

9

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

standard track Hex, 3/4"-10 x 2", G8

8шт.

Part of P/N R37982 and R37983 Kits

1шт.

9

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

HHCS - 3/4" - 10 NC x 3-3/4", grade 8, wide track

8шт.

10

R34513

TRUNNION

- push

2шт.

Part of P/N R37982 and R37983 Kits

1шт.

11

R32808

SHIM,.059" Thk

(.062") (1.5748 mm) .059" Thk

1шт.

Part of P/N R37982 and R37983 Kits

1шт.

12

R26682

PLATE

SPACER - trunnion, wide track models

2шт.

13

R26764

PIPE CLAMP

PIN - dowel, wide track models

2шт.

14

R32806

BRACKET

- rub, standard track

2шт.

14a

R32804

BRACKET

- rub, wide track

2шт.

15

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2", grade 8

4шт.

16

R32807

SHIM,.059" Thk

(.062") (1.5748 mm) .059" Thk

1шт.

17

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

D51009

CAP

- slide bracket

2шт.

20

D51024

SHIM,.030" Thk

- .016" (.41 mm) thick

1шт.

21

26-846

BOLT,Hex, 1/2" - 13 x 2-7/8", Gr 8

HHCS - 1/2" - 13 NC x 2-7/8", grade 8

24шт.

21a

92-8

LOCK WASHER,1/2"

24шт.

22

R30998

BRACKET

- slide

2шт.

23

R31721

SHIM,.016" Thk

(.41 mm) .016" Thk

1шт.

24

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered 5/16" x 1", Type B, Hardened

32шт.

25

R30874

SPACER

STRIP - wear

16шт.

26

R30999

BLOCK

- side

8шт.

27

D51014

PIN

R31498 and R31499 kits convert early production R26678 and R26767 blades (before tractor sn 7303251) to late production, R31180 and R31358 blades (tractor sn 7303251 and after).

2шт.

28

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

29

REF

INSTRUCTION

CYLINDER - angle, Figs. 296 - 302

2шт.

31

D28481

PLUG

- special

2шт.

32

211-17

BALL,3/4" Dia

- steel, trunnion retaining

50шт.

33

D36175

YOKE

TRUNNION - lift arm

2шт.

34

D36176

PIN,38.1mm OD x 63.5mm L

- mounting, lift cylinder

4шт.

35

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

36

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

38

REF

INSTRUCTION

CYLINDER - LH lift, Figs. 280 - 284

1шт.

39

REF

INSTRUCTION

CYLINDER - RH lift, Figs. 280 - 284

1шт.

40

D32930

PIN,38.1mm OD x 127mm L

- lift cylinder

2шт.

41

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

R37982

FRAME

KIT

1шт.

R37983

FRAME

KIT

1шт.
