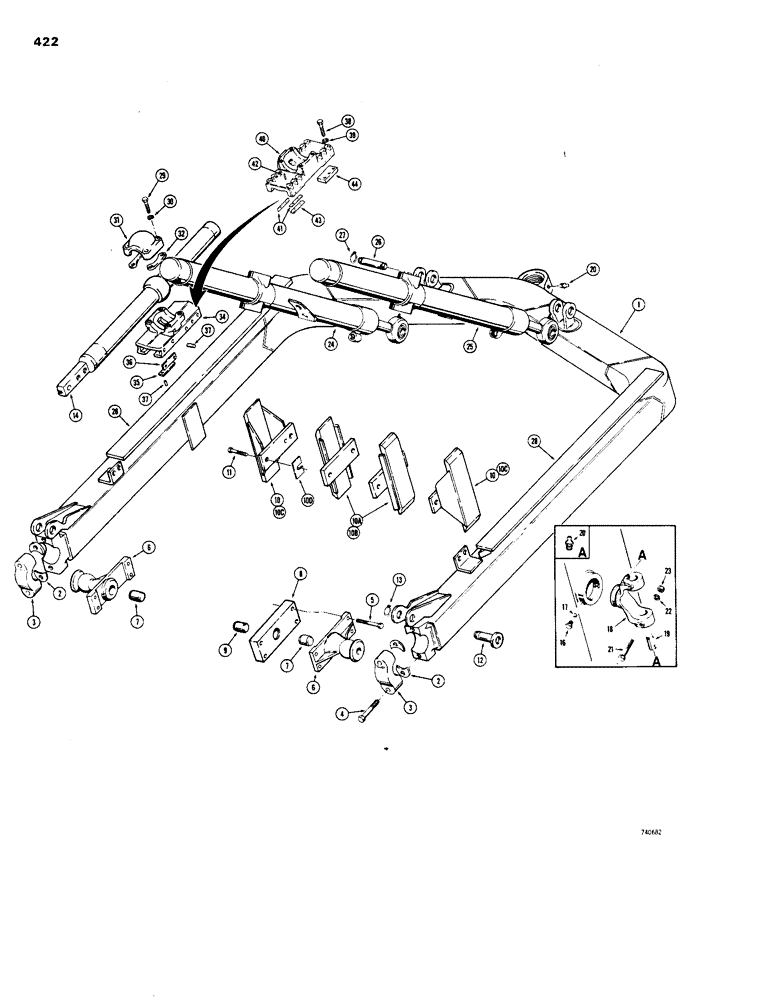

Запчасти Case 1150B (422) - ANGLE TILT PITCH DOZER - MECHANICAL PARTS, "C" FRAME & MOUNTING, HAS CAST "C" FRAME CAPS (05) - UPPERSTRUCTURE CHASSIS

1

R26701

FRAME ASSY

"C" FRAME - wide track dozer, use R37983 kit

1шт.

Includes: Figs. 426, 430, 427 & 431

1шт.

1

R26700

"C" FRAME - standard track dozer, use R37982 kit

1шт.

Includes: Figs. 426, 430, 427 & 431

1шт.

2

R26586

SHIM,.030" Thk

(.762 mm) .030" Thk

1шт.

3

R26564

CAP

- "C" frame

2шт.

4

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

HHCS - 1" x 8 NC x 4"

4шт.

5

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Wide track Hex, 3/4"-10 x 3 1/2", G5

8шт.

5

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Standard track Hex, 3/4"-10 x 2", G5

8шт.

6

R26589

TRUNNION

- push

2шт.

7

D51043

PIN - dowel

1шт.

8

R26682

PLATE

- spacer, wide track

2шт.

8

R26681

PLATE - spacer, standard track, not shown

1шт.

9

R26764

PIPE CLAMP

PIN - dowel, R26682 plate

2шт.

10

R26771

BRACKET

- rub, wide track, use R32845 kit

2шт.

10a

R26770

BRACKET

- rub, standard track, use R32846 kit

2шт.

R32845

BRACKET

KIT - rub bracket, wide track, Includes: Ref. 10C, 10D & 11

2шт.

R32846

KIT

- rub bracket, standard track, Includes: Ref. 10B, 10D & 11

2шт.

10b

R32806

BRACKET

- rub, R32846 kit

1шт.

Part of Rub Bracket Kit, P/N R32846

1шт.

10c

R32804

BRACKET

- rub, R32845 kit

1шт.

Part of Rub Bracket Kit, P/N R32845

1шт.

10d

R32807

SHIM,.059" Thk

(.062") (1.5748 mm), R32845 and R32846 kits .059" Thk

5шт.

Part of Rub Bracket Kit, P/N R32845

1шт.

Part of Rub Bracket Kit, P/N R32846

1шт.

11

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2", grade 8, R32845 and R32846 kit

2шт.

Part of Rub Bracket Kit, P/N R32845

1шт.

Part of Rub Bracket Kit, P/N R32846

1шт.

11

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

12

D51014

PIN

- mounting, angle cylinder

2шт.

13

D26918

SNAP RING,#125, Ext

RING, Snap, #125, Ext

2шт.

14

REF

INSTRUCTION

CYLINDER - angle, Figs. 296 - 302

2шт.

16

D28481

PLUG

- special

2шт.

17

211-17

BALL,3/4" Dia

- steel, trunnion retaining

50шт.

18

D36175

YOKE

TRUNNION - lift cylinder

2шт.

19

D36176

PIN,38.1mm OD x 63.5mm L

- mounting, lift cylinder

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

7шт.

21

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

24

REF

INSTRUCTION

CYLINDER - LH lift, Figs. 280 - 284

1шт.

25

REF

INSTRUCTION

CYLINDER - RH lift, Figs. 280 - 284

1шт.

26

D32930

PIN,38.1mm OD x 127mm L

- mounting, lift cylinder

2шт.

27

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

R29559

SLIDE

KIT - rail, slide, Includes: Ref. 28

1шт.

28

D51086

SLIDE

- rail, included with "C" frame

2шт.

29

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

30

92-8

LOCK WASHER,1/2"

8шт.

31

D51009

CAP

- slide and angle cylinder

2шт.

32

D51024

SHIM,.030" Thk

- .016" (.4064 mm) thick

1шт.

34

R29500

BRACKET

- slide, use R31079 kit for service

2шт.

35

R26775

SHIM,.016" Thk

(.4064 mm) .016" Thk

1шт.

36

R27926

STRIP

- wear

16шт.

37

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Taper, half length 5/16" x 1", Type B, Hardened

32шт.

38

26-846

BOLT,Hex, 1/2" - 13 x 2-7/8", Gr 8

HHCS - 1/2" - 13 NC x 2-7/8", grade 8, late production models & as service replacement

24шт.

Part of slide kit P/N R31079

1шт.

39

92-8

LOCK WASHER,1/2"

late production models & as service replacement 1/2"

24шт.

Part of slide kit P/N R31079

1шт.

40

R30998

BRACKET

- slide, late production models & as service replacement

2шт.

Part of slide kit P/N R31079

1шт.

41

R31721

SHIM,.016" Thk

(.4064 mm), Late production models & as service replacement .016" Thk

1шт.

Part of slide kit P/N R31079

1шт.

42

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered, late production models & as service replacement 5/16" x 1", Type B, Hardened

32шт.

Part of slide kit P/N R31079

1шт.

43

R30874

SPACER

STRIP - wear, late production models & as service replacement

16шт.

Part of slide kit P/N R31079

1шт.

44

R30999

BLOCK

- slide, late production models & as service replacement

8шт.

Part of slide kit P/N R31079

1шт.

R31079

KIT

- slide, Includes Refs. 38 - 44 in R31079 kit, late production models & as service replacement

2шт.
