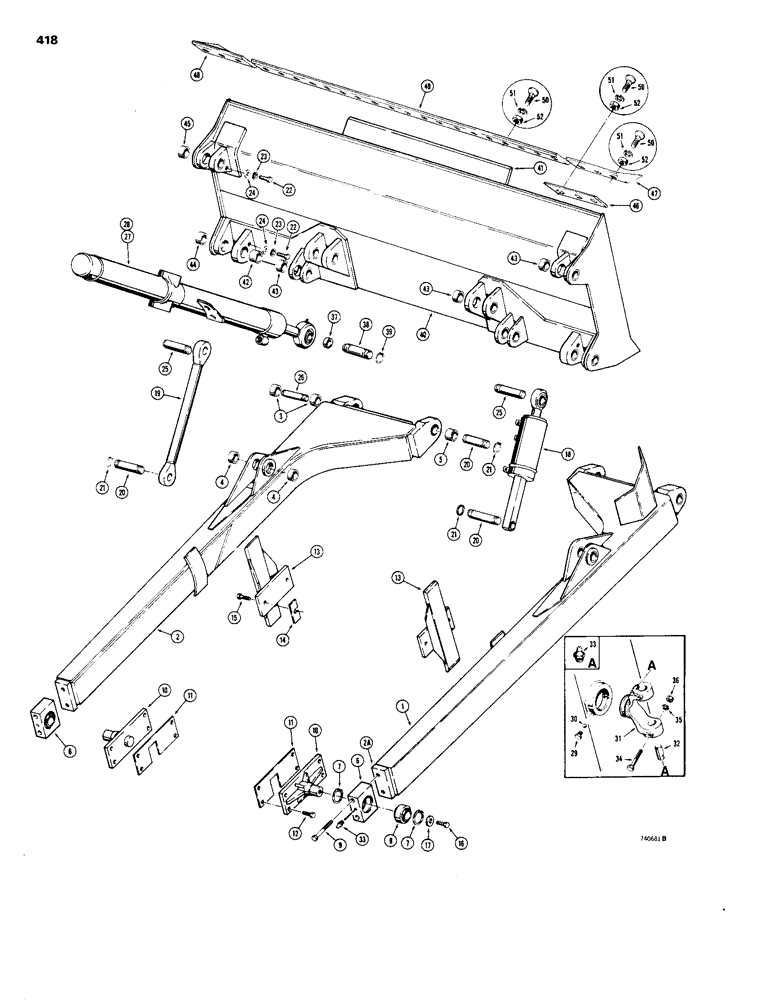

Запчасти Case 1150B (418) - TILT DOZER MECHANICAL PARTS, MODELS WITH 96", 104", 116" & 124" BLADES & W/ TILT HYD AT GRILLER (05) - UPPERSTRUCTURE CHASSIS

1

R34292

BEAM ASSY.

BEAM - push, RH, order R42809, Includes: P/N R37489 and Refs. 2A - 5

1шт.

2

R34291

BEAM ASSY.

BEAM - push, LH, order R42808, Includes: P/N R37489 and Refs. 2A - 5

1шт.

R37489

BLOCK

KIT - trunnion block, R34292 and R34291 beams, Includes: Ref. 2A

1шт.

2a

NSS

NOT SOLD SEPARAT

BLOCK - tapped

1шт.

3

D49287

BUSHING

- 1-7/16" (36 mm) long, all beams

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1" (25.4 mm) long, all beams

2шт.

5

D40089

BUSHING

- 2" (50.8 mm) long, all beams

2шт.

R32525

BLOCK

CAP ASSEMBLY - push beam, Includes: Refs. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - cap

1шт.

7

L13903

SNAP RING,3.562", Int, #354

RING, Snap, 3.562", Int, #354

2шт.

8

D51018

SPHERICAL BEARING,57.15mm ID x 90.49mm OD x 50.01mm W

- self aligning

1шт.

9

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- hex, 3/4" - 10 NC x 6-1/2", grade 8

4шт.

10

R34513

TRUNNION

- push, 96" (2438.4 mm) blade

2шт.

10

R34517

TRUNNION

- push, 104" , 116" and 124" (2641.6 mm, 2946.4 mm and 3149.6 mm)

2шт.

11

R32808

SHIM,.059" Thk

(.055") (1.397 mm) .059" Thk

1шт.

12

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

13

R31816

BRACKET

- rub, 104", 116" and 124" (2641.6 mm, 2946.4 mm and 3149.6 mm) blades

2шт.

13

R32802

BRACKET

- rub, 96" (2438.4 mm) blade

2шт.

14

R32807

SHIM,.059" Thk

(.055") (1.397 mm) .059" Thk

1шт.

15

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4" - 10 NC x 2-1/2", grade 8

4шт.

16

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

17

R25495

DISC

WASHER - special

2шт.

18

REF

INSTRUCTION

CYLINDER - tilt, see figires 286 and 288

1шт.

19

R37276

STRUT

BAR - blade

1шт.

20

R26724

AXLE PIN

PIN - mounting

4шт.

21

D25280

SNAP RING,#175, Ext

RING, Snap, #175, Ext

8шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

4шт.

25

R26726

PIN

- mounting, strut and cylinder

2шт.

26

R26723

PIN

- mounting, moldboard

2шт.

27

REF

INSTRUCTION

CYLINDER - LH lift, Figs. 272 - 278

1шт.

28

REF

INSTRUCTION

CYLINDER - RH lift, Figs. 272 - 278

1шт.

29

D28481

PLUG

- special

2шт.

30

211-17

BALL,3/4" Dia

- trunnion retaining

50шт.

31

D36175

YOKE

- trunnion, lift cylinder

2шт.

32

D36176

PIN,38.1mm OD x 63.5mm L

- mounting, trunnion

4шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

8шт.

34

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

35

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

37

R26587

SPACER

- cylinder rod

4шт.

38

R26725

PIN,152.4mm OD x 44.45mm L

- Mounting, cylinder

2шт.

39

D25280

SNAP RING,#175, Ext

RING, Snap, #175, Ext

4шт.

40

R26036

BLADE

ASSEMBLY - dozer, 96" (2438.4 mm) wide, Includes: Refs. 41 - 45

1шт.

40

R31856

BLADE

ASSEMBLY - dozer, 104" (2641.6 mm) wide, Includes: Refs. 41 - 45

1шт.

40

R34104

BLADE ASSEMBLY - dozer, 116" (2946.4 mm) wide, Includes: Refs. 41 - 45

1шт.

40

R32611

MOLDBOARD

BLADE ASSEMBLY - dozer, 124" (3149.6 mm) wide, order R42524, Includes: Refs. 41 - 45

1шт.

40

R26656

BLADE

ASSEMBLY - dozer pusher, 96" (2438.4 mm) wide, order R42525, Includes: Refs. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

PLATE - push

1шт.

40

R31857

BLADE

ASSEMBLY - dozer pusher, 104" (2641.6 mm) wide, order R42526, Includes: Refs. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

PLATE - push

1шт.

40

R34238

BLADE ASSEMBLY - dozer pusher, 116" (2946.4 mm) wide, Includes: Refs. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

PLATE - push

1шт.

40

R32612

MOLDBOARD

BLADE ASSEMBLY - dozer pusher, 124" (3149.6 mm) wide, Includes: Refs. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

PLATE - push

1шт.

42

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-3/4" (44.45 mm) ID x 1-1/2" (38.1 mm)

2шт.

Late production plates do not use bushings on LH side.

1шт.

43

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1-3/4" (44.45 mm) ID x 1" (25.4 mm)

8-1шт.

Late production plates do not use bushings on LH side.

1шт.

44

D33054

BUSHING

- 1-3/4" (44.45 mm) ID x 1-5/8" (41 mm)

1-2шт.

Late production plates do not use bushings on LH side.

1шт.

45

R26655

BUSHING

- 1-3/4" (44.45 mm) ID x 1-7/8" (48 mm)

1-2шт.

Late production plates do not use bushings on LH side.

1шт.

46

R26567

BLADE

- cutting end, standard, uses 4 bolts

2шт.

47

R31855

EDGE, CUTTING

BLADE - cutting, RH end, heavy duty, (With 5 Bolt Holes)

1шт.

48

R31854

EDGE, CUTTING

BLADE - cutting, LH end, heavy duty, (With 5 Bolt Holes)

1шт.

49

D29981

BLADE

- center, cutting, 96" (2438.4 mm) models, uses 18 bolts

1шт.

49

R22973

KNIFE

BLADE - cutting, center, 104" (2641.6 mm) models, uses 20 bolts

1шт.

49

R34126

EDGE, CUTTING

BLADE - cutting, center, 116" (2946.4 mm) models, uses 23 bolts

1шт.

49

R32043

NO LONGER SERVICED

BLADE - cutting, center, 124" (3149.6 mm) models, uses 25 bolts

1шт.

50

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4", grade 8

1шт.

51

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

52

25-1010

NUT,5/8"-11, G5

1шт.
