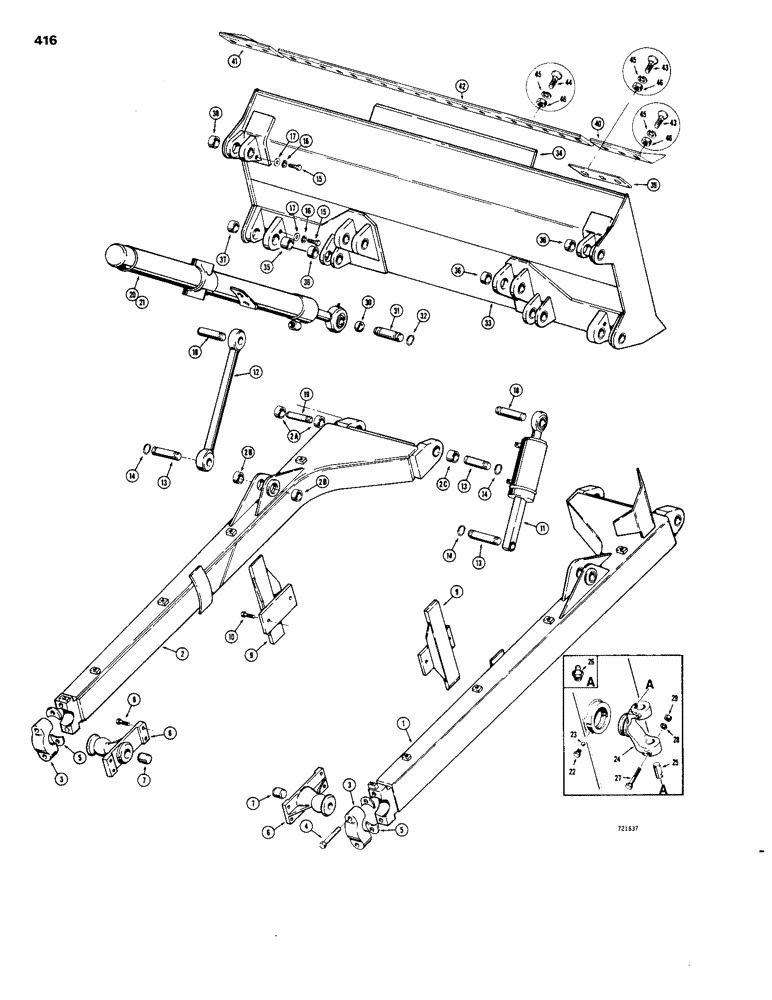

Запчасти Case 1150B (416) - TILT DOZER MECHANICAL PARTS, MODELS WITH TILT HYDRAULIC LINES ON RH PUCH BEAM (05) - UPPERSTRUCTURE CHASSIS

1

R26593

BEAM ASSY.

BEAM - push, RH, use R35276 kit, Includes: Refs. 2A - 2C

1шт.

Part of Kit P/N R35276, service R26593 beam with R34292 beam, Fig. 419 Refs. 1, 6 - 12, 26, 17 & 32

1шт.

2

R26590

BEAM - push, LH, use R35275 kit, Includes: Refs. 2A - 2C

1шт.

Part of Kit P/N R35275, service R26590 beam with R34291 beam, Fig. 419, Refs. 2, 6 - 12, 16, 17 & 32

1шт.

2a

D49287

BUSHING

- outer, R26593 and R26590 beams

2шт.

2b

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- cylinder mount, R26593 and R26590 beams

2шт.

2c

D40089

BUSHING

- inner, R26593 and R26590 beams

1шт.

3

R26564

CAP

- push beam

2шт.

4

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex, 1" - 8 NC x 4", grade 8

4шт.

5

R26586

SHIM,.030" Thk

(.762 mm) .030" Thk

1шт.

6

R26589

TRUNNION

- push, Includes: Ref. 7

2шт.

7

D51043

PIN - dowel

1шт.

8

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

9

R26579

BRACKET

- rub

2шт.

10

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

11

REF

INSTRUCTION

CYLINDER - tilt, Figs. 286 and 288

1шт.

12

R37276

STRUT

- moldboard

1шт.

13

R26724

AXLE PIN

PIN - mounting

4шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

8шт.

15

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

4шт.

18

R26726

PIN

- mounting, strut and cylinder

2шт.

19

R26723

PIN

- mounting, moldboard

2шт.

20

REF

INSTRUCTION

CYLINDER - LH lift, Figs. 272 - 278

1шт.

21

REF

INSTRUCTION

CYLINDER - RH lift, Figs. 272 - 278

1шт.

22

D28481

PLUG

- special

2шт.

23

211-17

BALL,3/4" Dia

- trunnion retaining

50шт.

24

D36175

YOKE

- trunnion, lift cylinder

2шт.

25

D36176

PIN,38.1mm OD x 63.5mm L

- mounting, trunnion

4шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

6шт.

27

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

28

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

30

R36587

ALTERNATOR

SPACER - cylinder rod

4шт.

31

R26725

PIN,152.4mm OD x 44.45mm L

- Mounting, cylinder

2шт.

32

D25280

SNAP RING,#175, Ext

RING, Snap, #175, Ext

4шт.

33

R26036

BLADE

ASSEMBLY - dozer, order R42561, Includes: Refs. 34 - 38

1шт.

33

R26656

BLADE

ASSEMBLY - dozer pusher, order R242525, Includes: Refs. 34 - 38

1шт.

34

D51141

PLATE - pusher, R26656 blade assembly only (Replaced NSS)

1шт.

35

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-3/4" (44 mm) ID x 1-1/2" (38 mm)

2шт.

36

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1-3/4" (44 mm) ID x 1" (25 mm)

10шт.

37

D33054

BUSHING

- 1-3/4" (44 mm) ID x 1-5/8" (41 mm)

2шт.

38

R26655

BUSHING

- 1-3/4" (44 mm) ID x 1-7/8" (47 mm)

2шт.

39

R26567

BLADE

- end, cutting, standard

2шт.

40

R31855

EDGE, CUTTING

BLADE - end, cutting, RH, heavy duty (With 5 Bolt Holes)

1шт.

41

R31854

EDGE, CUTTING

BLADE - end, cutting, LH, heavy duty (With 5 Bolt Holes)

1шт.

42

D29981

BLADE

- center, cutting

1шт.

43

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4", grade 8

6шт.

44

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

18шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

45

25-1010

NUT,5/8"-11, G5

24шт.

R35276

KIT

- service R26593 beam with R34292 beam, Fig. 418, Refs. 1, 6 -12, 26, 17 & 32

1шт.

R35275

KIT

- service R26590 beam with R34291 beam, Fig. 418, Refs. 2, 6 - 12, 16, 17 & 32

1шт.
