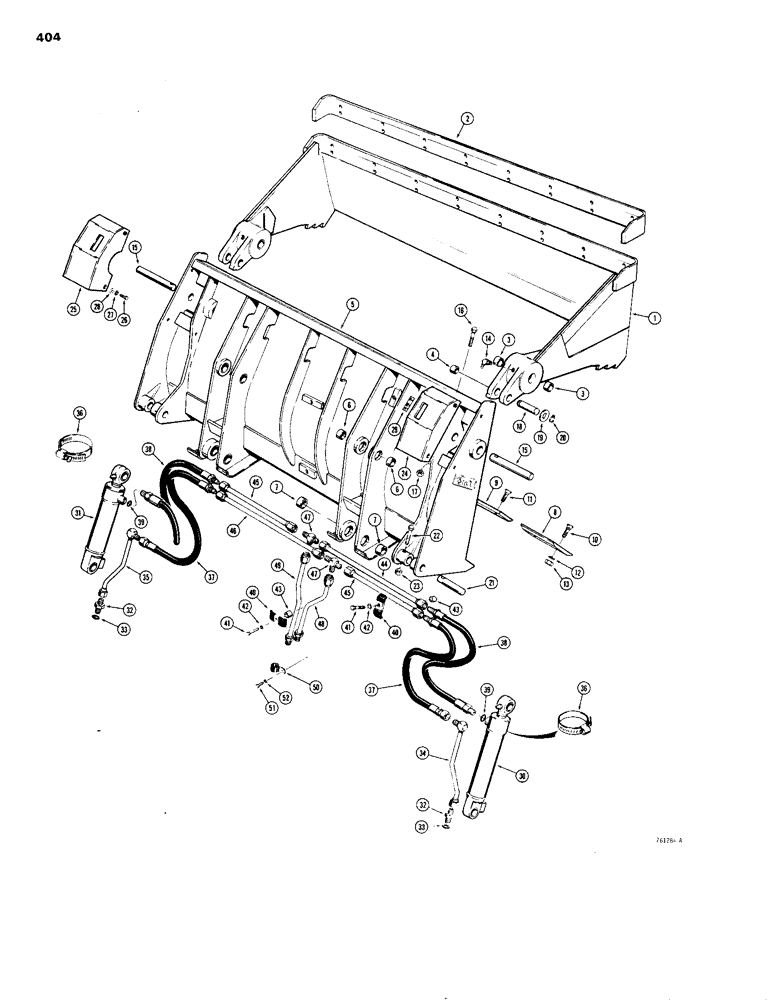

Запчасти Case 1150B (404) - 4-IN-1 BUCKET (05) - UPPERSTRUCTURE CHASSIS

R25494

BUCKET ASSEMBLY - with hydraulics, machinery item, Includes: Refs. 1 - 23

1шт.

R25493

BUCKET ASSEMBLY - complete, machinery item, Includes: Refs. 1 - 4

1шт.

1

R30011

CLAMSHELL BUCKET

CLAM - bucket

1шт.

WELDED BLADE ON BACK OF R30011 CLAM IS R53329

1шт.

2

R29987

BLADE

- one piece

1шт.

3

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- clam pivot

4шт.

4

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- cylinder pivot

4шт.

5

R25492

BLADE

MOLDBOARD - bucket, Includes: Refs. 6 & 7

1шт.

6

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- upper

4шт.

7

R26958

BUSHING

- lower

4шт.

8

D50492

BLADE

- moldboard, end

2шт.

9

D50497

BLADE

- moldboard, center

1шт.

10

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

BOLT - plow, 3/4" - 10 NC x 2-3/4"

4шт.

11

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

BOLT - plow, 3/4" - 10 NC x 2-3/4"

11шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

15шт.

13

25-1012

NUT,3/4"-10, G5

15шт.

14

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

15

D50491

PIN

- pivot

2шт.

16

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8" - 16 NC x 4-1/2"

2шт.

17

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

2шт.

18

D38481

PIN

- rod eye

2шт.

19

95-28

WASHER,1 7/8" x 4" x .179"

- flat

4шт.

20

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

21

D50490

PIN

- cylinder eye

2шт.

22

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

23

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

2шт.

24

R29976

GUARD

- cylinder, RH

1шт.

25

R29975

GUARD

- cylinder, LH

1шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

27

92-8

LOCK WASHER,1/2"

8шт.

28

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

29

321-1706

DECAL

- clam position indicator

1шт.

30

REF

INSTRUCTION

CYLINDER - RH, clam, Figs. 268 and 270

1шт.

31

REF

INSTRUCTION

CYLINDER - LH, clam, Figs. 268 and 270

1шт.

32

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

D51306

TUBE

- RH cylinder, closed end

1шт.

35

D51304

TUBE

- LH cylinder, closed end

1шт.

36

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube

2шт.

37

D27073

HOSE

- lower, 26" (660 mm) long

2шт.

38

D51320

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

- upper, 26" (660 mm) long

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

D40236

CLAMP

- tube

3шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

3шт.

42

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

43

D33552

BUSHING

SPACER - clamp

3шт.

44

R31355

TUBE,0.625" OD x 21.2" L

- RH upper

1шт.

45

D51258

TUBE

- RH lower and LH upper

2шт.

46

D51254

TUBE

- LH lower

1шт.

47

218-595

TEE,7/8"-14, 37 Degree

- male

2шт.

48

R25380

TUBE

- hydraulic, RH vertical

1шт.

49

R25398

TUBE

- hydraulic, LH vertical

1шт.

50

49885

CLAMP

- hose

2шт.

51

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

52

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.
