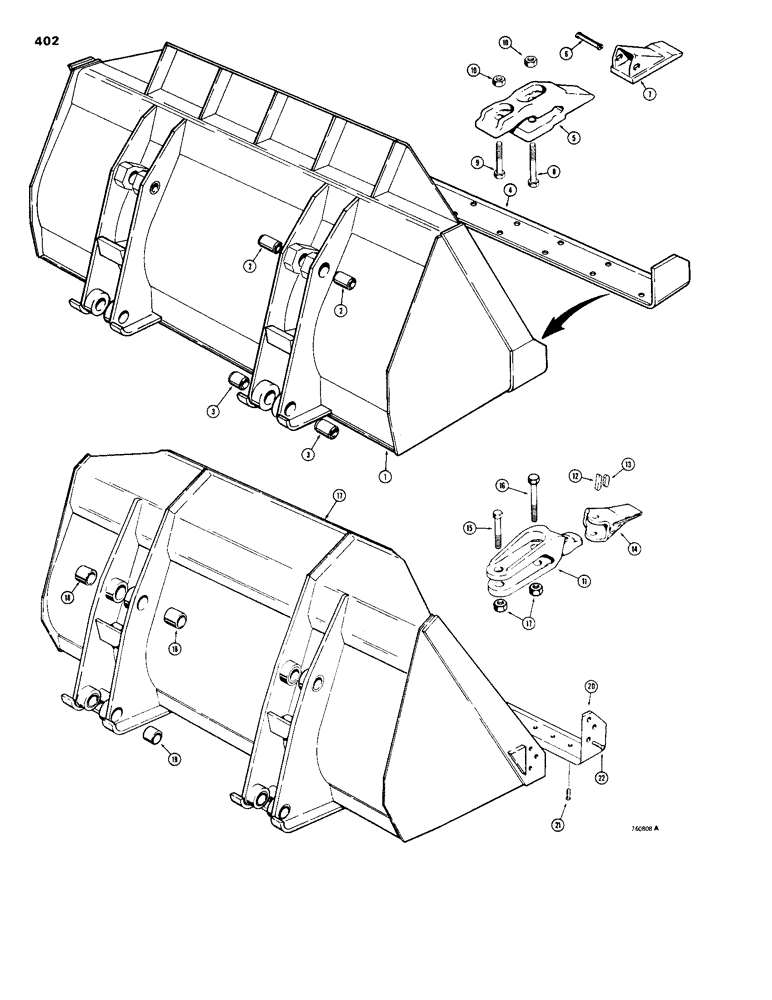

Запчасти Case 1150B (402) - LOADER BUCKETS, 1-3/4" CUBIC YARD BUCKET, (1.306 CUBIC METER) (05) - UPPERSTRUCTURE CHASSIS

1

R26990

BUCKET ASSEMBLY - complete, machinery item, Includes: Refs. 2 - 4

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- bucket, upper

4шт.

3

R26958

BUSHING

- bucket, lower

4шт.

4

R29987

BLADE

EDGE - cutting

1шт.

NLS

NO LONGER SERVICED

- bucket, H & L, Includes: Refs. 5 - 7

8шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

6

L32090

PIN

FLEX PIN - tooth, bucket

1шт.

7

L32089

POINT

- tooth, bucket

1шт.

8

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8" - 11 NC x 3-1/2", grade 8, bucket teeth

8шт.

9

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8" - 11 NC x 2-3/4", grade 8, bucket teeth

8шт.

10

131-1137

NUT,5/8"-11, GC

- hex, self lock, 5/8" - 11 NC, bucket teeth

16шт.

R35708

TOOTH

ASSEMBLY - heavy duty, bucket, Includes: Refs. 11 - 14

8шт.

11

NSS

NOT SOLD SEPARAT

SHANK, bucket teeth

1шт.

12

R31916

PIN

- tooth, bucket

1шт.

13

R31917

KEY

LOCK - pin, bucket teeth

1шт.

14

R35707

TOOTH

POINT - tooth, bucket

1шт.

15

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8" - 11 NC x 3", grade 8, bucket teeth

8шт.

16

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8" - 11 NC x 2-1/2", bucket teeth

8шт.

17

131-1137

NUT,5/8"-11, GC

- hex, self lock, 5/8" - 11 NC, bucket teeth

16шт.

17

R27877

BUCKET ASSEMBLY - complete, machinery item, teeth, Includes: Refs. 18 - 22

1шт.

18

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- upper, 2 cubic yard bucket (1.529 cubic meter)

4шт.

19

R26958

BUSHING

- lower, 2 cubic yard bucket (1.529 cubic meter)

4шт.

20

D39398

BLADE

EDGE - cutting, 2 cubic yard bucket (1.529 cubic meter)

1шт.

21

46-836

RIVET,Csk, 1/2" x 2 1/4"

- countersunk head, 1/2" x 2-1/4", 2 cubic yard bucket (1.529 cubic meter)

22шт.

22

46-840

RIVET,Pop, 1/2" x 2 1/2"

- countersunk head, 1/2" x 2-1/2", 2 cubic yard bucket (1.529 cubic meter)

6шт.
