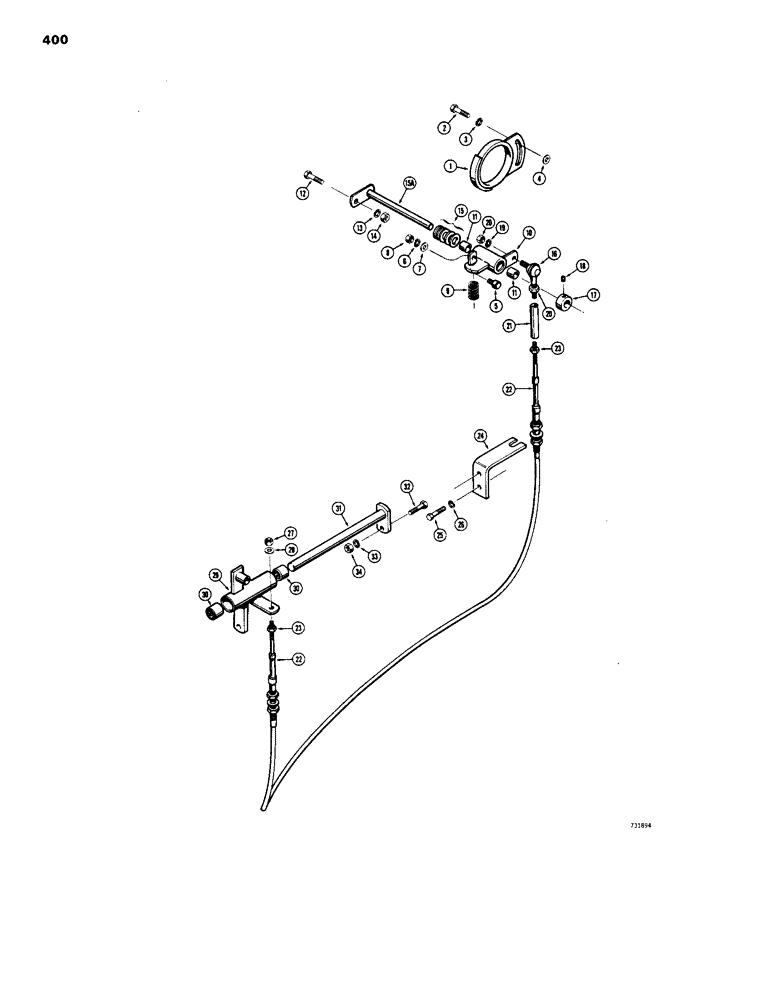

Запчасти Case 1150B (400) - LOADER HEIGHT CONTROL (05) - UPPERSTRUCTURE CHASSIS

1

R27857

TUBE - height, adjustment

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

1шт.

4

195-33

WASHER,1/2"

- flat, 1/2"

7шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

FOLLOWER - cam

1шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

7

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

9

R27874

SPRING

- height, actuator

1шт.

10

R27856

LEVER

- actuating, Includes: Ref. 11

1шт.

11

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING - lever

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

195-41

WASHER,5/8"

- flat, 5/8"

5шт.

15a

R27861

SHAFT

TUBE - lever mounting

1шт.

16

R27899

BALL

JOINT - 1/4" - 28 NF

1шт.

17

D43620

COLLAR

- locking

1шт.

18

83-5

SCREW - set, 5/16" - 18 NC x 5/16"

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

21

R27869

CONNECTOR, ELEC

CONNECTOR - cable

1шт.

22

R27872

CABLE

- height control, Includes: Ref. 23

1шт.

23

129-27

NUT,Hex, #10 - 32

- hex, no. 10 - 32 NF

2шт.

24

R27812

BRACKET

- cable retaining

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

27

129-27

NUT,Hex, #10 - 32

- hex, no. 10 - 32 NF

1шт.

28

195-12

WASHER,#10

- flat, 3/16"

1шт.

29

R27537

ROCKER

ARM - height control, Includes: Ref. 30

1шт.

30

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BUSHING - arm

2шт.

31

R27844

SHAFT

- rocket arm

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
