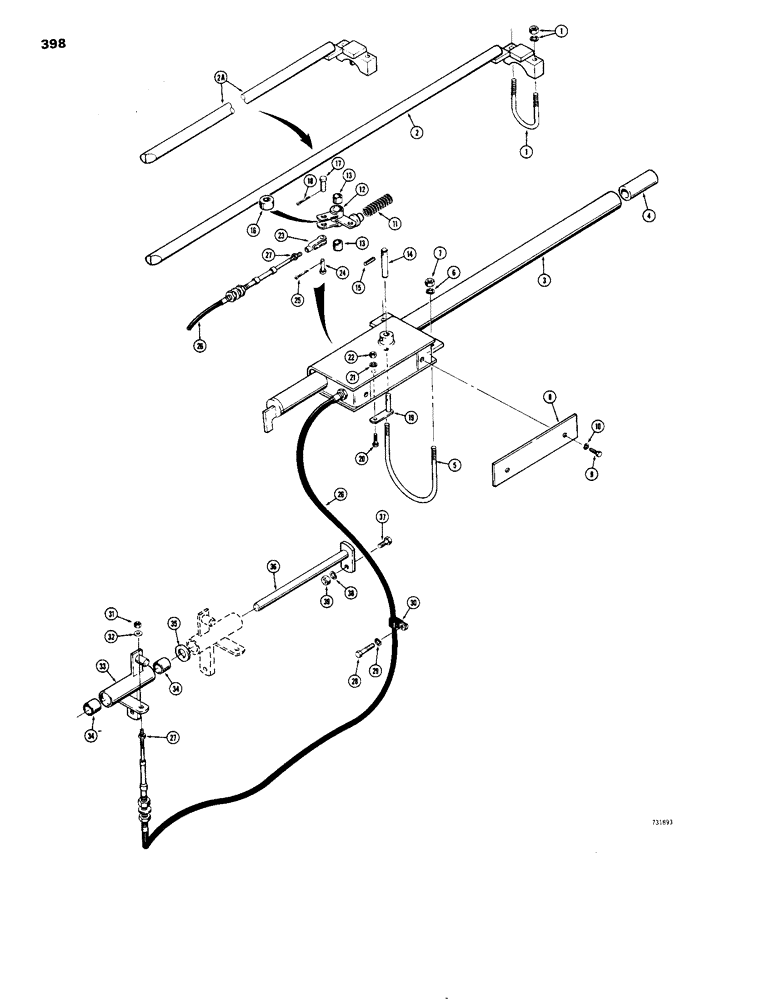

Запчасти Case 1150B (398) - LOADER RETURN-TO-DIG (05) - UPPERSTRUCTURE CHASSIS

1

R29760

BOLT

CLAMP ASSEMBLY - U-bolt

1шт.

2

R27826

SHAFT

ROD - return-to-dig, early production - no pin in block

1шт.

2a

R31484

SHAFT

ROD - return-to-dig, late production, has pin in block, requires hole in cylinder piston rod

1шт.

3

R27839

TUBE

- rod retaining, Includes: Ref. 4

1шт.

4

R27838

BEARING

BUSHING - tube

1шт.

5

R27843

HARDWARE

BOLT - U

1шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

R27842

PLATE

- access

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

R27870

SPRING

- return-to-dig actuating

1шт.

12

R27814

ARM

- actuating, return-to-dig, Includes: Ref. 13

1шт.

13

R24874

BUSHING

- arm

2шт.

14

R27840

PIN

- arm retaining

1шт.

15

138-61

LOCK PIN,1/8" x 1", Slotted

PIN - roll, 3/32" x 3/4"

1шт.

16

R27841

ROLLER

- actuating arm

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

18

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

19

R27820

PIN

- stop

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

25-104

NUT,1/4"-20, G5

1шт.

23

213-1

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable

1шт.

24

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis

1шт.

25

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - hair

1шт.

26

R27871

CABLE

- return-to-dig, Includes: Ref. 34

1шт.

27

129-27

NUT,Hex, #10 - 32

- hex, no. 10 - 32 NF

2шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

1шт.

30

49859

CLAMP

- cable

1шт.

31

129-27

NUT,Hex, #10 - 32

- hex, no. 10 - 32 NC

1шт.

32

195-12

WASHER,#10

- flat, 3/16"

1шт.

33

R27534

ROCKER

- return-to-dig

1шт.

34

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BUSHING - rocker arm

2шт.

35

195-45

WASHER,3/4"

1шт.

36

R27844

SHAFT

- rocker arm, see Fig. 315 for valve connecting parts

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

38

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
