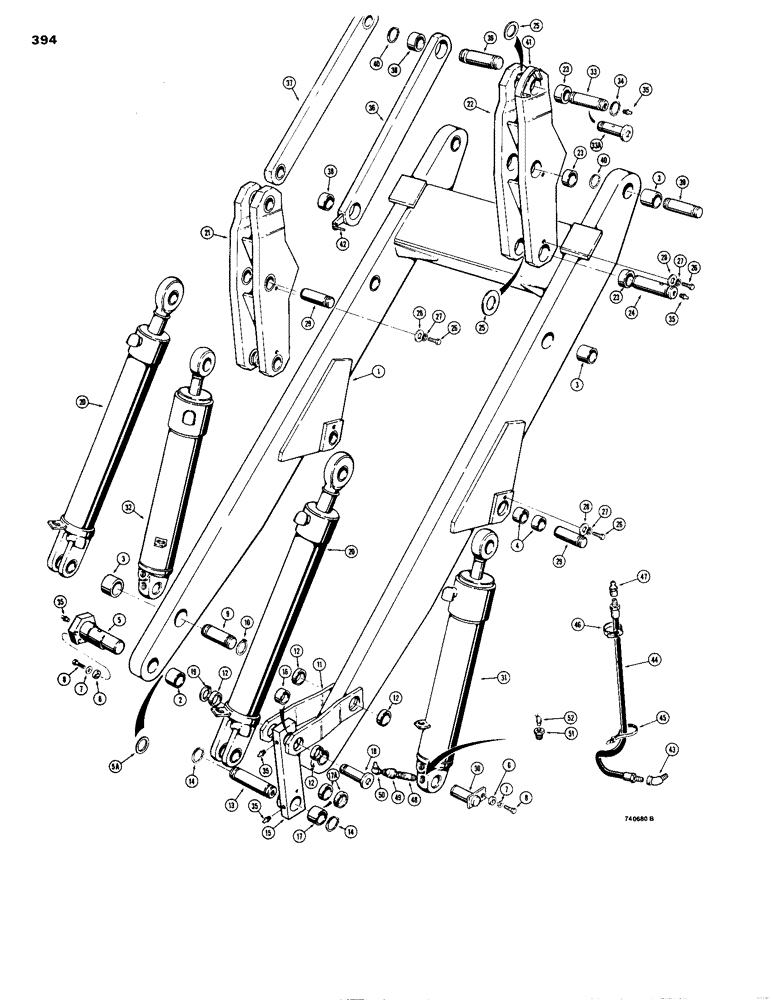

Запчасти Case 1150B (394) - LOADER MECHANICAL PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R39168

ARM ASSY.

FRAME - loader lift, Includes: Ref. 2 - 4A

1шт.

2

R27011

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

- frame

2шт.

3

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- frame

4шт.

4

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- frame

4шт.

4a

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame

4шт.

5

R27010

PIN

- hinge

2шт.

5a

L45897

SHIM

- 2-9/16" (65 mm) ID x 1/16" (1.5 mm) thick

1шт.

Part of shim kit P/N R36091

1шт.

5a

L41507

SHIM

- 2-1/2" (63.5 mm) ID x 11/64" (4.3 mm) thick

1шт.

Part of shim kit P/N R36091

1шт.

5a

L47706

WASHER

SHIM - 2-1/4" (57.15 mm) ID x 7/64" (2.7 mm) thick

1шт.

Part of shim kit P/N R36091

1шт.

6

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin

4шт.

7

D31328

WASHER

- special

4шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

9

R27060

PIN

- link to lift arm

2шт.

10

D26919

SNAP RING,#200, Ext

RING, Snap, #200, Ext

4шт.

11

R27145

LEVER

LINK - dump cylinder to lift arm

4шт.

12

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- lever

2шт.

13

R29924

PIN

- leveling arm to loader frame

2шт.

14

D36919

RING - retaining

4шт.

15

R27018

LINK - leveling, before sn 7303469, use R31809 for service, Serial Range: -7303469

2шт.

15

R31809

LINK

- leveling, Includes: Refs. 16 - 17A, Start Serial: 70303469

2шт.

16

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- R27108 and R31809 links, 1-1/2" (38 mm) wide

1шт.

17

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- R27018 link, 2-1/2" (63 mm) wide

1шт.

17a

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- R31809 link, 1-1/8" (28 mm) wide

2шт.

18

R27024

PIN

- bucket cylinder mounting

2шт.

19

D26919

SNAP RING,#200, Ext

RING, Snap, #200, Ext

2шт.

20

REF

INSTRUCTION

CYLINDER - bucket and feller buncher, Fig. 264 & 266

2шт.

21

R26996

LEVER

- bucket tilt, LH

1шт.

22

R26997

LEVER

- bucket tilt, RH, Includes: Ref. 23

1шт.

23

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- both levers

6шт.

24

R31984

PIN

- bucket lever to lift frame

2шт.

25

D37449

SHIM,.0747" Thk

- 2-1/32" (51 mm) ID x 1/16" (2 mm) thick

1шт.

Part of shim kit P/N R36091

1шт.

25

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

SHIM - 2-1/16" (52 mm) ID x 9/64" (4 mm) thick

1шт.

Part of shim kit P/N R36091

1шт.

26

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

28

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

6шт.

29

R27086

PIN

- cylinder rod retaining

4шт.

30

R30127

PIN

- lift cylinder to loader frame

2шт.

31

REF

INSTRUCTION

CYLINDER - R.H. lift, Fig. 260 & 262

1шт.

32

REF

INSTRUCTION

CYLINDER - L.H. lift, Fig. 260 & 262

1шт.

33

R27088

PIN

- dump link, use R31989

2шт.

33a

R31989

AXLE PIN

PIN - dump link

2шт.

34

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2-4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

6шт.

R36091

SHIM

KIT - shim, Includes Refs. 5A and 25

1шт.

36

R27164

LINK

- dump, RH

1шт.

37

R27020

LINK

- dump, LH, Includes: Ref. 38

1шт.

38

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- R27020 and R27164 link

2шт.

39

R27061

PIN

- bucket retaining

4шт.

40

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

8шт.

41

R27638

INDICATOR

- 4-in-1 bucket

1шт.

42

D51707

PIN

POINTER - 4-in-1 bucket

1шт.

43

221-401

ELBOW,45 Degree, 1/8"-27, NPT

FITTING - 45 degree, 1/8" NPT, late production

2шт.

44

R40124

HOSE

- 25" (1397 mm) long, late production

2шт.

45

R38237

STRAP

- tie, late production

2шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, late production

2шт.

47

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - straight, grease, 1/8" NPT, late production

2шт.

48

221-136

PIPE

NIPPLE - 1/4" NPT x 1-3/4", early production

2шт.

49

221-344

LUBE NIPPLE

FITTING - female, 1/4" NPT x 1/8" NPT, early production

2шт.

50

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8" NPT, early production

2шт.

51

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

FITTING - 1/4" NPT x 1/8" NPT, early production

2шт.

52

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8" NPT, early production

2шт.
