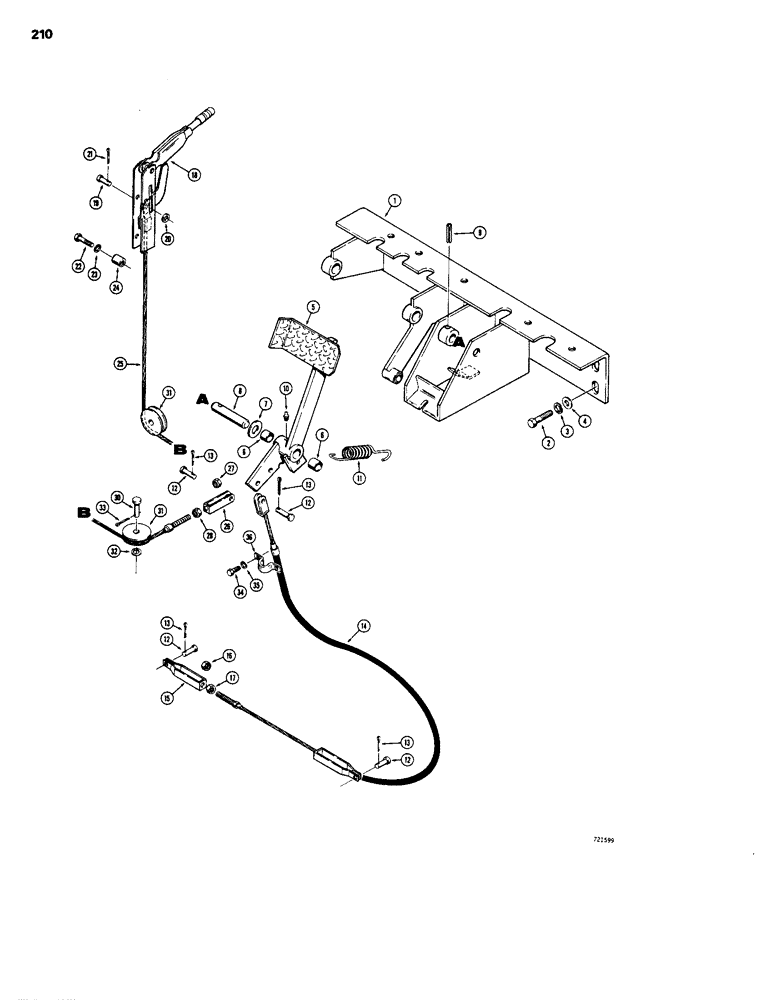

Запчасти Case 1150B (210) - MANUAL BRAKES (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

FRAME - manual brake mounting, see Fig. 208 for service

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

5шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

4

195-41

WASHER,5/8"

- plate, 5/8"

5шт.

5

R27485

PEDAL - manual brake

1шт.

6

R29752

BUSHING

- brake

2шт.

7

D35268

SHIM,1/32" Thk

(79 mm) 1/32" Thk

1шт.

8

R27501

SHAFT

- manual brake

1шт.

9

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

10

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT short

1шт.

11

R29843

SPRING

- pedal return

1шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

13

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

4шт.

REFERENCE

SPARE PART

ASSEMBLY - parking brake, Includes: Refs. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

CABLE - brake

1шт.

15

NSS

NOT SOLD SEPARAT

CLEVIS - cable

1шт.

16

129-122

NUT,5/16"-24, G5

1шт.

17

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

D40687

LEVER

BRAKE LEVER - manual brake, Includes: Refs. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER - manual brake

1шт.

19

D42458

PIN

- clevis

1шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

21

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

22

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

5/16"-18 NC x 1-1/2", grade 8

2шт.

23

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

24

D40685

SPACER

- manual brake

2шт.

R27494

CABLE

ASSEMBLY - manual brake, hand, Includes: Refs. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

CABLE - manual brake

1шт.

26

NSS

NOT SOLD SEPARAT

CLEVIS - cable

1шт.

27

129-122

NUT,5/16"-24, G5

1шт.

28

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

30

D42809

PIN

- clevis, 3/8"

2шт.

31

D32543

SHEAVE

- cable pulley

2шт.

32

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

33

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

2шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

36

R26118

CLAMP

- cable, brake

1шт.

Ref #14 and 25. part numbers are reversed.

1шт.
