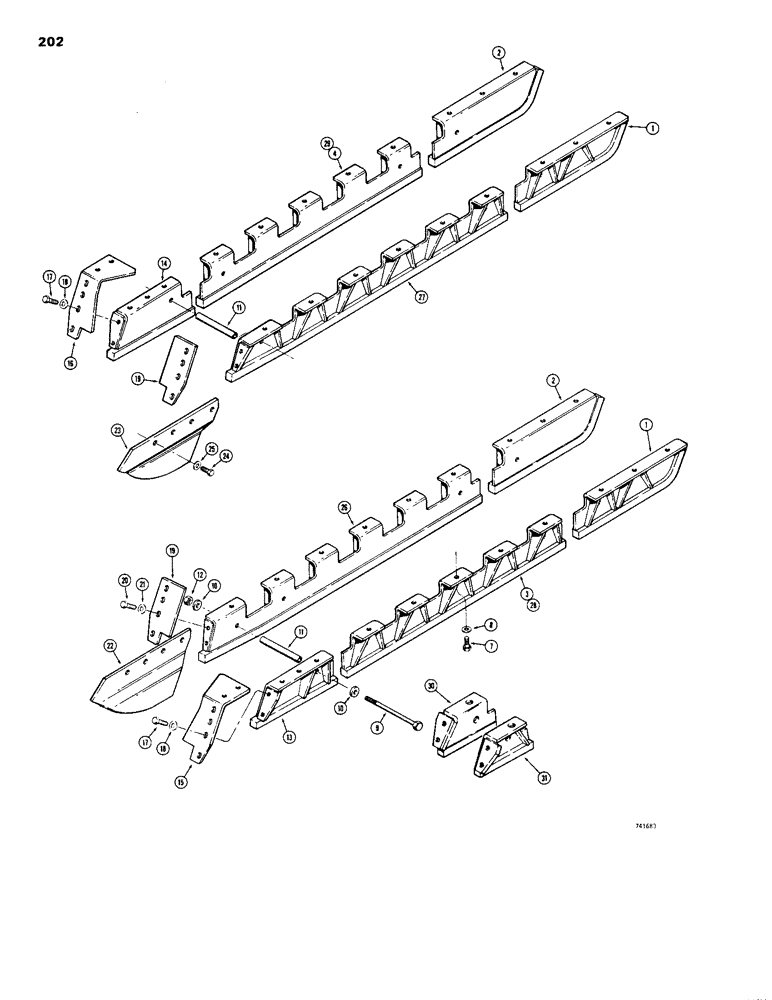

Запчасти Case 1150B (202) - TRACK GUIDE (ROCK GUARDS) (04) - UNDERCARRIAGE

1

R27543

GUARD

- rock, front, RH

2шт.

2

R27542

GUARD

- rock, front, LH

2шт.

3

R27547

GUARD

- rock, RH center, outer

1шт.

4

R27546

- rock, LH center, outer

1шт.

7

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

40шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

40шт.

9

15-12176

BOLT,Hex, 3/4" - 10 x 11"

HHCS - 3/4" - 10 NC x 11"

8шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (Replaced T53567)

16шт.

11

R27555

SPACER

- guards

8шт.

12

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self lock, 3/4" - 10 NC

8шт.

13

R27552

GUARD

- rock, RH rear, outer

1шт.

14

R27551

GUARD

- rock, LH rear, outer

1шт.

15

R27549

COVER

- guard, RH outer, 62" (1574.8 mm) gauge models

1шт.

15

R31859

COVER

- guard, RH outer, 74" (1879.6 mm)

1шт.

16

R27548

GUARD

COVER - guard, LH outer, 62" (1574.8 mm) gauge models

1шт.

16

R31858

COVER

- guard, LH outer, 74" (1879.6 mm) gauge models

1шт.

17

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

12шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

19

R46471

COVER

- guard, inner (Replaced R27450)

2шт.

20

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaced 13-1025) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

21

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

8шт.

22

R27554

GUARD

- rock, drive sprocket, RH, early production

1шт.

23

R27553

GUARD

- rock, drive sprocket, LH, early production

1шт.

24

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Early production Hex, 5/8"-11 x 1 3/4", G5, Full Thd

8шт.

25

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, early production

8шт.

26

R27545

GUARD ASSY.

GUARD rock, RH center, inner., early production

1шт.

Can be serviced with R27547 guard and R33944 guard

1шт.

27

R27544

GUARD

rock, LH center, inner., early production

1шт.

Can be serviced with R27546 guard and R33943 guard

1шт.

28

R27547

GUARD

- rock, RH center, inner, late production

1шт.

29

R27546

- rock, LH center, inner, late production

1шт.

30

R33944

GUARD

- rock, drive sprocket, RH, late production

1шт.

31

R33943

GUARD

- rock, drive sprocket, LH, late production

1шт.
