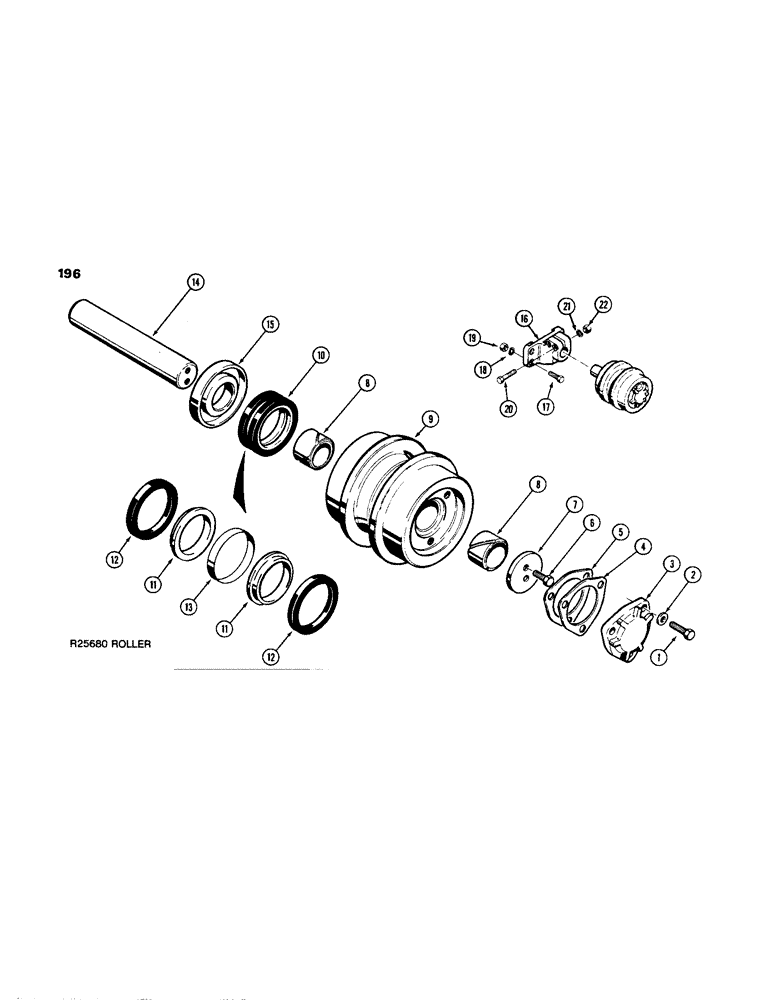

Запчасти Case 1150B (196) - R25680 TRACK CARRIER ROLLER, FOR I.D. - SEE ITEM 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

R25680

CARRIER

ROLLER - track carrier, Includes: Refs. 1 - 15

2шт.

1

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

2

D35288

WASHER

- copper

1шт.

3

R29288

COVER ASSY

COVER - roller

1шт.

4

D30384

SHIM,.010" Thk

(0.25 mm), Brown .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(.13 mm ), Blue .005" Thk

1шт.

6

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- 3/8" - 16 NC x 3/4", G8

2шт.

7

D30382

WASHER

- thrust

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

R25683

CARRIER

HUB - roller

1шт.

10

R39273

SEAL

- face, Includes: Refs. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Refs. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

R25685

SHAFT

- roller

1шт.

15

D35265

COLLAR

BUSHING - thrust

1шт.

16

R27143

BRACKET

- carrier roller, mount for both rollers

2шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Mount for both rollers Hex, 5/8"-11 x 2 1/2", G5

8шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Mount for both rollers 5/8"

8шт.

19

25-1010

NUT,5/8"-11, G5

Mount for both rollers 5/8"-11, G5

8шт.

20

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2", mount for both rollers

4шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Mount for both rollers 5/8"

4шт.

22

25-1010

NUT,5/8"-11, G5

Mount for both rollers 5/8"-11, G5

4шт.

R33594

ROLLER

- track carrier, Includes: Refs. 1 - 12

2шт.
