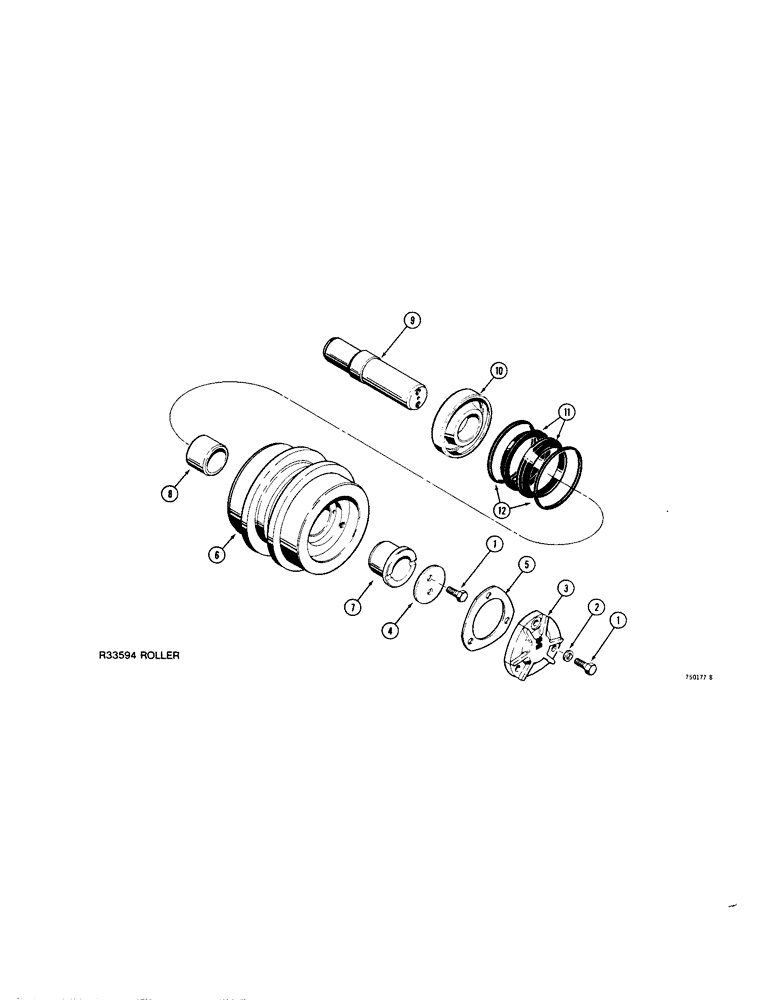

Запчасти Case 1150B (196[2]) - R33594 TRACK CARRIER ROLLER FOR IDENTIFICATION - SEE ITEM 3 OF ILLUSTRATION INTERTRAC ROLLER (04) - UNDERCARRIAGE

1

513-803

BOLT

HHCS - 12 mm x 1.75 x 20 mm, grade 8.8

5шт.

2

D35288

WASHER

- copper

1шт.

3

R33602

CAP

- roller

1шт.

4

R33601

RETAINER

- washer

1шт.

5

R33606

GASKET

- cap

1шт.

R33596

HUB CARRIER

HUB ASSEMBLY - roller, Includes: Refs. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

7

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- roller

1шт.

8

R33597

BUSHING

- roller

1шт.

R33600

SHAFT

ASSEMBLY, Includes: Refs. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

10

R33599

RETAINER

- seal

1шт.

R33607

SEAL

- face, Includes: Refs. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.
