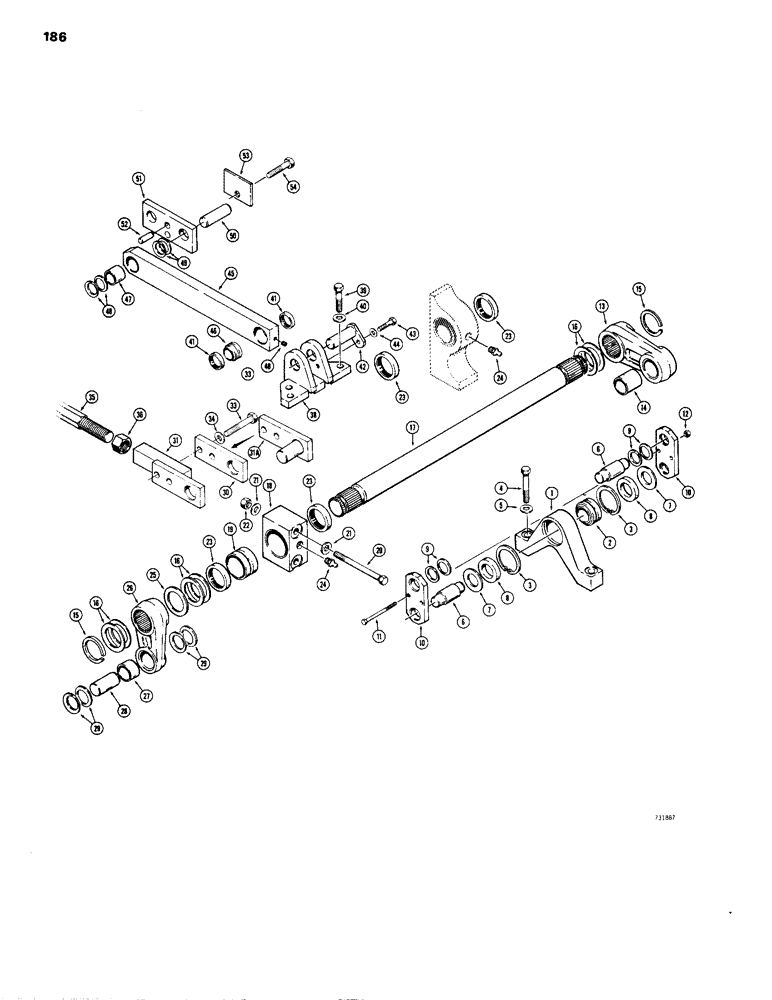

Запчасти Case 1150B (186) - SUSPENSION SYSTEM - DOZER MODELS, EQUALIZER BAR, TORSION BAR & GUIDES (04) - UNDERCARRIAGE

R27176

MOUNTING PARTS

MOUNT ASSEMBLY - equalizer bar, Includes: Refs. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - mount

1шт.

2

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

ASSEMBLY - self aligning

1шт.

3

D31898

SNAP RING,2.812", Int, #283

Ring, Snap, 2.812", Int, #283

2шт.

4

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

6

R27183

PIN

- link retaining

4шт.

7

R27273

WASHER

- special

4шт.

8

R28020

WASHER

SEAL - washer

4шт.

9

R27180

DISC

SEAL - washer (Replaced R21780)

8шт.

10

R39268

LINK

S - equalizer

4шт.

11

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

4шт.

12

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

4шт.

13

R27169

LEVER

- equalizer, front, Includes: Ref. 14

2шт.

14

R27170

BUSHING

- lever

1шт.

15

R18674

RING

- retaining

4шт.

16

R18559

SHIM,.062" Thk

1шт.

17

R27179

BAR

- torsion

2шт.

18

R27173

BRACKET

ASSEMBLY - torsion bar mounting, Includes: Ref. 19

2шт.

19

R26633

BUSHING

- bracket

1шт.

20

15-12104

BOLT

HHCS - 3/4" - 10 NC x 6-1/2"

4шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

22

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 10 NC

4шт.

23

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

- rubber

8шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.

25

74298

WASHER

SPACER - torsion bar

2шт.

26

R27171

LEVER

- equalizer, Includes: Ref. 27

2шт.

27

R27172

BUSHING

- lever

2шт.

28

R27188

PIN

- R27190 plate retaining, use R31478 plate for service

2шт.

29

R27181

WASHER

SEAL - washer

8шт.

30

R27190

PLATE

- use R31478 plate for service

2шт.

31

R27577

YOKE

PLATE - RH, Serial Range: -7304957

1шт.

31

R36220

YOKE

PLATE - RH, tractor, Start Serial: 7304957

1шт.

31a

R31478

PIN

PLATE AND PIN ASSEMBLY - equalizer

2шт.

32

R27576

YOKE

PLATE - LH, Serial Range: -7304957

1шт.

32

R36221

PLATE

- LH, tractor, Start Serial: 7304957

1шт.

33

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

35

R27185

ROD

- equalizer, 62" gauge (1575 mm) models before tractor sn 7304957, use R36221, R36220, R36230 and (2) R31478, Serial Range: -7304957

1шт.

35

R27185

ROD

- equalizer, 62" gauge (1575 mm) models before tractor sn 7304957, use R36221, R36220, R36230 and (2) R31478, Serial Range: -7304957

1шт.

(32.8" long)

1шт.

35

R31361

ROD

- equalizer, 74" gauge (1880 mm) models before tractor sn 7304957, use R36221, R36220, R36231 and (2) R31478

1шт.

35

R36230

ROD

- equalizer, 62" gauge (1573 mm) models tractor, Start Serial: 7304957

1шт.

35

R36231

ROD

- equalizer, 74" gauge (1880 mm) models tractor, Start Serial: 7304957

1шт.

(44.8" long)

1шт.

36

25-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4" - 12 NF, RH thread

1шт.

37

129-332

SPECIAL NUT,1 1/4"-12, G5, LH

Not shown 1 1/4"-12, G5, LH

1шт.

38

R40615

BRACKET

- lever mounting

2шт.

39

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

40

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

41

R27452

SEAL

- lever

4шт.

42

R27443

PIN

- lever retaining

2шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1"

2шт.

44

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

45

R27450

LEVER

- guide, 62" (1575 mm) gauge dozers

2шт.

45

R31268

LEVER

- guide, 74" (1880 mm) gauge dozers, Includes: Refs. 46 - 48

2шт.

46

L12570

BUSHING

- R27450 and R31268 levers

1шт.

47

R27270

BUSHING

- R27450 and R31268 levers

1шт.

48

181-417

SCREW,Sq Hd, 1/4" - 20 x 5/8", Oval Pt

- set, 1/4" - 20 NC x 5/8" R27450 and R31268 levers

1шт.

49

R27180

DISC

SEAL - washer

8шт.

50

R27438

PIN

- guide lever

2шт.

41

R27453

PLATE

- guide lever

1шт.

42

D38062

PIN

- dowel

1шт.

53

R27454

RETAINER

- pin

1шт.

54

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.
