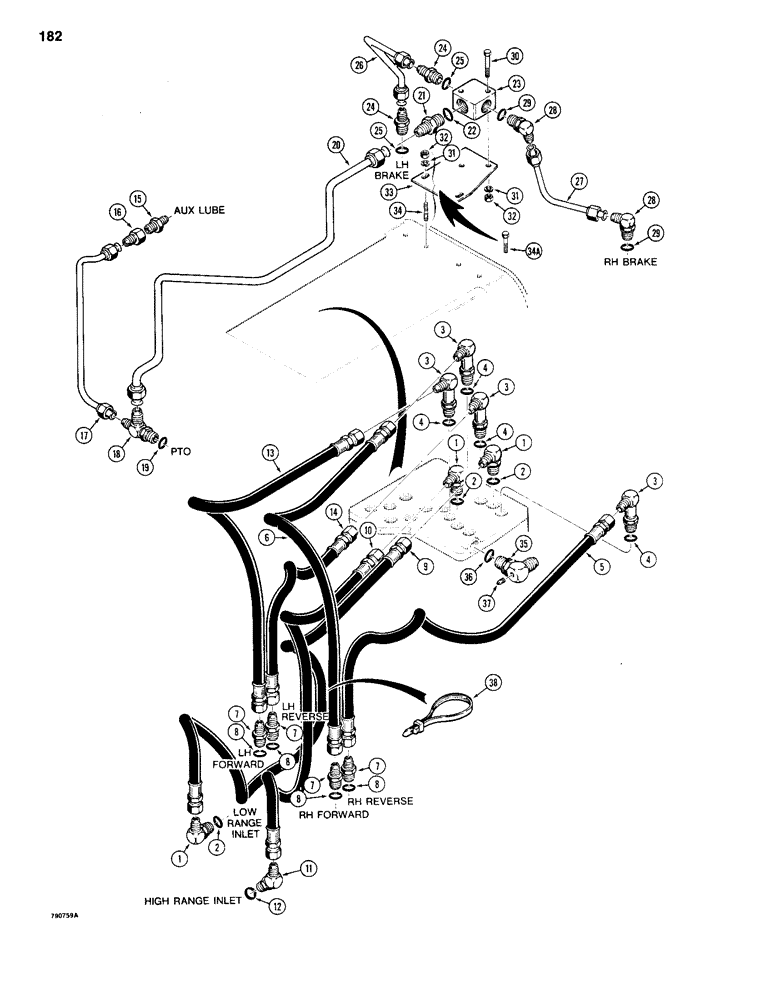

Запчасти Case 1150B (182) - TRANS. HYDRAULIC CIRCUITS, REAR OF TRANS. TO VALVE & BRAKES, G100422 TRANS., TRANS. SN 2806173 & AFT (03) - TRANSMISSION

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 2

3шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

3

R20739

FITTING

ELBOW - 90 degree, male, Includes: Ref. 3

4шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

5

G35438

HYDRAULIC HOSE,25mm ID x 2000mm L, SAE 100R1

6.35 mm ID x 508.00 mm, SAE 100R1

1шт.

6

G35436

HYDRAULIC HOSE,6.35 mm ID x 457.20 mm, SAE 100R1

6.35 mm ID x 457.20 mm, SAE 100R1

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 8

4шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

9

G35440

HYDRAULIC HOSE,6.35 mm ID x 736.60 mm, SAE 100R1

6.35 mm ID x 736.60 mm, SAE 100R1

1шт.

10

A51522

HYDRAULIC HOSE

HOSE - 24" (610 mm) long

1шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

13

G35437

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm , SAE 100R1

6.35 mm ID x 482.60 mm, SAE 100R1

1шт.

14

A50785

HYDRAULIC HOSE,6.35 mm ID x 558.80 mm, SAE 100R1

6.35 mm ID x 558.80 mm, SAE 100R1

1шт.

15

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - straight, male

1шт.

16

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

ADAPTER - straight, female and male

1шт.

17

G35432

TUBE,0.375" OD

- hydraulic

1шт.

18

A136165

FITTING

TEE - adjustable, Includes: Ref. 19

1шт.

19

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Tee

1шт.

20

A138892

TUBE

- hydraulic

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

23

A136162

FITTING

MANIFOLD - hydraulic

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 25 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

26

G102306

TUBE,0.5" OD

- hydraulic, left-hand

1шт.

27

G102109

TUBE,0.5" OD x 6.3, 5.79" L

- hydraulic, right-hand

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 29

2шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

31

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2-4шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-4шт.

33

G100533

BRACKET

- manifold mounting

1шт.

34

G102128

BOLT

- 3/8" - 16 NC x 1-9/16", no longer used, order 13-620 bolts

2шт.

34a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used without lock washer and nut Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

35

R30286

FITTING

ELBOW - 90 degree, special, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

37

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon

TIE STRAP - hose, nylon

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
