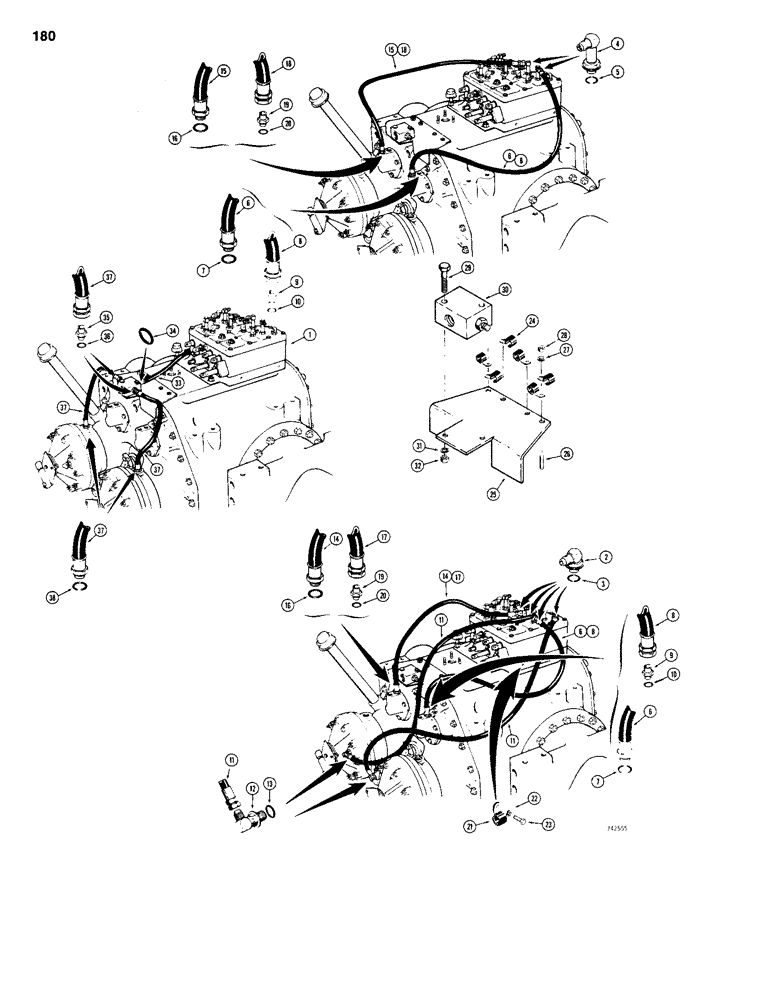

Запчасти Case 1150B (180) - TRANS. HYDRAULIC CIRCUITS, VALVE TO FRONT OF TRANS., A50590 & G35200 TRANS.USED BEFORE S/N 2806173 (03) - TRANSMISSION

1

REF

INSTRUCTION

VALVE ASSEMBLY - see Fig. 170 for correct assembly and components

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

R20739

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 5

2шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

6

A50793

HOSE

- 36" (914 mm) long, male and female ends, use A51523 hose and 218-5057 adapter

2шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, A50793 hose

2шт.

8

A51523

HYDRAULIC HOSE

HOSE - 36" (914 mm) long

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, A51523 hose, Incl. Ref. 10

2шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

A50790

HYDRAULIC HOSE,0.25" ID x 44.00", SAE 100R1

0.25" ID x 44.00", SAE 100R1

2шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

A50792

HOSE

- 33" (838 mm) long, male and female ends, use A50789 hose and 218-5057 adapter

1шт.

15

A50794

HOSE

- 39" (991 mm) long, male and female ends, use A51458 hose and 218-5057 adapter

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, A50792 and A50794 hoses

2шт.

17

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

6.35 mm ID x 812.80 mm, SAE 100R1

1шт.

18

A51458

HYDRAULIC HOSE

HOSE - 40" (1016 mm) long, female ends

1шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, A50789 and A51458 hoses, Incl. Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

21

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

1шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

6шт.

25

A50787

BRACKET

- manifold mounting

1шт.

26

A50362

STUD

- 3/8" - 16 NC x 1-9/16"

4шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

29

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 2-1/8"

2шт.

30

A50786

FITTING

MANIFOLD - brake lubrication

1шт.

31

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

33

A50791

HYDRAULIC HOSE,0.375" ID x 42.00", SAE 100R1

- Includes Ref. 34 0.375" ID x 42.00", SAE 100R1

1шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 36

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

37

A50795

HYDRAULIC HOSE

HOSE - 17" (432 mm) long, Includes: Ref. 38

2шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

2шт.
