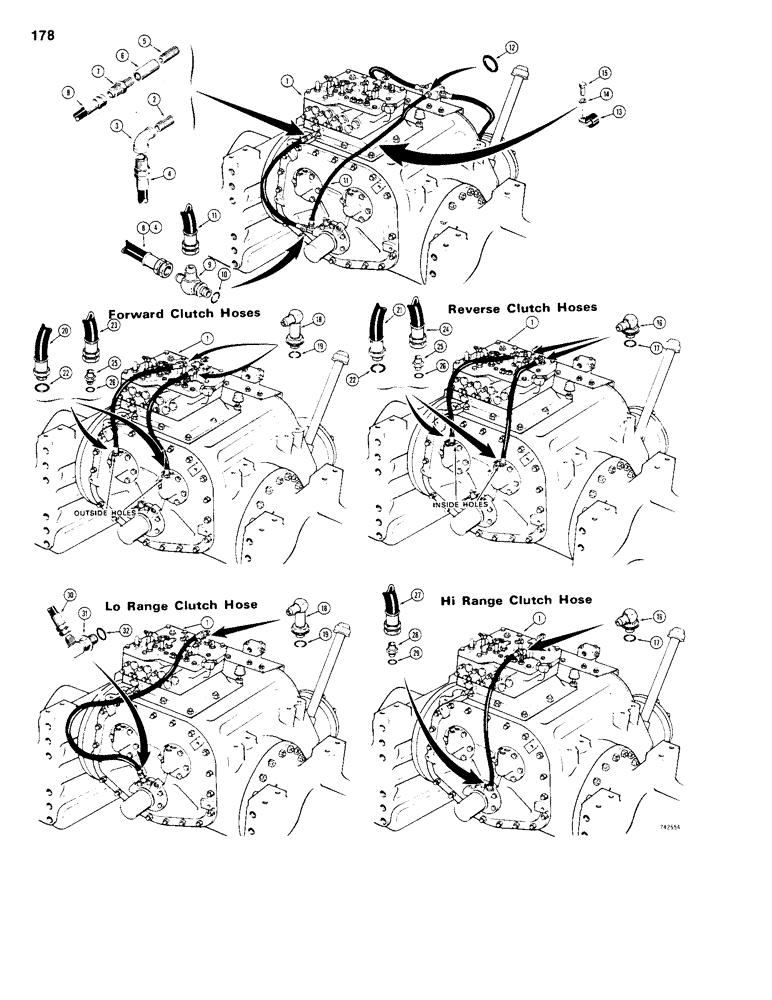

Запчасти Case 1150B (178) - TRANS. HYDRAULIC CIRCUITS, VALVE TO REAR OF TRANS., A50590 & G35200 TRANS.USED BEFORE S/N 2806173 (03) - TRANSMISSION

1

REF

INSTRUCTION

VALVE ASSEMBLY - see figure 170 for the correct assembly and components

1шт.

2

221-113

NIPPLE - 1/8" x 4"

1шт.

3

221-1743

ELBOW,90 Degree, Pipe, 1/8" x 1/4" NPT

STREET ELBOW - 90 degree

1шт.

4

A50296

HYDRAULIC HOSE,6.35 mm ID x 495.30 mm, SAE100R1

6.35 mm ID x 495.30 mm, SAE 100R1 - Male and female ends

1шт.

5

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" x 3/4"

1шт.

6

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

7

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight, male 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

8

A50785

HYDRAULIC HOSE,6.35 mm ID x 558.80 mm, SAE 100R1

- Auxiliary lube, Long female ends 6.35 mm ID x 558.80 mm, SAE 100R1

1шт.

9

A50788

FITTING

TEE - adjustable, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

11

A50791

HYDRAULIC HOSE,0.375" ID x 42.00", SAE 100R1

- Lube, Includes Ref. 12 0.375" ID x 42.00", SAE 100R1

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

13

R14668

CLAMP

- hose

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 17

3шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

18

R20739

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 19

3шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

20

A50796

HOSE

- 21" (533 mm) long, male and female ends, use A50785 hose and 218-5057 adapter

2шт.

21

A50797

HOSE

- 24" (610 mm) long, male and female ends, use A51522 hose and 218-5057 adapter, Includes: Ref. 22

2шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, A40796 and A50797 hoses

4шт.

23

A50785

HYDRAULIC HOSE,6.35 mm ID x 558.80 mm, SAE 100R1

- Female ends 6.35 mm ID x 558.80 mm, SAE 100R1

2шт.

24

A51522

HYDRAULIC HOSE

HOSE - 24" (610 mm) long, female ends

2шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, A50785 and A51522 hose, Incl. Ref. 26

4шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

27

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

6.35 mm ID x 812.80 mm, SAE 100R1

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 29

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

30

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

6.35 mm ID x 812.80 mm, SAE 100R1

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 32

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.
