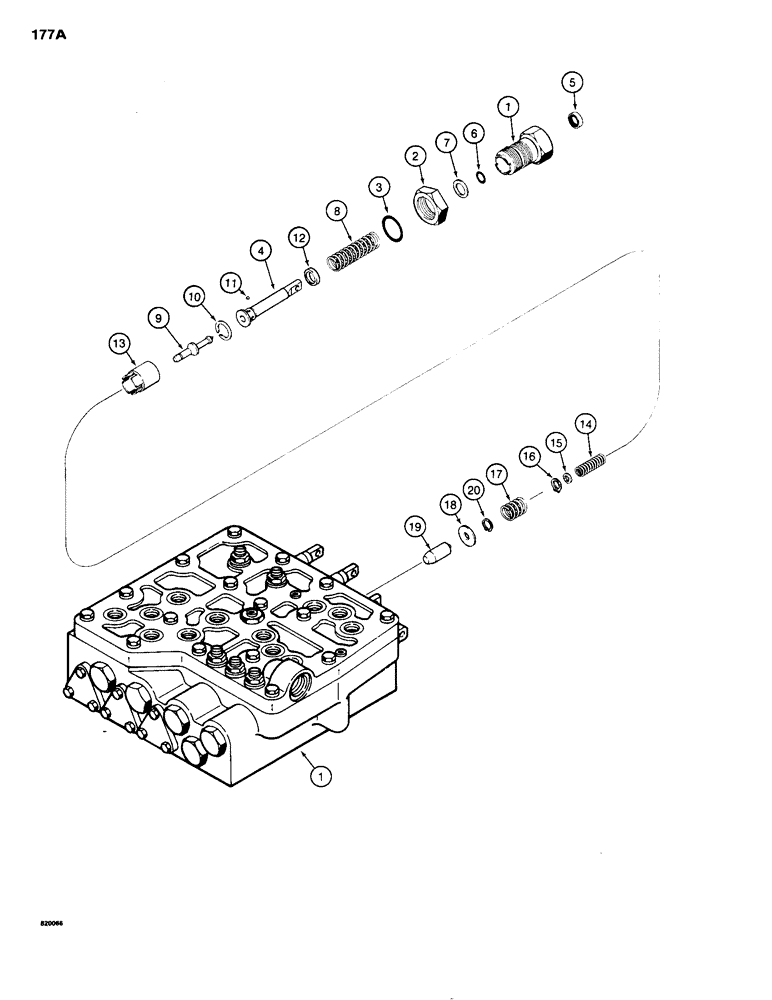

Запчасти Case 1150B (177A) - TRANSMISSION CONTROL VALVE, G103916 MODULATOR VALVE, ADJUSTING PLUG (ITEM 1) HAS A SEPRATE UNIT (03) - TRANSMISSION

G103916

VALVE

ASSEMBLY - modulator, see Refs. 1 & 2 for identification

1шт.

Part of control valve overhaul kit P/N G101836 and G101835 kit; contains parts on Figs. 171 - 177B

1шт.

1

G104525

PLUG

- adjusting

1шт.

2

218-1281

LOCK NUT,Blkhd, 1 5/16"-12

NUT - hex, jam, 1-5/16" - 12 NF

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adjusting plug

1шт.

Part of control valve seal kit P/N G101835 and contain parts on Fig. 171 - 177B

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - actuator

1шт.

5

A50768

WIPER SEAL

- rod

1шт.

Part of control valve seal kit P/N G101835 and contain parts on Fig. 171 - 177B

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- rod

1шт.

Part of control valve seal kit P/N G101835 and contain parts on Fig. 171 - 177B

1шт.

7

G103920

WASHER

- seal retainer

1шт.

8

A50770

SPRING

- actuator rod

1шт.

9

G103922

PLUNGER

- valve

1шт.

10

49481

SNAP RING,0.866", Int, #87

RING, Snap, , actuator rod 0.866", Int, #87

1шт.

11

221-254

BALL - steel, 5/32" (4 mm) diameter

4шт.

12

G103919

RETAINER

- ball

1шт.

13

A50777

PISTON

- modulator

1шт.

14

A50826

SPRING

- plunger

1шт.

15

A50773

WASHER

- spring seat

1шт.

16

G10659

SNAP RING,#31, Ext

RING - Snap, , plunger #31, Ext

1шт.

17

G104417

SPRING

- large, poppet

1шт.

18

G103921

SPRING SEAT

RETAINER - spring

1шт.

19

G103925

PLUNGER

POPPET - modulator

1шт.

20

A7111

SNAP RING,#25, Ext

RING - Snap, , poppet #25, Ext

1шт.

G101835

GASKET KIT

KIT - control valve seal, Includes Refs. 3, 5 and 6 contains parts on Fig. 170 - 176

1шт.

G101836

VALVE

KIT - control valve overhaul, Includes P/N G103916; contains parts on Fig. 170 - 176

1шт.
