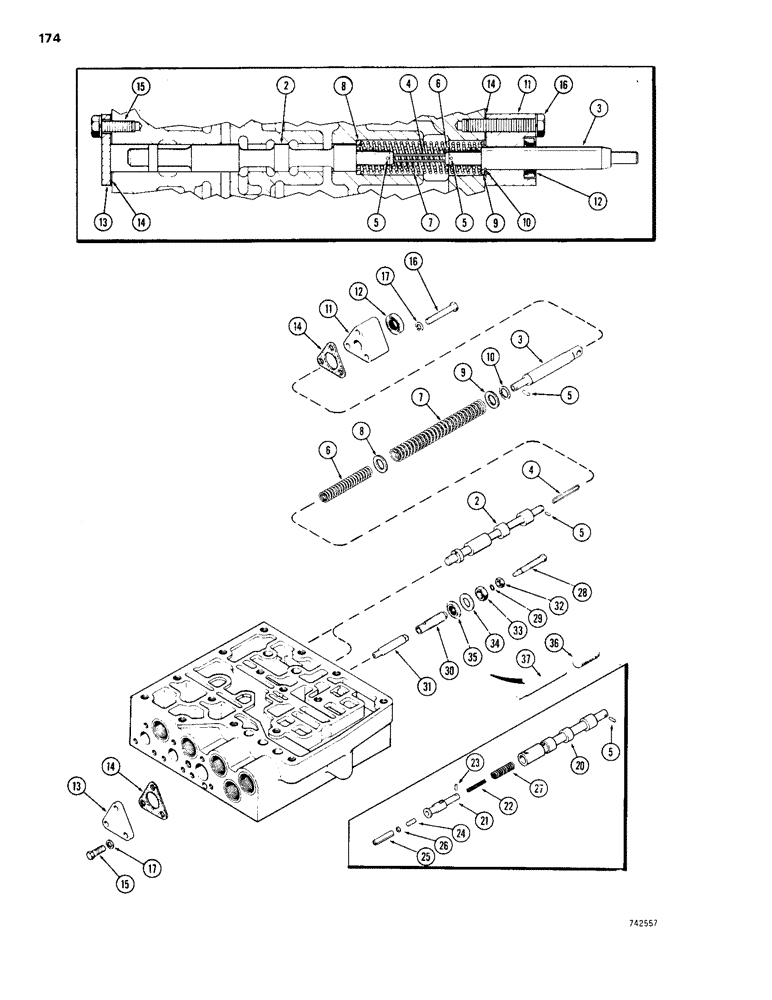

Запчасти Case 1150B (174) - TRANSMISSION CONTROL VALVE, BRAKE SPOOLS (03) - TRANSMISSION

1

A51833

SPOOL

ASSEMBLY - brake, not shown, Includes: Refs. 2 - 10

2шт.

2

A51834

SPOOL

- brake

1шт.

3

A51835

ROD

- brake actuator

1шт.

4

A51836

BRACKET

CLIP - brake spool return

1шт.

Part of overhaul kit P/N G101836 plus G101835 kit and Figs.171 - 177

1шт.

5

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

2шт.

Part of overhaul kit P/N G101836 plus G101835 kit and Figs.171 - 177

1шт.

6

A51839

SPRING

- brake actuator

1шт.

Part of overhaul kit P/N G101836 plus G101835 kit and Figs.171 - 177

1шт.

7

A50743

SPRING

- brake spool return

1шт.

Part of overhaul kit P/N G101836 plus G101835 kit and Figs.171 - 177

1шт.

8

A50741

WASHER

- lower

1шт.

9

A50740

WASHER

- upper

1шт.

10

L42909

SNAP RING,#62, .586", Ext

- actuator rod

1шт.

11

A50751

HOUSING

- actuator rod

2шт.

12

G105700

OIL SEAL

OIL SEAL - actuator rod

2шт.

Part of seal kit P/N G101835 and Figs. 171 - 177

1шт.

13

A50752

PLATE

- brake spool cover

2шт.

14

A50753

GASKET

- cover plate and rod housing

4шт.

Part of seal kit P/N G101835 and Figs. 171 - 177

1шт.

15

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

17

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

12шт.

20

A51279

SPOOL - brake, for identification, order A51833 spool

2шт.

21

A51277

SPOOL ASSEMBLY - brake, used with A51279 spool, order A51833 spool, Includes: Refs. 22 - 27

2шт.

22

NSS

NOT SOLD SEPARAT

SPRING - spool assembly, inner

1шт.

23

138-2

LOCK PIN,1/16" x 1/4", Slotted

PIN - 1/16" x 1/4", Slotted

1шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER - spring

1шт.

25

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

26

195-2

WASHER - flat, 1/32"

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - reaction spool, outer

2шт.

28

A50823

NEEDLE

VALVE - needle, use A142437, A50733 and 176-396, retard valve

1шт.

29

A50758

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

- needle valve (Replaced A50768), retard

1шт.

Part of seal kit P/N G101835 and Figs. 171 - 177

1шт.

30

A50759

SLEEVE

- use A142437, A50733 and 176-396, retard valve

1шт.

31

A50760

SEAT

- valve, use A142437, A50733 and 176-396, retard valve

1шт.

32

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, retard valve

1шт.

33

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 20 NF, retard valve

1шт.

34

195-33

WASHER,1/2"

- flat, , retard valve 1/2"

1шт.

35

A50733

SEAL

- valve, retard

1шт.

Part of seal kit P/N G101835 and Figs. 171 - 177

1шт.

36

176-396

SET SCREW,1/2"-13 x 1 1/4", Slotted

SCREW - set, slotted, 1/2" - 20 NF x 1-1/4", retard valve

1шт.

37

A142437

FITTING

MODULATOR - orifice, retard valve

1шт.

G101835

GASKET KIT

KIT - seal, Includes: Refs. 12, 14, 29 & 35 also see Fig. 170 - 177A, retard valve

1шт.

G101836

VALVE

KIT - overhaul, Includes Refs. 4, 5, 6 & 7 plus G101835 kit, also see Fig.170 - 176, retard valve

1шт.
