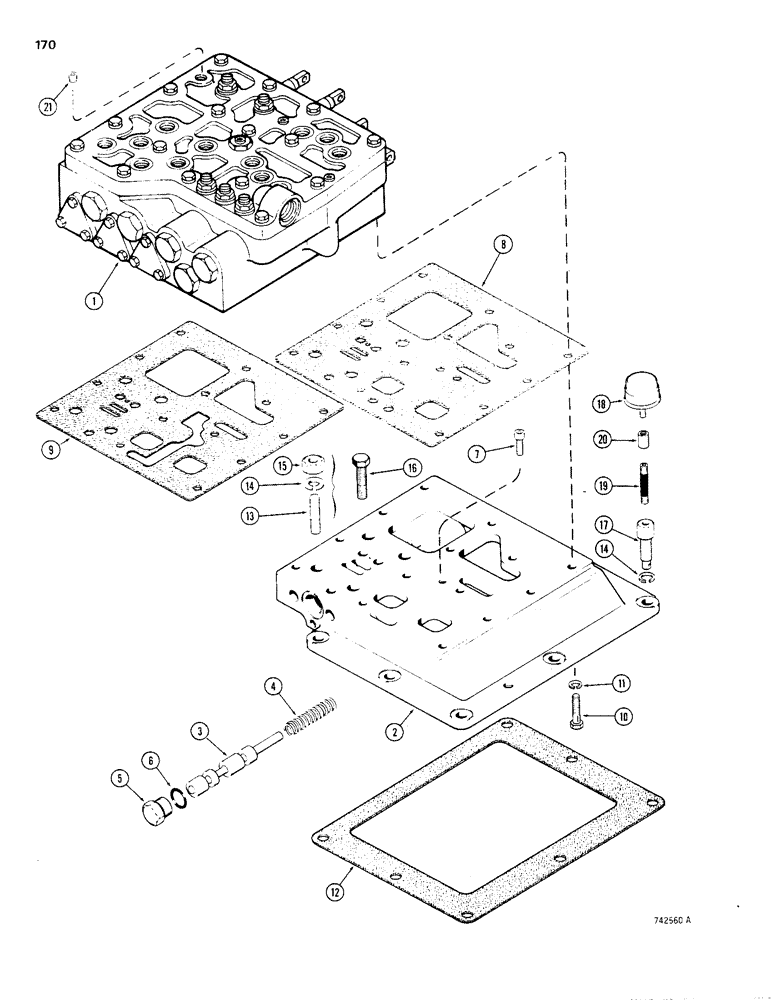

Запчасти Case 1150B (170) - TRANSMISSION CONTROL VALVE AND BASE (03) - TRANSMISSION

G105225

VALVE

CONTROL VALVE AND BASE ASSEMBLY - transmission, Includes: Refs.1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL VALVE ASSEMBLY - parts list Fig. 172 - 177A

1шт.

A136287

BASE

ASSEMBLY - control valve, Includes: Refs. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BASE - valve

1шт.

3

A50782

SPOOL

- equalizer

1шт.

4

A50783

SPRING

- equalizer spool

1шт.

Part of control valve overhaul kit P/N G101836

1шт.

5

86625138

PLUG,7/18" - 14

Spool port, Includes Ref. 6 Hex Soc, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

Part of control valve seal kit P/N G101835

1шт.

7

A51838

LOCK BOLT,1/4" - 20 x 0.75", Gr 8

SCREW - hex, socket head, self-locking, 1/4" - 20 NC x 3/4"

1шт.

Part of control valve overhaul kit P/N G101836

1шт.

8

G103502

GASKET

- control valve to base, no longer used, order G105098 gasket

1шт.

9

G105098

GASKET

- control, Serial Range: valve-base

1шт.

Part of control valve seal kit P/N G101835

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

11

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

14шт.

12

A50717

GASKET

- control valve base to transmission housing

1-2шт.

Part of control valve seal kit P/N G101835

1шт.

13

G102110

BOLT

- 1/2" - 13 NC x 1-7/8", if used

6шт.

14

92-8

LOCK WASHER,1/2"

if used 1/2"

7шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

6шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6-7шт.

17

A51601

BOLT

- breather

1шт.

18

A27173

BREATHER

- transmission housing

1шт.

19

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - 1/4" NPT x 2"

1шт.

20

221-336

COUPLING,Pipe, 1/4" NPT

- breather to nipple Pipe, 1/4" NPT

1шт.

21

221-841

PLUG

- square head, 1/4" NPT, if used

1шт.

G101835

GASKET KIT

KIT - control valve seal, Includes Refs. 6, 9 and 12

1шт.

G101836

VALVE

KIT - control valve overhaul, Includes Refs. 4 and 7 plus G101835 kit

1шт.
