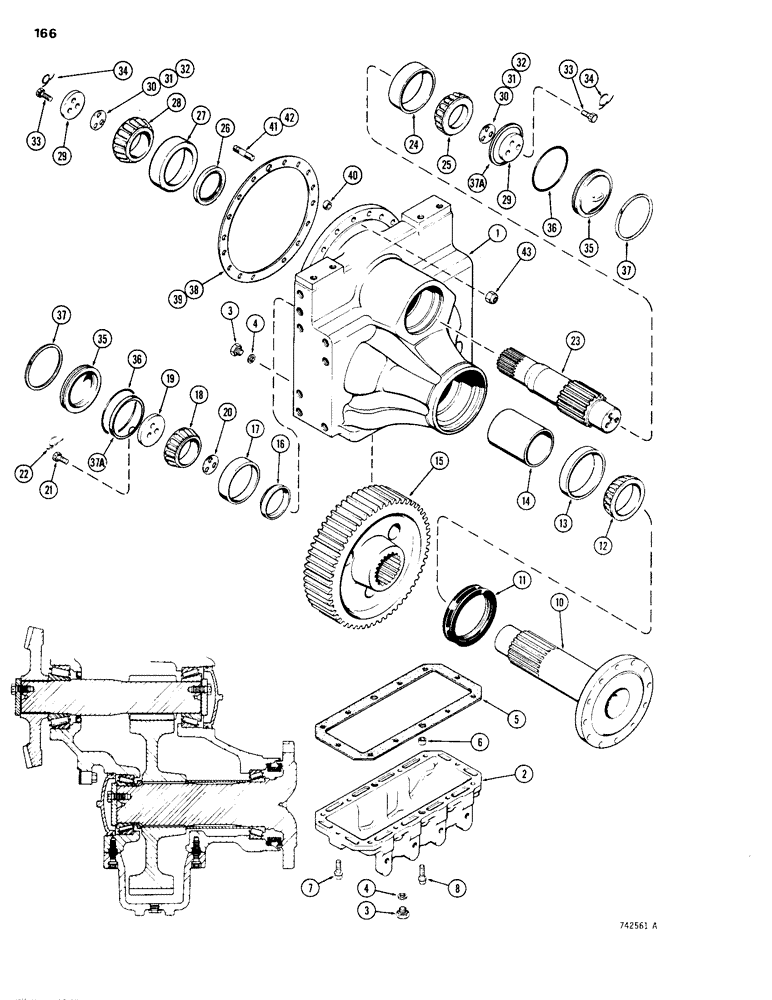

Запчасти Case 1150B (166) - TRANSMISSION FINAL DRIVE, ITEM 35 RETAINED BY SNAP RING (03) - TRANSMISSION

A50805

NO LONGER SERVICED

FINAL DRIVE ASSEMBLY - order G101538, see Fig.168, Includes: Refs. 1 - 37A

2шт.

1

A50711

HOUSING

- final drive, use G101677 kit

1шт.

Part of converts A50805 final drive to G101538 final drive, kit P/N G101677 and Figs.1 & 30 - 33 on Fig. 169

1шт.

2

A51632

COVER

- bottom

1шт.

3

A140222

PLUG

- fill and drain

2шт.

4

G102141

SEALING WASHER

WASHER - copper, replaces felt gasket

2шт.

Part of seal kit P/N G101833

1шт.

5

A50540

GASKET

- bottom, Serial Range: cover-housing

1шт.

Part of seal kit P/N G101833

1шт.

6

A50011

SLEEVE

- dowel

2шт.

7

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2"

10шт.

8

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1-3/4"

2шт.

10

G50468

FILTER BOWL

- final drive

1шт.

11

A50547

SEAL

FACE SEAL - final drive shaft

1шт.

Part of seal kit P/N G101833

1шт.

12

L33736

ROLLER BEARING

TAPERED ROLLER BEARING - outer

1шт.

13

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - tapered roller bearing, outer

1шт.

14

A50720

SPACER

- final drive gear, front

1шт.

15

G100294

GEAR

- 62 external and 46 internal teeth

1шт.

16

A50721

SPACER

- final drive gear, rear

1шт.

17

A50324

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

18

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

TAPERED ROLLER BEARING - inner

1шт.

19

G102001

PLATE

- end

1шт.

Part of seal kit P/N G101833

1шт.

20

G101997

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

20

G101998

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

20

G101999

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of seal kit P/N G101833

1шт.

21

R19888

SCREW

BOLT - drilled hex head, 9/16" - 18 NC x 1-1/4"

3шт.

22

391-804

ELECTRICAL WIRE

WIRE - tie

1шт.

Part of seal kit P/N G101833

1шт.

23

G35217

SHAFT

PINION SHAFT - final drive

1шт.

24

L30821

BEARING CUP

- tapered roller bearing, outer

1шт.

25

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

- outer

1шт.

26

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

OIL SEAL - pinion shaft

1шт.

Part of seal kit P/N G101833

1шт.

27

A50713

BEARING ASSY

CUP - tapered roller bearing, inner

1шт.

28

A50714

BEARING ASSY

TAPERED ROLLER BEARING - inner

1шт.

29

G102106

PLATE

- end

2шт.

Part of seal kit P/N G101833

1шт.

30

G101997

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

31

G101998

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

32

G101999

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of seal kit P/N G101833

1шт.

33

R19888

SCREW

BOLT - drilled hex head, 1-1/16" - 18 NF x 1-1/4"

6шт.

34

391-804

ELECTRICAL WIRE

WIRE - tie

2шт.

Part of seal kit P/N G101833

1шт.

35

A51155

PLUG

COVER - pinion shaft, retained by snap ring

2шт.

36

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- plug

2шт.

Part of seal kit P/N G101833

1шт.

37

A50814

SNAP RING,#550, 5.693, Int, Spiral

- plug

2шт.

37a

G101005

SPACER

- cover, if used

2шт.

38

A50726

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

39

A50725

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

40

A50727

SLEEVE

- dowel, if used

2шт.

41

A50592

STUD

- 5/8" - 16 NC x 2-3/4"

34шт.

42

A50593

STUD

- 5/8" - 16 NC x 3", if used

2шт.

43

232-41110

NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC

34шт.

G101834

DRIVE

KIT - overhaul, Refs. 12, 13, 16, 17, 18, 24, 25, 27, 28 and G101833 kit

1шт.

The G101834 Kit, does not includes: Ref #16. It should be deleted from the description of this kit.

1шт.

G101833

KIT

- seal, Includes: Refs. 4, 5, 11, 19, 20, 22, 26, 29, 30, 31, 32, 34, 36, 38 & 39

1шт.

G101677

HOUSING

KIT - converts A50805 final drive to G101538 final drive, Includes: Ref. 1 & 30 - 33 on Fig.168

1шт.
