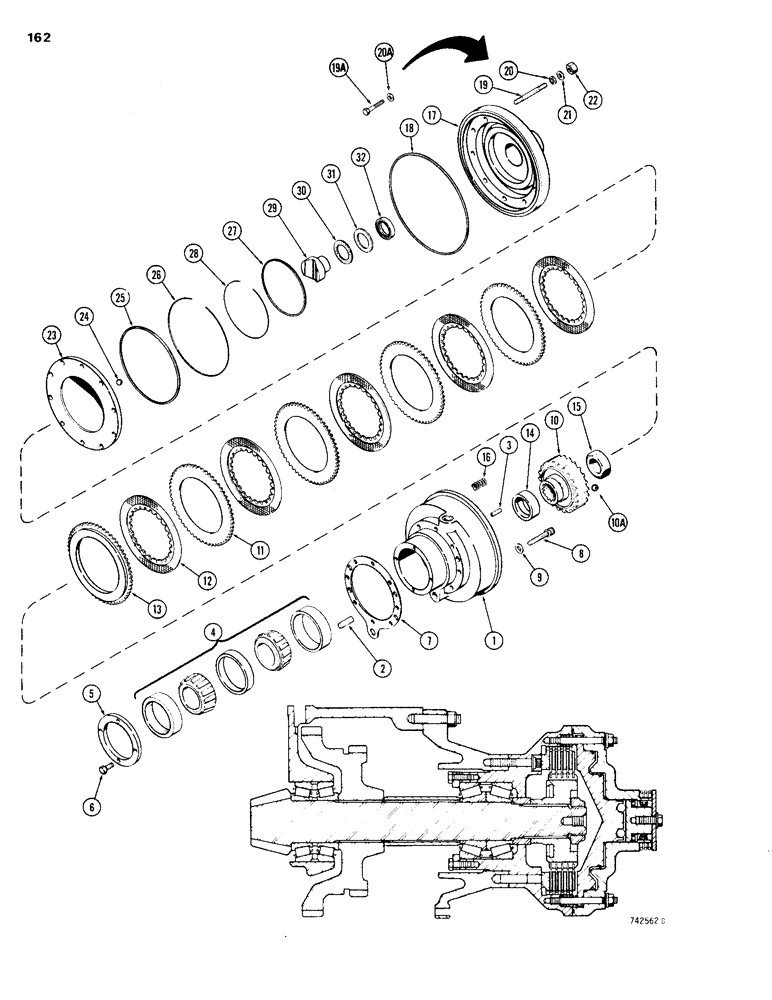

Запчасти Case 1150B (162) - TRANSMISSION BRAKES (03) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - brakes, see figure 148 for service

2шт.

2

70205

PIN

DOWEL - 1/2" x 1-1/2", also shown on Fig. 148

4шт.

3

A50801

TUBE

- oil

1шт.

4

A50685

BEARING ASSY,2.1255" ID x 4.126" OD x 2.891"

TAPERED ROLLER BEARING ASSEMBLY - brake housing

2шт.

5

A50686

RETAINER

- housing bearing assembly

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

7

A50688

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101829

1шт.

If replacing brake discs (A50028 steel discs and A50029 friction discs), use all new brake discs (G101711 steel discs and G102354 friction discs), two G103288 hubs and two G103391 pressure plates. Do not install old and new brake discs together.

1шт.

7

A50687

SHIM,.007" Thk

(0.178mm) .007" Thk

1шт.

Part of seal kit P/N G101829

1шт.

If replacing brake discs (A50028 steel discs and A50029 friction discs), use all new brake discs (G101711 steel discs and G102354 friction discs), two G103288 hubs and two G103391 pressure plates. Do not install old and new brake discs together.

1шт.

8

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

SCREW - Ferry head, 7/16" - 14 NC x 2-1/4", also shown on Fig.127

16шт.

9

A50689

WASHER

- special, also shown on Fig. 127

16шт.

10

G103288

HUB CAP

HUB - brake disc, 29 external and 27 internal teeth, Includes: Ref. 10A

2шт.

10a

NSS

NOT SOLD SEPARAT

BALL - steel, 9/32" diameter

4шт.

11

A50028

PLATE

DISC - steel, used with A50030 pressure plate, 5/32" (2.29 mm) steel core

8шт.

11

G101711

PLATE

DISC - steel, used with G103391 pressure plate, 1/8" (3.05 mm) steel core

8шт.

12

A50029

PLATE

FRICTION DISC - used with A50030 pressure plate

10шт.

12

G102354

PLATE

FRICTION DISC - used with G103391 pressure plate

10шт.

13

A50030

PLATE

- pressure, used with A50028 steel discs and A50029 friction discs only; is not stamped with part number

2шт.

13

G103391

PLATE

- pressure, used with G101711 steel discs and G102354 friction discs only; part number is an outer side of plate

2шт.

14

A50691

SPACER

- brake disc hub

2шт.

15

131-468

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - NF

2шт.

Part of seal kit P/N G101829

1шт.

16

A50692

COIL SPRING

SPRING - brake piston return

20шт.

Part of break seal kit P/N G101830

1шт.

17

A50695

COVER

- brake

2шт.

18

A50698

SEAL,Square, 3.4mm Thk x 240.89mm ID

GASKET - rubber

2шт.

Part of break seal kit P/N G101830

1шт.

19

A50693

STUD

- 3/8" - 16 NC x 3-3/4", if used

18шт.

19

A51467

STUD

- 3/8" - 16 NC x 4-3/8", if used

7шт.

19a

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3", if used

13шт.

20

A50694

DISC

WASHER - with rubber insert, use with studs

7-2шт.

Part of break seal kit P/N G101830

1шт.

20a

D32117

COPPER WASHER

WASHER, COPPER, Use with bolts

13шт.

Part of break seal kit P/N G101830

1шт.

21

195-25

WASHER,3/8"

- flat, , use with studs 3/8"

7-2шт.

Part of break seal kit P/N G101830

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 20 NC

7-2шт.

A50705

PISTON

ASSEMBLY - brakes, Includes: Refs. 23 & 24

2шт.

23

NSS

NOT SOLD SEPARAT

PISTON - brakes

1шт.

24

211-13

BALL,1/2" Dia

Steel 1/2" Dia

2шт.

25

A50707

SEAL,182.78mm ID x 191.64mm OD x 3.23mm Thk

- teflon, large OD

2шт.

Part of break seal kit P/N G101830

1шт.

26

A50708

ELECTRICAL WIRE

WIRE - seal lip

2шт.

Part of break seal kit P/N G101830

1шт.

27

A50709

SEAL,122.45mm ID x 131.32mm OD x 3.23mm Thk

- teflon, small OD

2шт.

Part of break seal kit P/N G101830

1шт.

28

A50710

ELECTRICAL WIRE

WIRE - seal lip

2шт.

Part of break seal kit P/N G101830

1шт.

29

A50699

CAM

- brake actuating

2шт.

30

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

NEEDLE BEARING - cam

2шт.

31

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

THRUST WASHER - bearing race

2шт.

32

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - cam

2шт.

Part of break seal kit P/N G101830

1шт.

G101829

GASKET KIT

KIT - seal, Includes: Refs.7 and 15; and Refs. on Fig.148 - 160

1шт.

If replacing brake discs (A50028 steel discs and A50029 friction discs), use all new brake discs (G101711 steel discs and G102354 friction discs), two G103288 hubs and two G103391 pressure plates. Do not install old and new brake discs together.

1шт.

G101830

GASKET KIT

KIT - brake seal, Includes Refs. 16, 18, 20, 20A, 21, 25, - 28 and 32

1шт.

If replacing brake discs (A50028 steel discs and A50029 friction discs), use all new brake discs (G101711 steel discs and G102354 friction discs), two G103288 hubs and two G103391 pressure plates. Do not install old and new brake discs together.

1шт.
