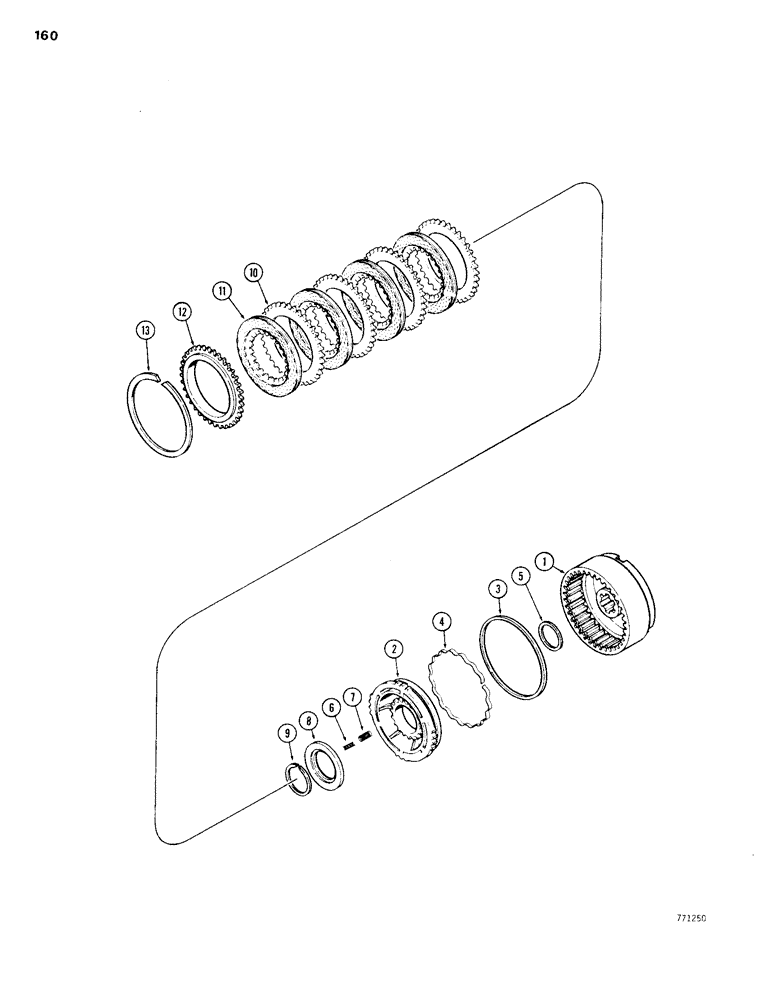

Запчасти Case 1150B (160) - TRANS. CLUTCHES, FOR I.D.: ITEM 10 HAS 5/32" (2.29 MM) STEEL CORE, FOR I.D: ITEM HAS 1/8" (3.05 MM) (03) - TRANSMISSION

A51824

NO LONGER SERVICED

CLUTCH ASSEMBLY - order G102377, for ID Ref. 10 has 5/32", 2.29 mm, steel core, Includes: Refs. 1 - 13

8шт.

1

A50670

DRUM

- clutch

1шт.

2

A50571

PISTON

clutch

1шт.

3

A50414

SEALING RING

RING - seal, piston

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

4

G102095

SPRING

- wave type

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

5

A50415

SEAL

RING - seal, drum

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

6

A51826

SPRING

- inner

18шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

7

A51825

SPRING

- outer

18шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

8

R11016

RETAINER

- spring

1шт.

9

A27233

RING

SNAP RING - spring retainer

1шт.

10

A50028

PLATE

DISC steel, 46 external teeth, 5/32", 2.29 mm, steel core

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

11

A50029

PLATE

FRICTION DISC - 29 internal teeth

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

12

A50030

PLATE

- backing

1шт.

13

30785

RING

SNAP RING - .125" (3.16 mm)

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

13

A51827

RING

SNAP RING - .110" (2.79 mm)

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

13

A51828

RING

SNAP RING - .092" (2.34 mm)

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

G102377

CLUTCH

ASSEMBLY - transmission, for ID Ref. 10 has 1/8", 3.05 mm, steel core, Includes: Refs. 1 - 15

8шт.

1

A50670

DRUM

- clutch

1шт.

2

A50571

PISTON

- clutch

1шт.

3

A50414

SEALING RING

RING - seal, piston

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

4

G102095

SPRING

- wave type

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

Wave spring G102095 is not included in kit G101831, needs to be ordered seperately if clutch assembly being rebuilt has them

1шт.

5

A50415

SEAL

RING - seal, drum

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

6

A51826

SPRING

- inner

18шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

7

A51825

SPRING

- outer

18шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

8

R11016

RETAINER

- spring

1шт.

9

A27233

RING

SNAP RING - spring retainer

1шт.

G102416

KIT

- clutch plates, Includes: Refs. 10 & 11

1шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

10

G101711

PLATE

DISC steel, 46 external teeth, 1/8", 3.05 mm, steel core

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

11

G102354

PLATE

FRICTION DISC - 29 internal teeth

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

12

G103391

PLATE

- backing

1шт.

13

30785

RING

SNAP RING - .125" (3.16 mm)

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

14

A51827

RING

SNAP RING - .110" (2.79 mm)

1шт.

Part of P/N G101831 Clutch Seal Kit

1шт.

15

51828

SNAP RING - .092" (2.34 mm)

1шт.

PICTURE OF HOW THIS MOUNTS TO FLYWHEEL IN 1450B BOOK, C1394, P 2-44

1шт.

G101831

GASKET KIT

KIT clutch seal, Includes Refs. 3 - 7 and 13 - 15 and Refs. on Figs. 150 - 156

1шт.
