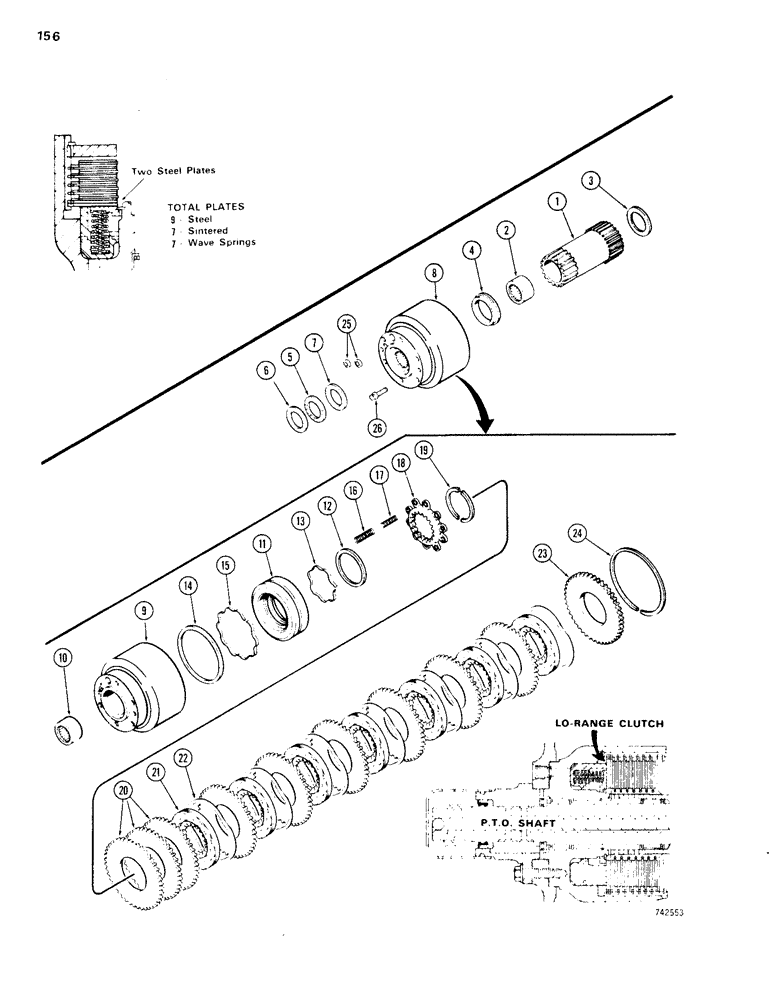

Запчасти Case 1150B (156) - TRANSMISSION SUN GEAR AND LOW RANGE CLUTCH, G35200 & G100422 TRANS 7 PLATE CLUTCH W/ 9 STEEL PLATES (03) - TRANSMISSION

1

A51817

GEAR

SUN GEAR ASSEMBLY - low range clutch, Includes: Ref. 2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- sun gear assembly

1шт.

3

A51819

THRUST WASHER - 1-3/4" (44 mm) ID x 1/16" (1.5 mm) thick

1шт.

4

A50650

RING

THRUST WASHER - with flange

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

NEEDLE BEARING - sun gear

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

THRUST WASHER - 1/32" (0.787 mm) thick

1шт.

7

T41021

RING RACE

THRUST WASHER - 3/16" (4.77 mm) thick

1шт.

8

G105820

CLUTCH

ASSEMBLY - low range, 7 plate clutch

1шт.

9

A51816

CLUTCH

HOUSING - clutch, uses A50646 bearing, no longer available, order G105821 housing and G105785 bearing

1шт.

9

G105821

FITTING

HOUSING - clutch, uses G105785 bearing

1шт.

10

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- A51816 clutch housing, 2-1/8" (54 mm) OD, Torrington no. J2816

1шт.

10

G105785

NEEDLE BEARING

- G105821 clutch housing, 2-5/16" (59 mm) OD, Torrington no. HJ-283716 or McGill no. MR-28-N, Includes: P/N A50621 and Ref.#s11 - 24

1шт.

A50621

PISTON

ASSEMBLY - low range clutch Includes: Refs. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - low range clutch

1шт.

12

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- sealing, inner

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

13

G102093

SPRING

- wave type

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

14

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - sealing, outer

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

15

G102094

SPRING

- wave type

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

16

A50627

SPRING

- outer

10шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

17

A50628

SPRING

- inner

10шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

18

A50629

RETAINER

- piston return springs

1шт.

19

A50630

RING

- split, two half rings

2шт.

20

A50640

PLATE

DISC - steel

9шт.

21

G102264

CLUTCH DISC,66.93mm ID x 133.35mm OD x 4.04mm Thk

FRICTION DISC - clutch assembly

7шт.

22

A50642

SPRING

- wave type, friction disc

7шт.

23

A50643

PLATE

- backing

1шт.

24

A50639

RING

SNAP RING - backing plate retaining

1шт.

25

A50651

SEALING RING

SEAL - rubber

2шт.

Part of seal kit P/N G101829 and Figs. 149 - 163

1шт.

26

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 7/8"

2шт.

G101829

GASKET KIT

KIT - seal, Includes Ref. 25 Fig. 148 - 162

1шт.

G101831

GASKET KIT

KIT - clutch seal, Includes: Ref.#s12 - 17 and Ref.#s on Fig. 150, 152, 154, & 160

1шт.
