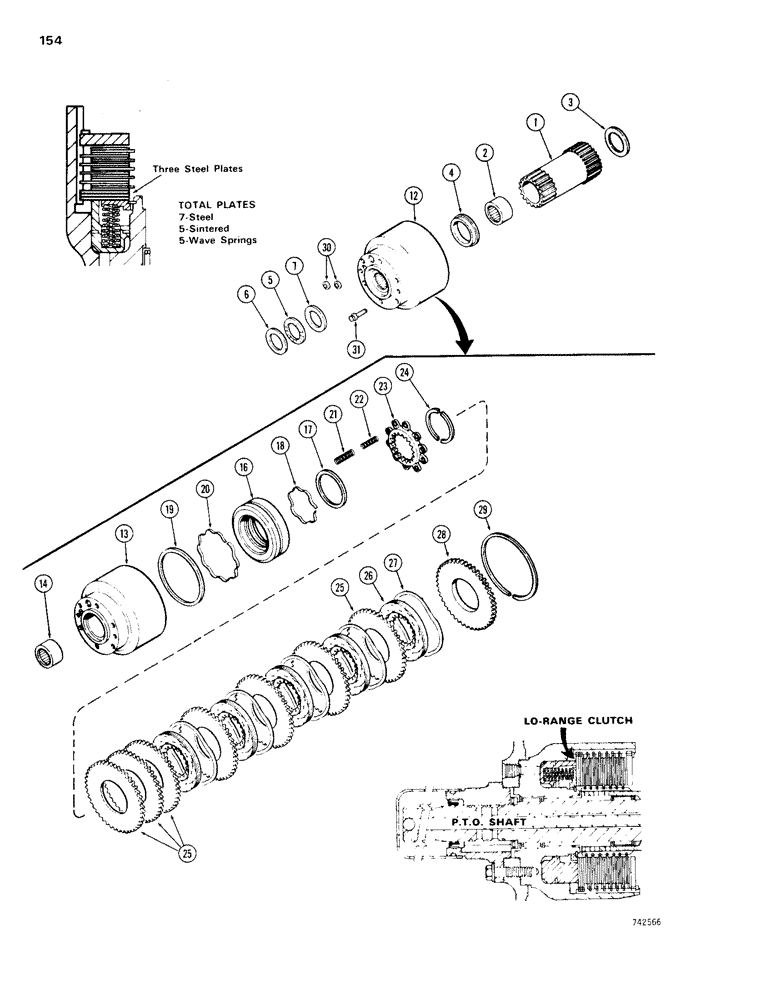

Запчасти Case 1150B (154) - SUN GEAR & LOW RANGE CLUTCH - A50590 TRANS., 5 PLATE CLUTCH W/ 7 STEEL PLATES (03) - TRANSMISSION

1

A51817

GEAR

SUN GEAR ASSEMBLY - low range clutch, Includes: Ref. 2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- sun gear assembly

1шт.

3

H147785

BEARING WASHER

THRUST WASHER - 1-3/4" (44 mm) ID x 1/16" (1.5 mm) thick

1шт.

4

A50650

RING

THRUST WASHER - with flange

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

NEEDLE BEARING - sun gear

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

THRUST WASHER - 1/32" (0.787 mm) thick

1шт.

7

T41021

RING RACE

THRUST WASHER - 3/16" (4.77 mm) thick

1шт.

12

A51895

CLUTCH

ASSEMBLY - low range, order G105820 clutch assembly and A51817 gear, parts list Fig. 156,Includes: Refs. 13 - 29

1шт.

13

A51896

HOUSING

- clutch, use G105820 clutch assembly and A51817 gear, parts list Fig. 156

1шт.

14

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

BEARING - needle, used with A51895 5 plate clutch assembly, 2-1/8" (54 mm) OD, Torrington no. J2816, if used

1шт.

14

G105785

NEEDLE BEARING

BEARING - needle, used with G105820 7 plate clutch assembly, 2-5/16" (59 mm) OD, Torrington no. HJ-283716 or McGill no. MR-28-N

1шт.

A50621

PISTON

ASSEMBLY - low range clutch, Includes: Refs. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - low range clutch

1шт.

17

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- seal, teflon

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

18

G102093

SPRING

- wave type

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

19

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - seal, teflon

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

20

G102094

SPRING

- wave type

1шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

21

A50627

SPRING

- outer

10шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

22

A50628

SPRING

- inner

10шт.

Part of clutch seal kit P/N G101831and on Figs. 151, 153, 157 & 161

1шт.

23

A50629

RETAINER

- piston return spring

1шт.

24

A50630

RING

- split, two half rings

2шт.

25

A50640

PLATE

DISC - steel, 70 external teeth

7шт.

26

A50641

DISC

FRICTION DISC - 22 internal teeth

5шт.

27

A50642

SPRING

- wave type

5шт.

28

A50643

PLATE

- backing

1шт.

29

A50639

RING

SNAP RING - large, clutch assembly

1шт.

30

A50651

SEALING RING

SEAL - rubber

2шт.

31

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 7/8"

2шт.

G101831

GASKET KIT

KIT - clutch seal, Includes Refs. 17 - 22 and Refs. on Figs. 150, 152, 156 & 160

1шт.
