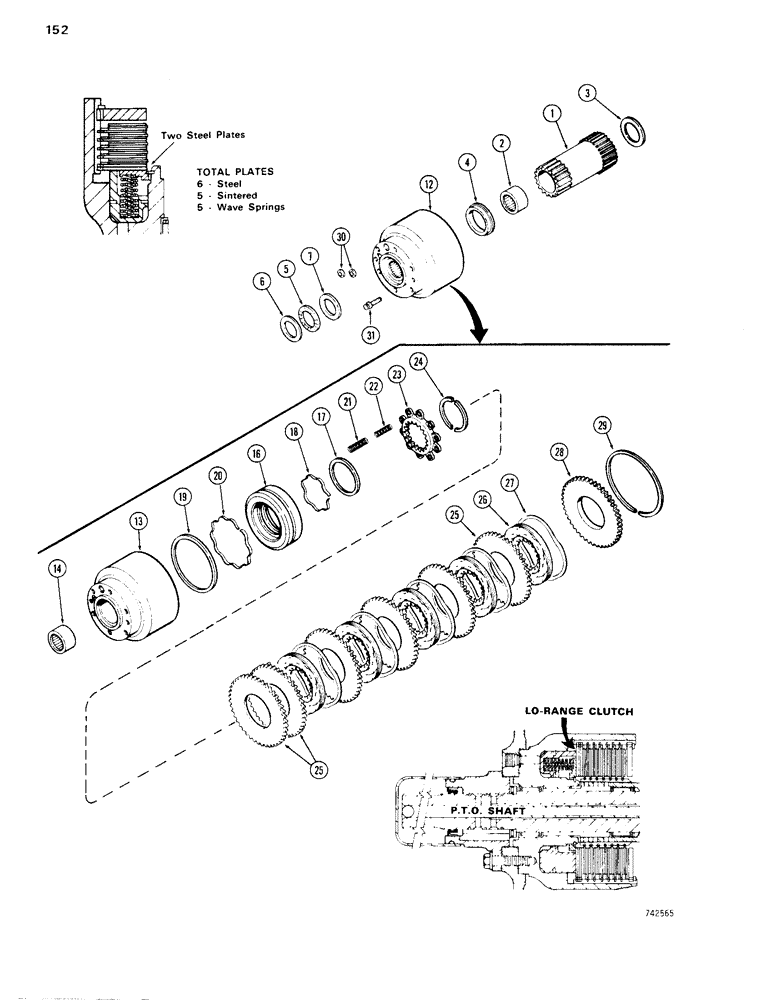

Запчасти Case 1150B (152) - SUN GEAR & LOW RANGE CLUTCH - A50590 TRANSMISSION, 5 PLATE CLUTCH W/ 6 STEEL PLATES (03) - TRANSMISSION

1

A50647

GEAR

SUN GEAR ASSEMBLY - 1-3/8" (35 mm) spline, use A51817 gear and G105820 clutch, Fig.156, Refs. 1 & 8 and Ref.#2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- sun gear assembly

1шт.

3

A51819

THRUST WASHER - 1-3/4" (44 mm) ID x 1/16" (1.5 mm) thick

1шт.

4

A50650

RING

THRUST WASHER - with flange

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

NEEDLE BEARING - sun gear

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

THRUST WASHER - 1/32" (0.787 mm) thick

1шт.

7

T41021

RING RACE

THRUST WASHER - 1-1/2" (38 mm) ID x 3/16" (4.77 mm) thick

1шт.

12

A50816

CLUTCH ASSEMBLY

- low range, 5 plate clutch, order G105820 clutch assembly and A51817 gear, parts list Fig. 156 and Refs. 13 & 14

1шт.

13

A50817

HOUSING

- clutch, use G105820 clutch assembly and A51817 gear, parts list Fig. 156

1шт.

14

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

BEARING - needle, used with A50816 5 plate clutch assembly, 2-1/8" (54 mm) OD, Torrington no. J2816, if used

1шт.

14

G105785

NEEDLE BEARING

BEARING - needle, used with G105820 7 plate clutch assembly, 2-5/16" (59 mm) OD, Torrington no. HJ-283716 or McGill no. MR-28-N, Includes: P/N A50621 & Refs. 16 - 20

1шт.

A50621

PISTON

ASSEMBLY - low range clutch

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - low range clutch

1шт.

17

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- inner, teflon

1шт.

Part of clutch seal kit P/N G101831and on Fig. 150, 154, 156 & 160

1шт.

18

G102093

SPRING

- wave type

1шт.

Part of clutch seal kit P/N G101831and on Fig. 150, 154, 156 & 160

1шт.

19

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - outer, teflon

1шт.

Part of clutch seal kit P/N G101831and on Fig. 150, 154, 156 & 160

1шт.

20

G102094

SPRING

- wave type

1шт.

Part of clutch seal kit P/N G101831and on Fig. 150, 154, 156 & 160

1шт.

21

A50627

SPRING

- outer

10шт.

Part of clutch seal kit P/N G101831and on Fig. 150, 154, 156 & 160

1шт.

22

A50628

SPRING

- inner

10шт.

Part of clutch seal kit P/N G101831and on Fig. 150, 154, 156 & 160

1шт.

23

A50629

RETAINER

- piston return springs

1шт.

24

A50630

RING

- split, two half rings

2шт.

25

A50640

PLATE

DISC - steel, 70 external teeth

6шт.

26

A50641

DISC

FRICTION DISC - 22 internal teeth

5шт.

27

A50642

SPRING

- wave type

5шт.

28

A50643

PLATE

- backing

1шт.

29

A50639

RING

SNAP RING - large, clutch assembly

1шт.

30

A50651

SEALING RING

SEAL - rubber

2шт.

31

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 7/8"

2шт.

G101831

GASKET KIT

KIT - clutch seal, Includes Refs. 17, 18, 19, 20, 21 and 22 and on Fig. 150, 154, 156 &160

1шт.
