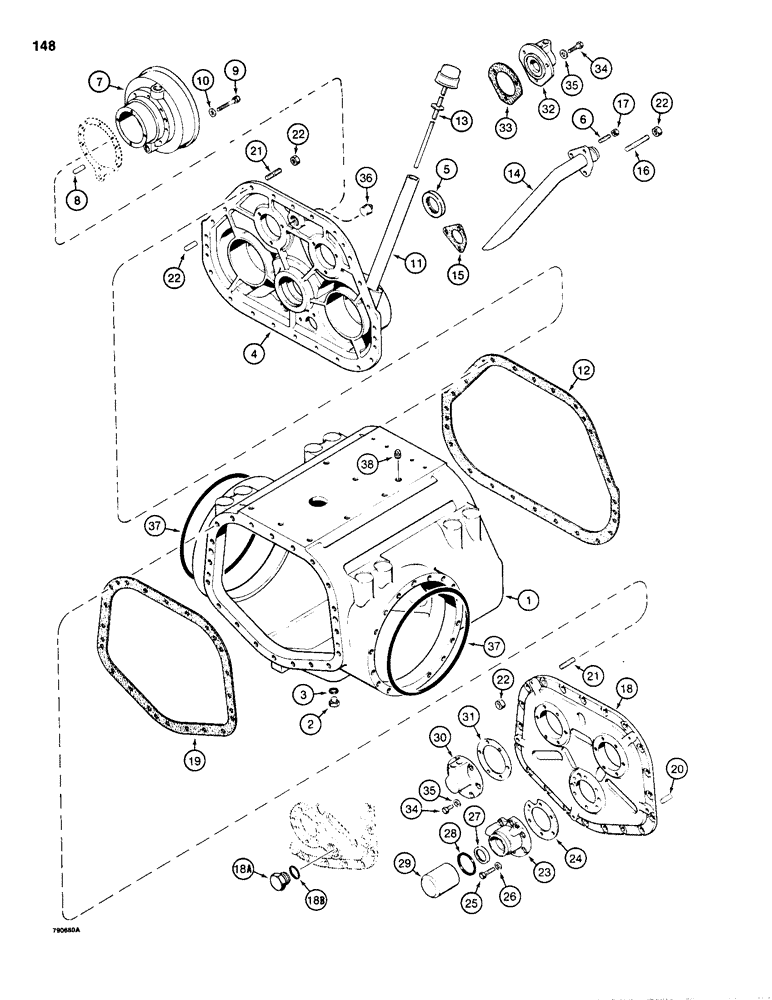

Запчасти Case 1150B (148) - TRANSMISSION HOUSING, COVERS, AND DIPSTICK (03) - TRANSMISSION

A50590

TRANSMISSION ASSEMBLY - before transmission SN 2787993, Serial Range: -2787993

1шт.

G35200

TRANSMISSION ASSEMBLY - transmission SN 2787993 thru SN 2806172

1шт.

G100422

TRANSMISSION

ASSEMBLY - transmission, Start Serial: 2806173

1шт.

1

A51169

HOUSING

- transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

A136583

HOUSING - transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

G102756

HOUSING

- transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

G103460

HOUSING

- transmission, when ordered as a replacement for A51169, A136583, or G102756, also order (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

2

A50014

PLUG

DRAIN PLUG - transmission housing

1шт.

3

A58608

GASKET

- nylon, no longer used, order G102141 copper washer

1шт.

3

G102141

SEALING WASHER

WASHER - copper

1шт.

Part of seal kit P/N G101829 Fig. 150 - 162

1шт.

G100419

SCRAPER

COVER ASSEMBLY - front, uses 217-177 barb fitting, Fig.135, no longer used, order G104174 cover and 217-393 barb fittng

1шт.

G104174

COVER

ASSEMBLY - front, uses 217-393 barb fitting, Fig. 135, Includes: Refs. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

5

A50420

SEAL

OIL SEAL - input shaft

1шт.

Part of seal kit P/N G101829 Fig. 150 - 162

1шт.

6

A50362

STUD

- oil suction tube

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - brake

2шт.

8

70205

PIN

DOWEL - cover mounting

4шт.

9

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

SCREW - Ferry head, 7/16" - 14 NC x 2-1/4"

16шт.

10

A50689

WASHER

- flat, hardened

16шт.

11

A50596

TUBE

- oil filler

1шт.

12

G35210

GASKET

- front cover

1шт.

Part of seal kit P/N G101829 Fig. 150 - 162

1шт.

13

A50600

DIPSTICK

- transmission

1шт.

14

A51515

TUBE

- oil suction

1шт.

15

A51732

GASKET

- oil suction tube

1шт.

Part of seal kit P/N G101829 Fig. 150 - 162

1шт.

16

G102127

STUD

- 1/2" NC x 3-3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

A50818

COVER - rear, no longer available, order G102759 cover

1шт.

18

A136169

COVER

- rear, no longer available, order G102759 cover

1шт.

18

G102759

COVER

- rear

1шт.

18a

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

- hex head, 1-7/8" - 12 threads, may be used on service cover

1шт.

18b

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- plug

1шт.

19

G35211

GASKET

- rear cover

1шт.

Part of seal kit P/N G101829 Fig. 150 - 162

1шт.

20

70205

PIN

DOWEL - cover mounting

4шт.

21

G102110

BOLT

- 1/2" NC x 1-7/8"

41шт.

22

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

42шт.

23

A50652

NO LONGER SERVICED

CAP - rear, input shaft, no longer available, order G102240 and six 13-628 bolts

1шт.

23

A136166

CAP

- rear, input shaft, uses 13-626 bolts, no longer available, order G102240 and six 13-628 bolts

1шт.

23

G102240

CAP

- rear, input shaft, uses 13-628 bolts

1шт.

24

G102757

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal Kit G101829

1шт.

24

G102758

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

25

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

If used Hex, 3/8"-16 x 1 5/8", G5

6шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

6шт.

26

D32117

COPPER WASHER

WASHER, COPPER

6шт.

27

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - PTO shaft

1шт.

28

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- cover, winch models only

1шт.

29

G101696

PROTECTIVE COVER

COVER - PTO shaft

1шт.

30

A50672

CAP

COVER - rear, clutch shafts

2шт.

31

NLS

NO LONGER SERVICED

SHIM - .002" thick (.0508 mm)

1шт.

31

1342255C1

SHIM

- .007" thick (0.1778 mm)

1шт.

32

A50671

CAP

COVER - front, clutch shafts

2шт.

33

R11428

GASKET

- front cover, clutch shafts

2шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

35

D32117

COPPER WASHER

WASHER, COPPER

18шт.

36

221-6

X,Sq Hd, 1"-11 1/2 NPTF

PLUG - square head, 1" NPT, if used, Serial Range: -2806173

1шт.

37

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- housing to final drive, used with G103460 housing only

2шт.

38

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT, used with G103460 housing

1шт.

G101829

GASKET KIT

KIT - seal, Includes Refs. 3, 5, 12, 15 and 19 Fig. 150 -162

1шт.
