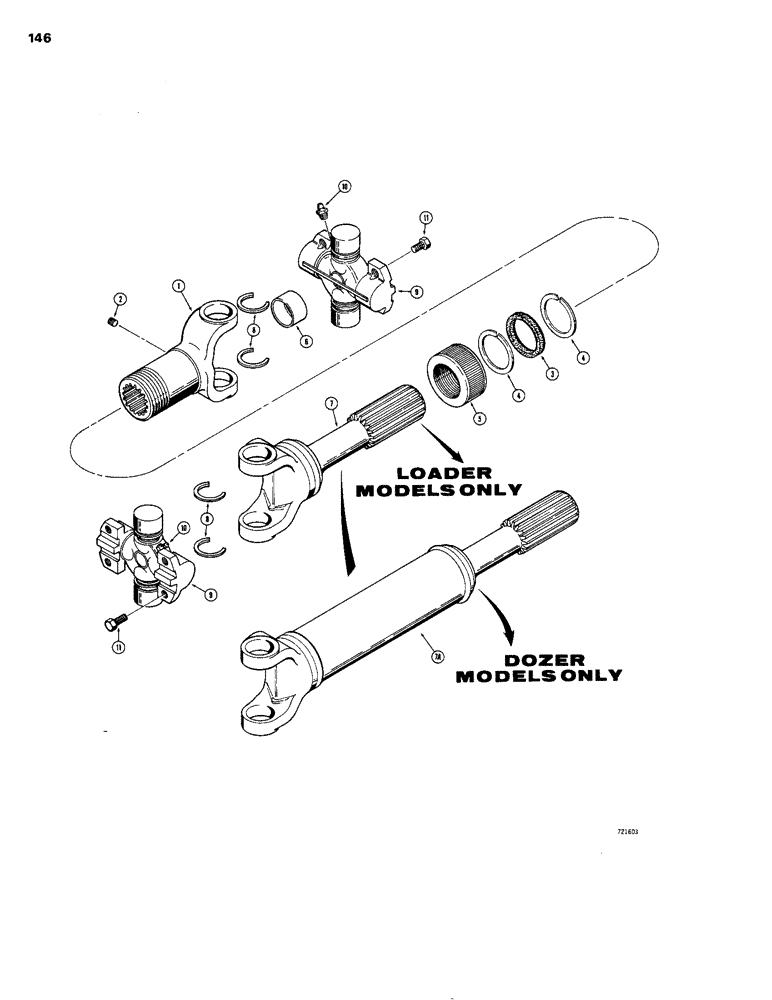

Запчасти Case 1150B (146) - DRIVE SHAFT (DOZER) (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
R37956
LUG
DRIVE SHAFT ASSEMBLY - dozer and drawbar models, Includes: P/N R30067 and Refs. 1 - 11
1шт.
R30067
YOKE
ASSEMBLY - drive shaft, Includes: Refs. 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
YOKE - drive shaft
1шт.
2
221-849
PLUG,Hex Soc, 1/8"-27
- square socket head, 1/8" NPT
1шт.
3
A18390
WASHER
- felt
1шт.
4
A18387
WASHER
- felt retaining
2шт.
5
A18388
CAP
- felt retaining
1шт.
6
NSS
NOT SOLD SEPARAT
PLUG - cup
1шт.
7a
R30070
TUBE
YOKE - drive shaft, Includes: Ref. 8
1шт.
8
D31440
RING
SNAP RING - universal joint
2шт.
D76949
U-JOINT SPIDER
UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Refs. 9 - 11
2шт.
9
NSS
NOT SOLD SEPARAT
UNIVERSAL JOINT - drive shaft
1шт.
10
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
GREASE FITTING - straight, 1/4" - 28 NF
1шт.
11
28-616
BOLT,Hex, 3/8" - 24 x 1", Gr 8
- hex, 3/8" - 16 NC x 1", grade 8
4шт.
R37955
SHAFT
DRIVE SHAFT ASSEMBLY - loader models, Includes: P/N R30067 and Refs. 1 - 11
1шт.
R30067
YOKE
ASSEMBLY - drive shaft loader, Includes: Refs. 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
YOKE - drive shaft loader
1шт.
2
221-849
PLUG,Hex Soc, 1/8"-27
- square socket head, 1/8" NPT, drive shaft loader
1шт.
3
A18390
WASHER
- felt, drive shaft loader
1шт.
4
A18387
WASHER
- felt retaining, drive shaft loader
2шт.
5
A18388
CAP
- felt retaining, drive shaft loader
1шт.
6
NSS
NOT SOLD SEPARAT
PLUG - cup, drive shaft loader
1шт.
7
R30069
YOKE
- drive shaft loader, Includes: Ref. 8
1шт.
8
D31440
RING
SNAP RING - universal joint, drive shaft loader
2шт.
D76949
U-JOINT SPIDER
UNIVERSAL JOINT ASSEMBLY - drive shaft loader, Includes: Refs. 9 - 11
2шт.
9
NSS
NOT SOLD SEPARAT
UNIVERSAL JOINT - drive shaft loader
1шт.
10
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
GREASE FITTING - straight, 1/4"- 28 NF, Drive shaft loader
1шт.
11
28-616
BOLT,Hex, 3/8" - 24 x 1", Gr 8
- hex, 3/8" - 16 NC x 1", grade 8, drive shaft loader
8шт.
Выбрано товаров: 28
