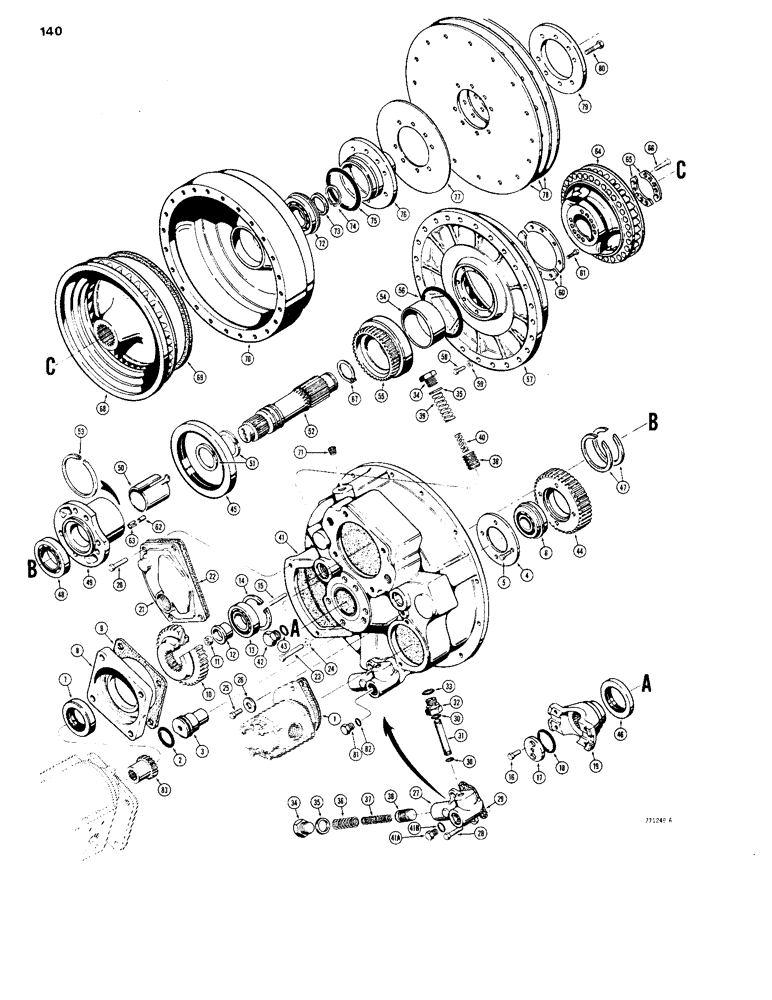

Запчасти Case 1150B (140) - R27301 AND R27300 TORQUE CONVERTERS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
R27300
CONVERTER
TORQUE CONVERTER - dozer models, Twin Disc Spec. #N62768, Includes: Refs. 1 - 82
1шт.
R27301
CONVERTER
TORQUE CONVERTER - loader models, Twin Disc Spec. #N62767, Includes: Refs. 1 - 82
1шт.
1
D32000
GASKET
- pump mount
1шт.
Part of Seal Kit, P/N R38108
1шт.
2
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
1шт.
3
R29100
SHAFT
- idler gear
1шт.
4
R29099
PLATE
- retaining
1шт.
5
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
6
R29093
BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W
BEARING - ball
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
7
D51517
SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk
- oil
1шт.
Part of Seal Kit, P/N R38108
1шт.
8
D31938
CARRIER
- oil seal
1шт.
9
D32004
GASKET
- carrier
1шт.
Part of Seal Kit, P/N R38108
1шт.
10
D32003
GEAR
- driven
1шт.
11
25-116
NUT,Hex, 3/8"-24, G5
- hex, 3/8" - 24 NF
1шт.
12
D32032
BEARING,1.3782" OD x 1.03
RETAINER - bearing
1шт.
13
R29094
BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W
BEARING - ball
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
14
D32069
RING
- snap
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
15
D32067
STUD
- 3/8" - 24 NF x 1-1/2"
1шт.
16
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
2шт.
17
D32018
PLATE
- yoke retaining
1шт.
18
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
1шт.
19
D31315
YOKE
- drive shaft
1шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
21
R29098
PLATE
- cover
1шт.
22
D32005
GASKET
- cover
1шт.
Part of Seal Kit, P/N R38108
1шт.
23
15-640
SCREW,Hex, 3/8" - 16 x 2 1/2"
HHCS - 3/8" - 16 NC x 2-1/2"
6шт.
24
D32117
COPPER WASHER
WASHER, COPPER, Special
6шт.
Part of Seal Kit, P/N R38108
1шт.
25
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
HHCS - 3/8"- 26 NF x 5/8"
1шт.
26
D32118
WASHER
- special
1шт.
27
D37378
HOUSING
BODY - relief valve
1шт.
28
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
29
D32002
GASKET
- relief valve
1шт.
Part of Seal Kit, P/N R38108
1шт.
30
D32114
O-RING,0.75" ID x 0.875" OD
2шт.
Part of Seal Kit, P/N R38108
1шт.
31
R30090
TUBE,0.62" ID x 0.87" OD x 3.62" L
- relief valve
1шт.
32
D37379
CONNECTOR, ELEC
FITTING - straight
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
33
D37371
OIL SEAL
O-RING
1шт.
34
D32013
PLUG
- relief valve
2шт.
35
D32119
WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk
- relief valve
2шт.
Part of Seal Kit, P/N R38108
1шт.
36
D72857
SPRING
- outer
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
37
D72856
SPRING
- inner
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
38
D32014
PISTON
- relief valve
2шт.
Part of Overhaul Kit, P/N R40939
1шт.
39
D32031
SPRING
- outer
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
40
D32021
SPRING
- inner
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
41
R29097
HOUSING
- use D77622 housing, 218-5160 and 221-841 plugs
1шт.
41
D77622
HOUSING
- converter
1шт.
42
9672438
PLUG,7/16" - 20 ORB
1шт.
43
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
Part of Seal Kit, P/N R38108
1шт.
44
R29096
GEAR
- idler
1шт.
45
D32109
SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk
- oil
1шт.
Part of Seal Kit, P/N R38108
1шт.
46
D51518
OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk
- oil
1шт.
Part of Seal Kit, P/N R38108
1шт.
47
D32070
RING
- snap
2шт.
Part of Overhaul Kit, P/N R40939
1шт.
48
B18274
BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"
BEARING - ball
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
49
D75861
GUIDE
CARRIER - guide
1шт.
50
D32027
SLEEVE
- split
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
51
A20229
RING
- piston
2шт.
Part of Seal Kit, P/N R38108
1шт.
52
D32026
SHAFT
- output
1шт.
(Now has only one groove and one seal)
1шт.
53
A20231
RING
- snap
1шт.
D75862
GEAR
ASSEMBLY - pump drive, Includes: Refs. 54 & 55
1шт.
54
D75859
BUSHING,89.09mm ID x 93.75mm OD x 27.18mm L
- steel backed
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
55
NSS
NOT SOLD SEPARAT
GEAR - pump drive
1шт.
56
49393
O-RING,4.734" ID x 5.012" OD x 0.139"
1шт.
Part of Seal Kit, P/N R38108
1шт.
57
D31934
IMPELLER
- R27301 converter
1шт.
57
D37376
TURBINE
IMPELLER - R27300 converter
1шт.
58
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
24шт.
59
A22873
WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk
- special
24шт.
60
D32016
PLATE
- clamp
2шт.
61
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
8шт.
62
138-108
LOCK PIN,7/32" x 5/8", Slotted
4шт.
63
138-221
LOCK PIN,3/8" x 5/8", Slotted
4шт.
64
D37377
GUIDE
WHEEL - R27300 converter
1шт.
64
D31936
GUIDE
WHEEL - R27301 converter
1шт.
65
D32010
PLATE
- clamp
2шт.
66
166-26
12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8
SCREW - fillister head, 5/16" -18 NC x 1"
6шт.
67
A22889
RING
- snap
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
68
D31935
TURBINE
- converter
1шт.
69
D31998
GASKET
- ring
1шт.
Part of Seal Kit, P/N R38108
1шт.
70
D32007
HOUSING
- rotating
1шт.
71
221-841
PLUG
- hex socket, 1/4" NPT
1шт.
72
A63271
BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"
BEARING - ball
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
73
D32030
BALL BEARING,1.585" ID x 1.94" OD x 0.114"
SPACER - bearing
1шт.
74
A26946
RING
- snap
1шт.
Part of Overhaul Kit, P/N R40939
1шт.
75
A21301
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
1шт.
Part of Seal Kit, P/N R38108
1шт.
76
D32015
WHEEL
PILOT - flywheel
1шт.
77
D32025
SHIM
- flex plate
1шт.
Part of Seal Kit, P/N R38108
1шт.
78
D32017
PLATE
FLEX PLATE - converter
3шт.
PICTURE OF HOW THIS MOUNTS TO FLYWHEEL IN 1450B BOOK, C1394, P 2-44
1шт.
79
D32028
WASHER
- support
1шт.
80
121-421
LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 1 1/4", Gr 8
HHCS - 1/2" - 13 NC x 1-1/4", grade 8
6шт.
81
76349
PLUG,9/16" - 18 ORB
Incl. Ref 82 Hex Hd, 9/16"-18 ORB
1шт.
82
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
83
D37030
HUB
GEAR - equipment pump drive
1шт.
R40939
KIT
- overhaul, includes Refs. 6, 13, 14, 32, 36, 37, 38, 39, 40, 47, 48, 50, 54, 67, 72 and 74
1шт.
R38108
GASKET KIT
KIT - seal, includes Refs. 1, 7, 9, 22, 24, 29, 30, 35, 43, 45, 46, 51, 56, 69, 75 and 77
1шт.
Выбрано товаров: 125
