(138) - G102705 TRANSMISSION OIL FILTER (PRESSURE LINE)

Запчасти Case 1150B (138) - G102705 TRANSMISSION OIL FILTER (PRESSURE LINE) (03) - TRANSMISSION

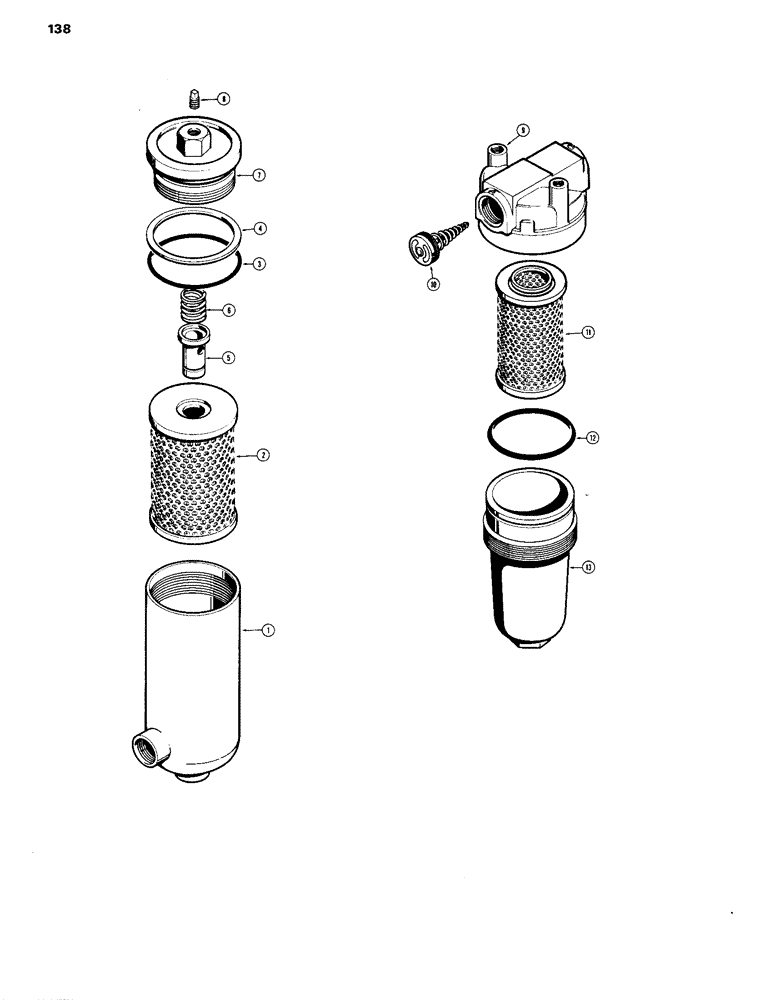

Схема запчастей Case 1150B - (138) - G102705 TRANSMISSION OIL FILTER (PRESSURE LINE) (03) - TRANSMISSION
12
6
9
1
3
2
8
10
5
4
13
7
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G102705

FILTER

- complete (6 Micron), Includes: Refs. 1 - 8

2шт.

1

A60767

BODY

- oil filter

1шт.

G102111

HYDRAULIC OIL FILTER

KIT - oil filter element

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (6 Micron)

1шт.

3

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

4

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

5

D37207

VALVE

- relief

1шт.

6

D31212

SPRING

- filter retaining

1шт.

7

A60765

CAP

- filter

1шт.

8

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

1шт.

R36416

FILTER

- complete, transmission oil filter (suction line) used w/ o-ring type fittings, Includes: P/N D73719 and Refs. 9 - 13

1шт.

D73719

HEAD

ASSEMBLY - R36416 transmission oil filter (suction line) used w/o-ring type fitting

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - R36416 transmission oil filter (suction line) used w/ o-ring type fitting

1шт.

10

D49376

VALVE

- relief, R36416 transmission oil filter (suction line) used w/o-ring type fitting

1шт.

11

R30103

FILTER

SCREEN - R36416 transmission oil filter (suction line) used w/o-ring type fitting

1шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- R36416 transmission oil filter (suction line) used w/o-ring type fitting

1шт.

13

R30102

HOUSING

- R36416 transmission oil filter (suction line) used w/o-ring type fitting

1шт.

R26466

FILTER

- complete, R26466 transmission oil filter (suction line) used fitting w/o o-rings, Includes: P/N D43798 and Refs. 9 - 13

1шт.

D43798

HEAD

ASSEMBLY - R26466 transmission oil filter (suction line) used fitting w/o o-rings

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - R26466 transmission oil filter (suction line) used fitting w/o o-rings

1шт.

10

D49376

VALVE

- relief, R26466 transmission oil filter (suction line) used fitting w/o o-rings

1шт.

11

R30103

FILTER

SCREEN - R26466 transmission oil filter (suction line) used fitting w/o o-rings

1шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- R26466 transmission oil filter (suction line) used fitting w/o o-rings

1шт.

13

R30102

HOUSING

- R26466 transmission oil filter (suction line) used fitting w/o o-rings

1шт.
