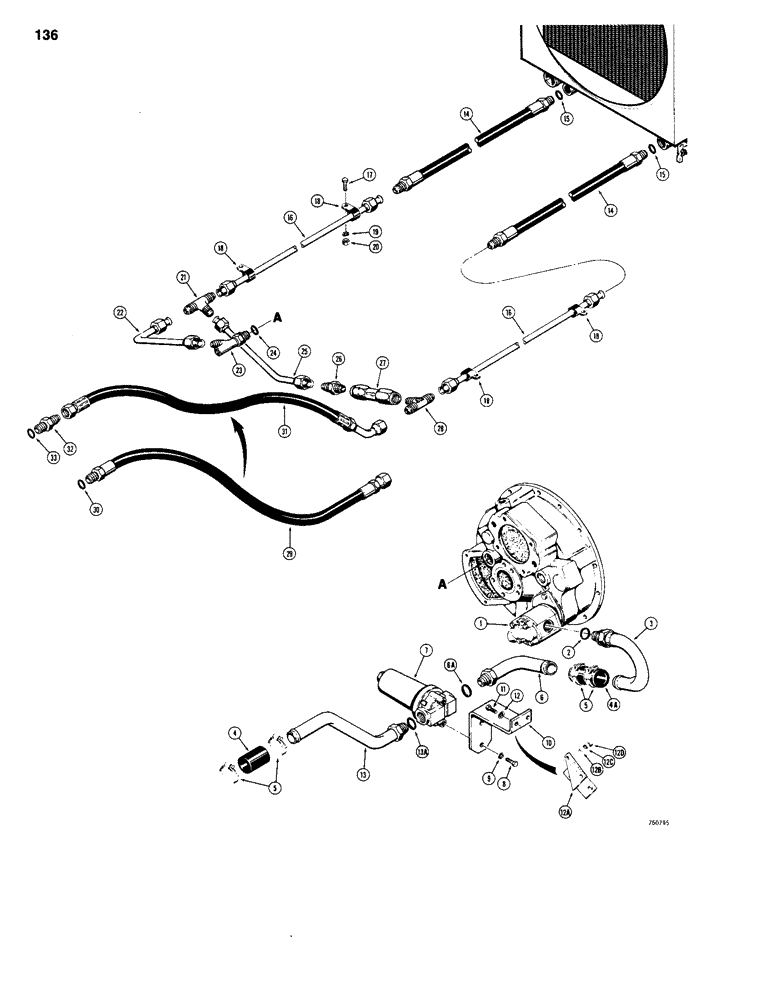

Запчасти Case 1150B (136) - CRAWLER HYDRAULIC CIRCUITS, PUMP TO HYDRAULIC TANK (03) - TRANSMISSION

1

REF

INSTRUCTION

PUMP - torque converter, parts list Fig. 144

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

R27913

TUBE,38.1 mm OD x 152.4, 114.3 mm L

- hydraulic, at pump

1шт.

4

R28920

HOSE

- 1-1/2" (38 mm) ID x 3" (76 mm) long

1шт.

4a

R34237

HOSE

- 1-1/2" (38 mm) ID x 4" (102 mm) long

1шт.

5

R33384

CLAMP

- hose

4шт.

6

R26462

TUBE,1.5" OD x 4.62, 5.4" L

- dozer model, without O-ring

1шт.

6

R26467

TUBE

- loader model, without O-ring

1шт.

6

R36423

TUBE,1.5" OD x 4.62, 4" L

- dozer model, with O-ring

1шт.

6

R36448

TUBE,1.5" OD x 6.5, 4.5" L

- loader model, with O-ring, Includes: Ref. 6A

1шт.

6a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- R36423 and R36448 tubes

1шт.

7

REF

INSTRUCTION

FILTER - Fig. 138

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

R29521

BRACKET

- filter mounting, dozer models

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

12a

R26381

BRACKET

- filter mounting, loader models

1шт.

12b

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

12c

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

12d

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

R29519

TUBE

- dozer model, without O-ring

1шт.

13

R27915

TUBE

- loader model, without O-ring

1шт.

13

R36452

TUBE,1.5" OD x 12.75, 3.93" L

- dozer model, with O-ring

1шт.

13

R36420

TUBE

- loader model, with O-ring, Includes: Ref. 13A

1шт.

13a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- R36452 and R36420 tubes

1шт.

14

R27118

HOSE

- at radiator, 22" (559 mm) long, cooling circuit, Includes: Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- cooling circuit

1шт.

16

R27116

TUBE,0.75" OD x 37.1" L

- dozer models, cooling circuit

2шт.

16

R26057

TUBE,0.75" OD x 36" L

- loader models, cooling circuit

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cooling circuit Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube, cooling circuit

4шт.

19

92-5

LOCK WASHER,5/16"

WASHER - lock, , cooling circuit 5/16"

4шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, cooling circuit

4шт.

21

218-596

TEE,1 1/16"-12 37 Degree

- male, cooling circuit

1шт.

22

R27112

TUBE,0.75" OD x 10.5, 5.3" L

- at converter, dozer models, cooling circuit

1шт.

22

R26065

TUBE,0.75" OD

- at converter, loader models, cooling circuit

1шт.

23

D44004

FITTING

TEE - special, cooling circuit, Includes: Ref.#24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

cooling circuit

1шт.

25

R27114

TUBE,0.75" OD x 14.4, 2.8" L

- crossover, dozer models, cooling circuit

1шт.

25

R26166

TUBE,0.75" OD x 14.8, 2.7" L

- crossover, loader models, cooling circuit

1шт.

26

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FITTING - male, straight, cooling circuit

1шт.

27

R27233

VALVE

- relief, cooling circuit

1шт.

28

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

FITTING - male, cooling circuit

1шт.

29

R26056

HOSE

- 35" (889 mm) long, loader models, cooling circuit, Includes: Ref. 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- cooling circuit

1шт.

31

R27111

HOSE

- 36" (914 mm) long, dozer models, cooling circuit

1шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, dozer models, cooling circuit, Incl. Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- cooling circuit

1шт.
