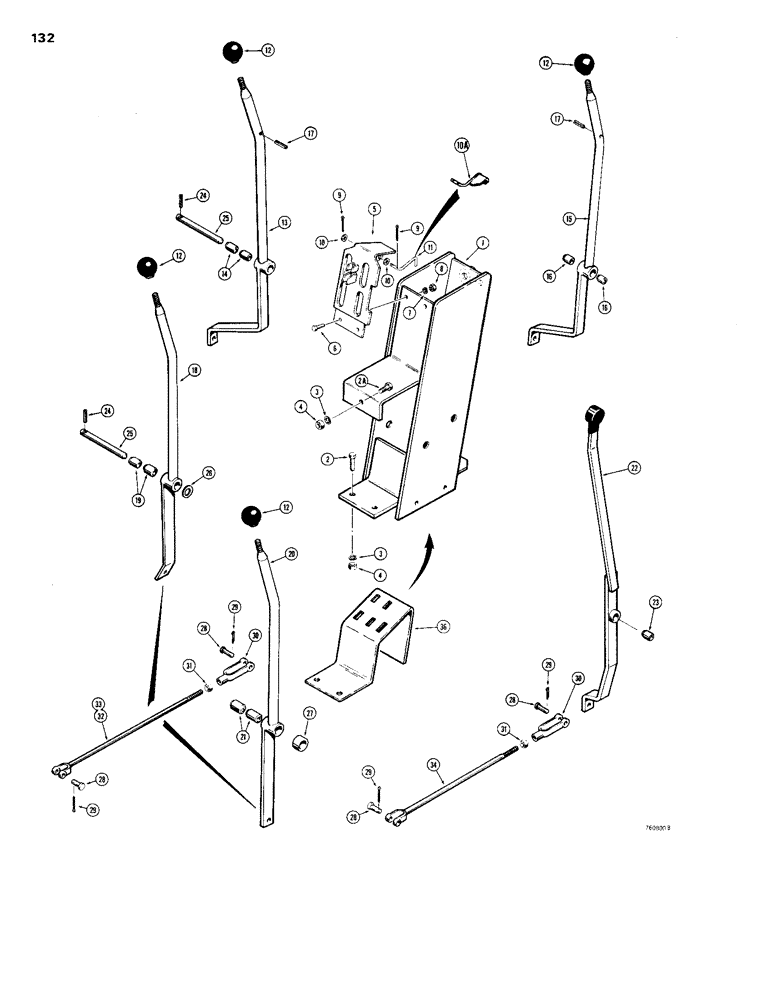

Запчасти Case 1150B (132) - TRANSMISSION CONTROL TOWER & CONTROLS, USED ON TRACTOR SN 7302975 & AFTER (03) - TRANSMISSION

1

R31199

CONTROL TOWER - transmission

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

2a

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

5

R28887

LARGE PLATE

PLATE - lock

1шт.

6

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

10

195-17

WASHER,1/4"

- flat, 1/16"

2шт.

10a

R28897

LOCK

PLATE - lock, early production

1шт.

11

R36318

LOCK

PLATE - lock, late production

1шт.

12

70213

KNOB

- control lever

4шт.

13

R28912

LEVER

CONTROL LEVER - left-hand track speed, Includes: Ref. 14

1шт.

14

R31144

BUSHING

- control lever

2шт.

15

R28914

LEVER

CONTROL LEVER - right-hand track speed, Includes: Ref. 16

1шт.

16

R31144

BUSHING

- control lever

2шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

ROLL PIN - 3/8" x 1/4"

2шт.

18

R28917

LEVER

CONTROL LEVER - left-hand forward and reverse, Includes: Ref. 19

1шт.

19

R31144

BUSHING

- control lever

2шт.

20

R28919

LEVER

CONTROL LEVER - right-hand forward and reverse, Includes: Ref. 21

1шт.

21

R31144

BUSHING

- control lever

2шт.

22

R26827

LEVER

- dual range, High-Low, Includes: Ref. 23

1шт.

23

R31144

BUSHING

- control lever

1шт.

24

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

ROLL PIN - 3/8" x 1/4"

2шт.

25

R26815

SHAFT

- control lever

2шт.

26

A7915

SHIM,.0359" Thk

(20 gauge) .0359" Thk

1шт.

27

R26854

SPACER

- rear shaft

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

10шт.

29

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4", at control tower

5шт.

30

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end, adjustable

5шт.

31

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

5шт.

32

R26817

ROD

- track speed

2шт.

33

R26818

ROD

- forward and reverse

2шт.

34

R26817

ROD

- High-Low range

1шт.

35

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , At control valve 3/32" x 1/2"

5шт.

36

R39306

SEAL

- cab models

1шт.
