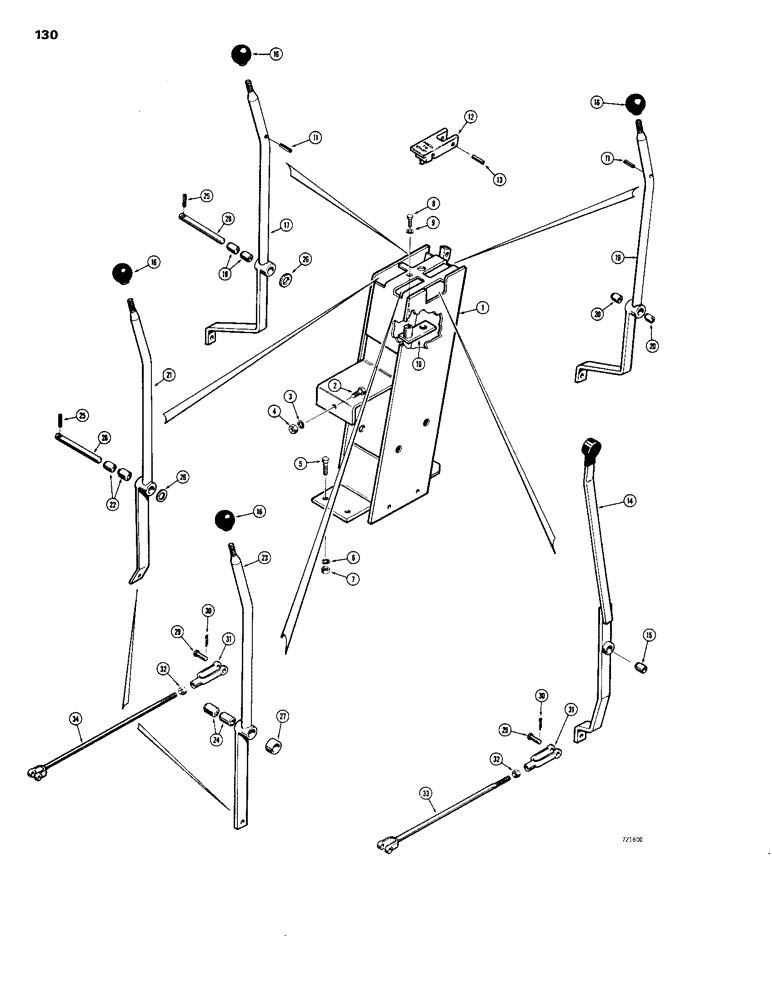

Запчасти Case 1150B (130) - TRANSMISSION CONTROL TOWER & CONTROLS, USED BEFORE TRAC. SN 7302975 (03) - TRANSMISSION

1

R26807

CONTROL TOWER - transmission

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

1шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

10

D34923

BRACKET

- starter switch mounting

1шт.

11

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

12

R30091

LOCK

- control lever, safety

1шт.

13

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

14

R26827

LEVER

CONTROL LEVER - dual range, high-low, Includes: Ref. 15

1шт.

15

R31144

BUSHING

- control lever

1шт.

16

70213

KNOB

- control lever

4шт.

17

R26834

CONTROL LEVER - left-hand track speed, Includes: Ref. 18

1шт.

18

R31144

BUSHING

- control lever

2шт.

19

R26831

CONTROL LEVER - right-hand track speed, Includes: Ref. 20

1шт.

20

R31144

BUSHING

- control lever

2шт.

21

R26820

CONTROL LEVER - left-hand track forward and reverse, Includes: Ref. 22

1шт.

22

R31144

BUSHING

- control lever

2шт.

23

R26824

LEVER

CONTROL LEVER - right-hand track forward and reverse, Includes: Ref. 24

1шт.

24

R31144

BUSHING

- control lever

2шт.

25

138-96

LOCK PIN,3/16" x 1", Slotted

ROLL PIN - 3/8" x 1"

2шт.

26

A7915

SHIM,.0359" Thk

(20 gauge) .0359" Thk

1шт.

27

R26854

SPACER

- rear shaft

1шт.

28

R26815

SHAFT

- control levers

2шт.

29

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

10шт.

30

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4", at control tower end

5шт.

30

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , At control valve end 3/32" x 1/2"

5шт.

31

213-3

ADJUSTABLE CLEVIS,5/16"-24

ROD END - adjustable

5шт.

32

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

5шт.

33

R26817

ROD

- connecting

3шт.

34

R26818

ROD

- connecting

2шт.
