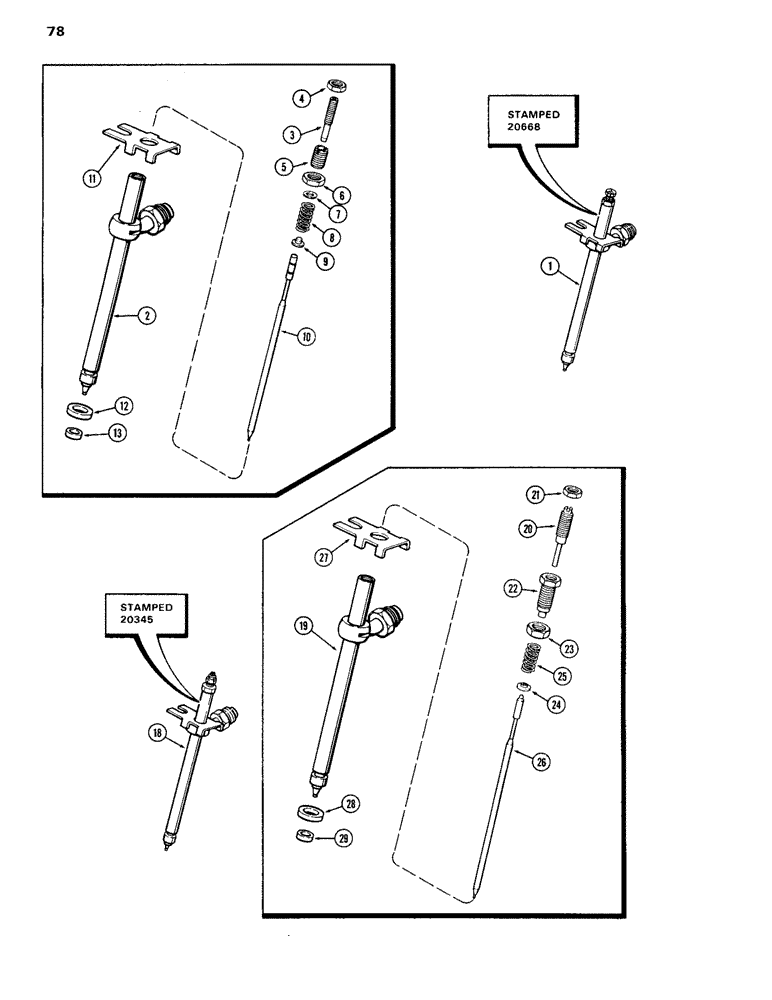

Запчасти Case 1150B (078) - A138322 INJECTOR NOZZLE (02) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Stamped 20668 on body) (red color code), Includes: Refs. 2 - 13

6шт.

A138322R

REMAN-INJECT NOZZLE

1150B

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

NLS

NO LONGER SERVICED

SEAT - pressure spring, upper (Replaces A45291)

1шт.

8

A45290

SPRING

- pressure adjusting, 11/16" free length (17.46 mm)(red color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

18

A62809

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Stamped 20345 on body) (red color code), Includes: Refs. 19 - 29

6шт.

A138322R

REMAN-INJECT NOZZLE

1150B REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - A62809 injector nozzle

1шт.

20

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, A62809 injector nozzle

1шт.

21

A43602

NUT

- lock, lift adjusting screw, A62809 injector nozzle

1шт.

22

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, A62809 injector nozzle

1шт.

23

A42424

LOCK NUT

- lock, pressure adjusting screw, A62809 injector nozzle

1шт.

24

A44369

SEAT

- spring, A62809 injector nozzle

1шт.

25

A43601

SPRING

- pressure adjusting, 1/2" free length (12.7 mm) (brown stripe color code), A62809 injector nozzle

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - A62809 injector nozzle

1шт.

27

A41768

PLATE

- nozzle locating, A62809 injector

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A62809 injector

1шт.

29

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A62809 injector nozzle

1шт.
