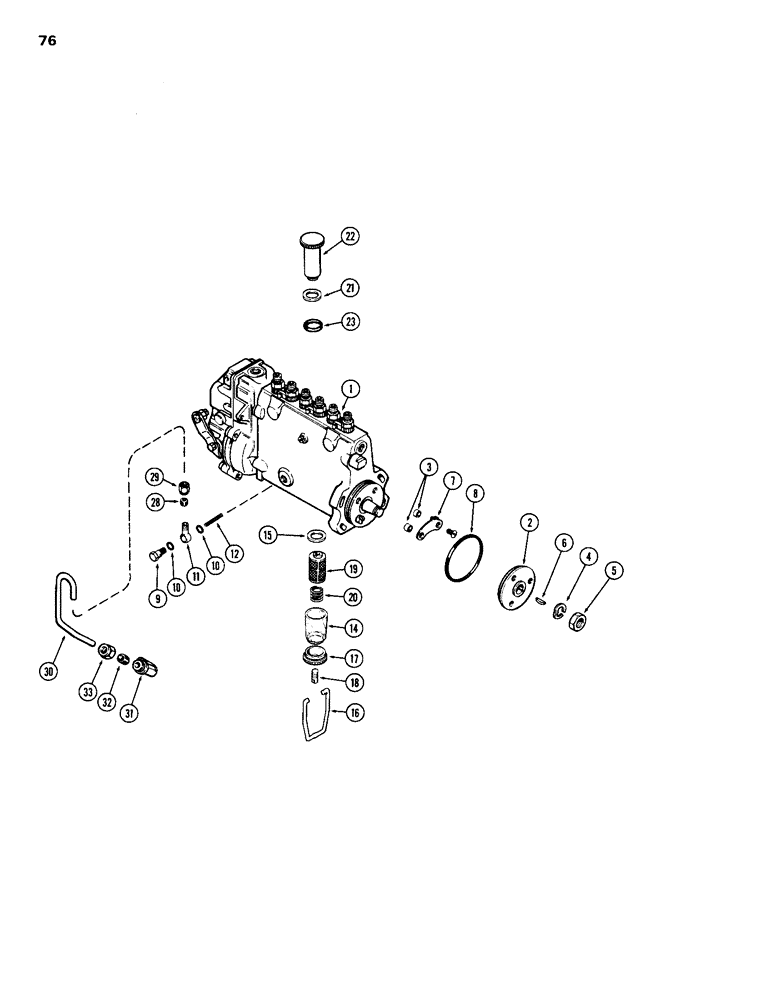

Запчасти Case 1150B (076) - A65135 INJECTION PUMP, W/ LUBRICATION LINE ON INSIDE OF PUMP (02) - FUEL SYSTEM

1

A65135

PUMP

ASSEMBLY - fuel injection (Bosch PES6A0400876191D)

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

1шт.

4

A42312

LOCK WASHER

- lock

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 2-15/16 x 3-3/16 x 1/8" (74.61 x 80.96 x 3.18 mm)

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting (copper)

2шт.

11

A25191

FITTING

- oil tube (Banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

14

A43347

BOWL

- filter (glass)

1шт.

15

A43346

GASKET

- filter bowl

1шт.

16

A43350

CLAMP

HANGER - filter bowl

1шт.

17

A43348

NUT

- bowl seat

1шт.

18

A43349

STUD

- nut tension

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

- port (copper)

1шт.

22

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump

1шт.

23

A45342

GASKET

- 5/8 x 1-1/16 x 1/16" (15.88 x 27 x 1.59 mm)

1шт.

28

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

1шт.

30

A58717

TUBE

- pump to cylinder block

1шт.

31

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY

1шт.

32

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

1шт.
