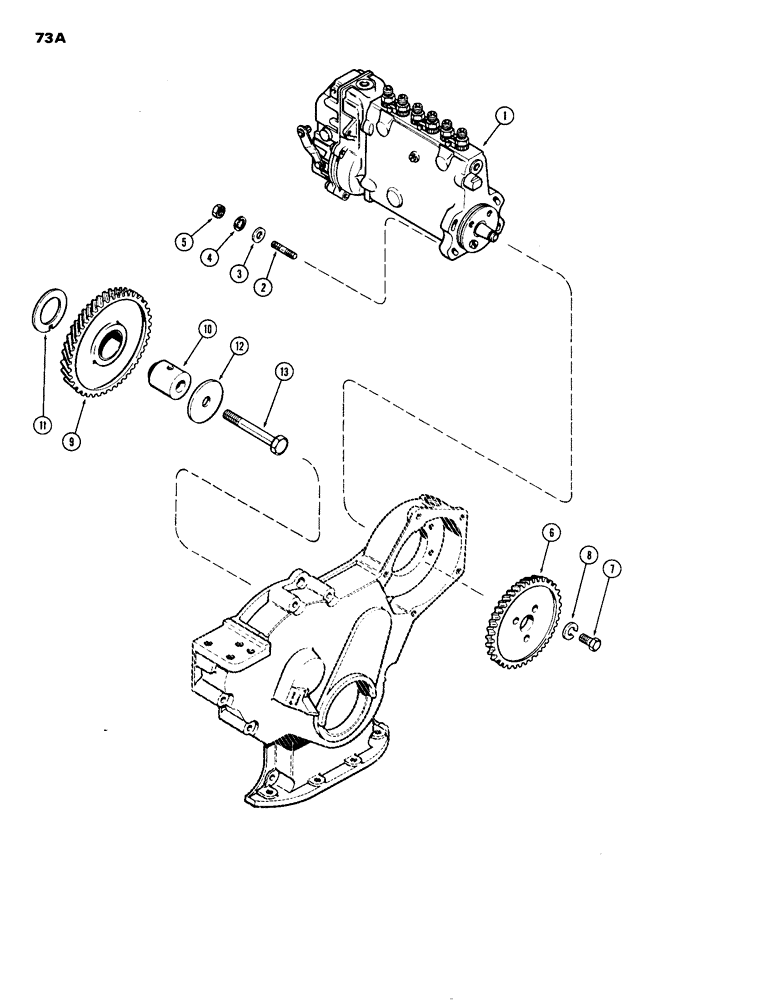

Запчасти Case 1150B (073A) - INJECTION PUMP DRIVE, (451BD) AND (451BDT) DIESEL ENGINES (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (Fig. 74 & 76)

1шт.

2

A58689

STUD

- pump mounting, 3/8" NC x 1-7/8"

3шт.

2

A142092

STUD

- pump mounting, 3/8" NC x 1-7/8" (drilled for anti-tamper wire)

1шт.

3

A57470

WASHER

- 3/8 x 11/16 x 16 gauge

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (used with A58689 stud)

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC hex, slotted (used with A142092 stud)

3шт.

6

A58693

GEAR

- injection pump drive (48 teeth)

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

9

A62542

GEAR

ASSEMBLY - idler, with bushing

1шт.

10

A58690

SHAFT

- idler gear

1шт.

11

A58691

WASHER

- thrust, idler gear (with lip)

1шт.

12

A58692

PLATE

WASHER - thrust, idler shaft, 1/2 x 2-1/4 x 3/16" (12.7 x 57.15 x 4.76 mm)

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler shaft Hex, 1/2"-13 x 4 1/4", G5

1шт.
