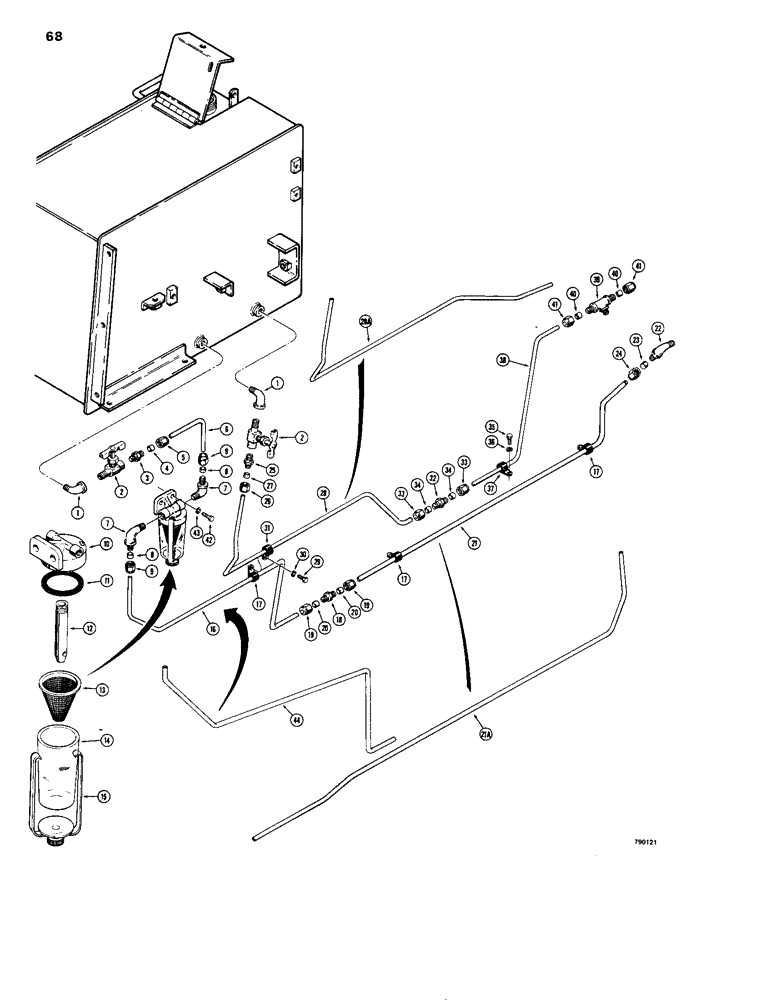

Запчасти Case 1150B (068) - FUEL LINES (02) - FUEL SYSTEM

1

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

FITTING - street, 90 degree

2шт.

2

217-94

SHUT-OFF VALVE

VALVE - fuel

2шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING - flex, male, Includes: Refs. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

222-104

SLEEVE,3/8" Tube

1шт.

5

222-114

NUT,5/8"-24

NUT

1шт.

6

R27094

TUBE

- fuel, tank to strainer, Serial Range: -7306041

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - flex, male, Includes: Refs. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

8

222-104

SLEEVE,3/8" Tube

1шт.

9

222-114

NUT,5/8"-24

NUT

1шт.

R18798

STRAINER ELEMENT

STRAINER - fuel, Includes: Refs. 10 - 15, Serial Range: -7306041

1шт.

10

R21356

HOUSING

BODY - strainer

1шт.

11

R21357

GASKET

- bowl

1шт.

12

R21360

TUBE,0.687" DIA x 3.344" L

- strainer

1шт.

13

R21359

FILTER SCREEN

SCREEN - strainer

1шт.

14

R21361

BOWL

- strainer

1шт.

15

R21358

CLAMP

BAIL - strainer

1шт.

16

R27095

TUBE

- fuel, at strainer, Serial Range: -7306041

1шт.

17

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube, P-type

3шт.

222-5

FITTING,5/8"-24 Flex Tube

- flex, tube, Includes: Refs.18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY

1шт.

19

222-114

NUT,5/8"-24

NUT

2шт.

20

222-104

SLEEVE,3/8" Tube

2шт.

21

R27099

FUEL TUBE,0.375" OD

TUBE - at filters, loader models

1шт.

21a

R27096

TUBE,0.375" OD

- at filters, dozer models

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - 90 degree, flex, male, Includes: Refs. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - 90 degree

1шт.

23

222-104

SLEEVE,3/8" Tube

1шт.

24

222-114

NUT,5/8"-24

NUT

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

- flex, male, Includes: Refs. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BODY

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT

1шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

R27131

TUBE

- return, loader models

1шт.

28a

R27097

TUBE

- return, dozer models

1шт.

29

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

30

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

31

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

222-3

FITTING,1/2"-24 Flex Tube

- tube, straight, Includes: Refs. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

BODY

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT

2шт.

34

222-102

SLEEVE,1/4" Tube

2шт.

35

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

36

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

37

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

1шт.

38

R27098

TUBE

- fuel return

1шт.

39

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - male, compression, Includes: Refs. 40 & 41

1шт.

40

222-102

SLEEVE,1/4" Tube

2шт.

41

87017024

TUBE NUT,1/2"-24

NUT

2шт.

42

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

44

R31568

TUBE,0.375" OD

- fuel, tractor, Start Serial: 7306041

1шт.
