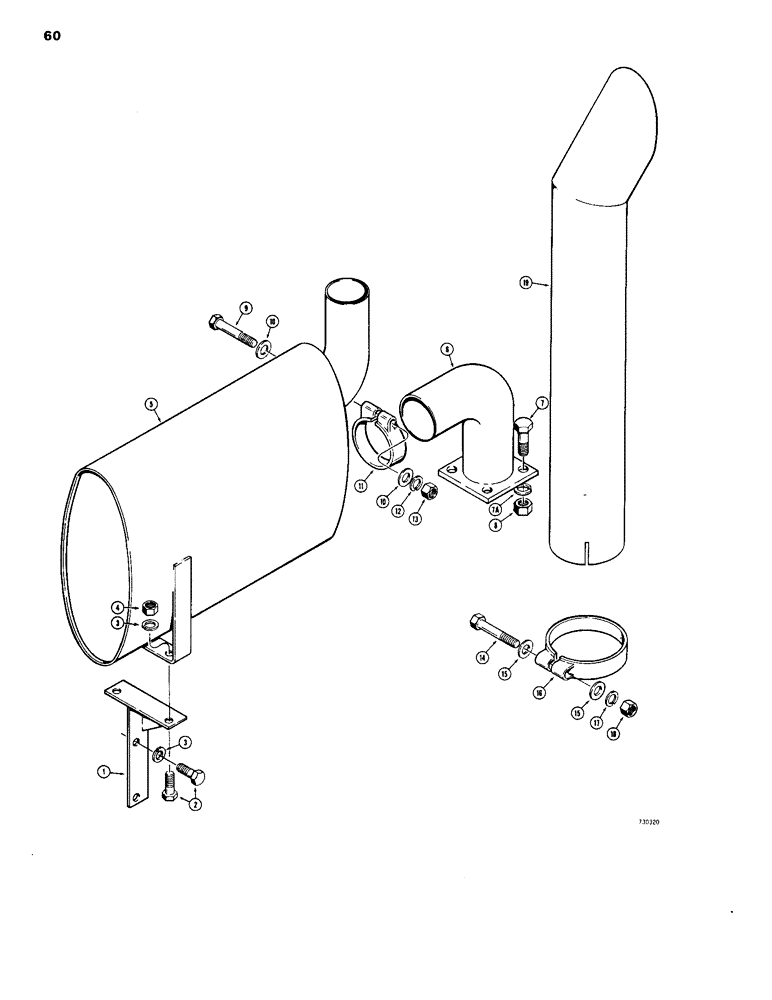

Запчасти Case 1150B (060) - MUFFLER AND EXHAUST PIPES, NON-TURBOCHARGED DOZER AND LOADER (01) - ENGINE

1

R27692

BRACKET

- muffler mounting

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

5

R27575

MUFFLER

- exhaust, standard

1шт.

Muffler must be reworked for models with aspirated dust cup by cutting 1-1/2", 38.1 mm, off muffler outlet.

1шт.

5

R38899

MUFFLER

- exhaust, spark arresting

1шт.

Muffler must be reworked for models with aspirated dust cup by cutting 1-1/2", 38.1 mm, off muffler outlet.

1шт.

6

R27572

TUBE,5.9, 6.9" L

- manifold to muffler

1шт.

There is no gasket and don't use gasket sealant under this tube connecting to the manifold as it doesn't do any good.

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7a

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

10

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

11

R27691

CLAMP

- muffler

1шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

13

25-104

NUT,1/4"-20, G5

- hex, 3/8" - 16 NC

1шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

16

R27699

CLAMP,114.3mm

- stack

1шт.

17

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

19

R27696

MUFFLER

STACK - exhaust

1шт.

Stack must be reworked for models with aspirated dust cup by cutting a 2" x 3-13/32", 50.8 mm x 86.52 mm, notch.

1шт.
