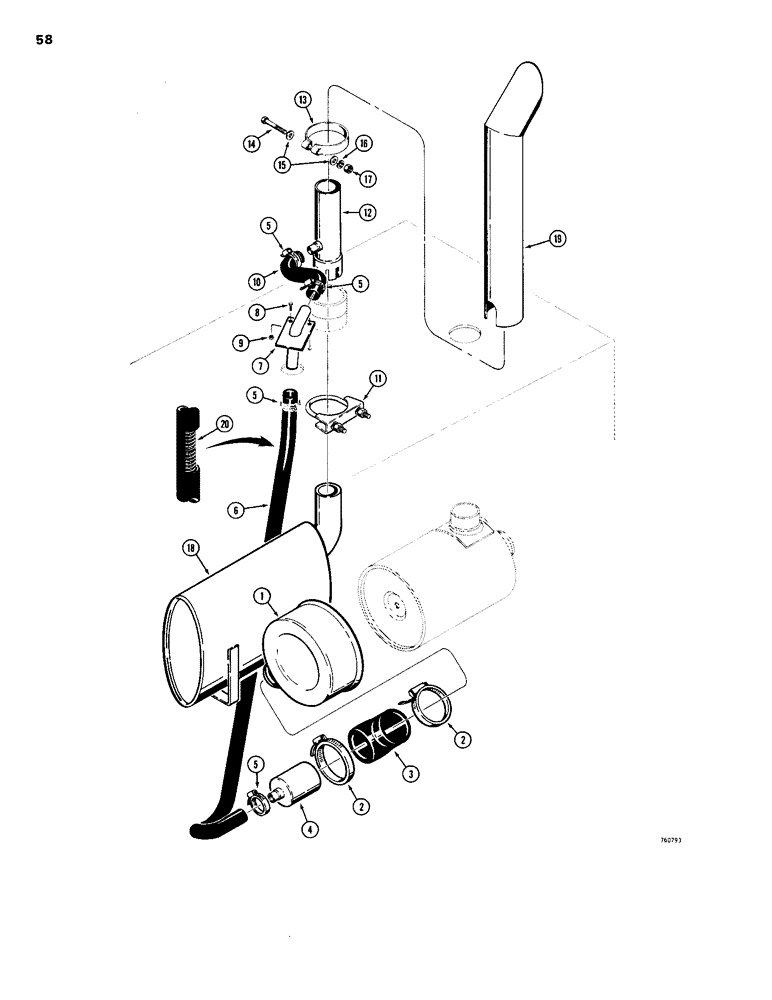

Запчасти Case 1150B (058) - ASPIRATED AIR CLEANER DUST CAP, NON-TURBOCHARGED MODELS (01) - ENGINE

1

D50943

CUP

CAP - air cleaner

1шт.

2

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - worm screw

2шт.

3

R37129

ELBOW

- hose

1шт.

4

R37128

DUST VALVE

VALVE - check, air cleaner

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

6

R41495

INTAKE AIR HOSE,1.25" ID x 48.00"

- Cut as required 1.25" ID x 48.00"

1шт.

7

R37124

TUBE - bulkhead, dozer only

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

2шт.

10

R41494

HOSE - 1-1/4" (31.75 mm) ID, Serial Range: cut-length

1шт.

11

A13240

CLAMP,2-5/8" ID

ASSEMBLY

1шт.

12

R37139

PIPE, EXHAUST SYSTEM

STACK - aspirator

1шт.

13

R27699

CLAMP,114.3mm

- stack

1шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

REF

INSTRUCTION

MUFFLER - Fig. 60

1шт.

19

REF

INSTRUCTION

STACK - exhaust, Fig. 60

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - hose, use R41495 hose

1шт.

R5935

KIT - converts to aspirated dust cup, machinery item, Fig. 2 for ordering

1шт.
