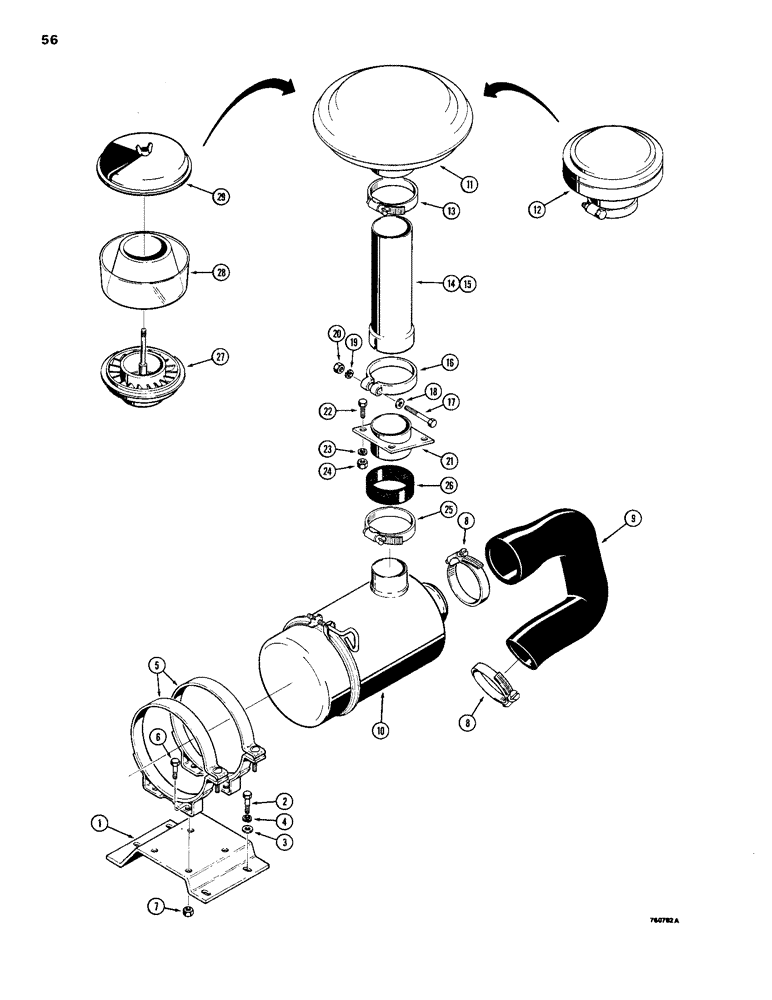

Запчасти Case 1150B (056) - AIR CLEANER AND RELATED PARTS - TOP INTAKE, NON-TURBOCHARGED DOZER & LOADER MODELS (01) - ENGINE

1

R27204

BRACKET

- air cleaner mounting

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

5

A16574

BAND

CLAMP ASSEMBLY - air cleaner retaining

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

4шт.

8

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - R37337 hose

1шт.

8

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - 1 - R37337 hose, 2-R26594 hose

2шт.

9

R26594

HOSE

- one element air cleaner

1шт.

9

R37337

INTAKE AIR HOSE,3.00" ID, 5.00" ID x 10.50", SAE J200, SAE J14

- Two element air cleaner 3.00" ID, 5.00" ID x 10.50", SAE J200, SAE J14

1шт.

10

REF

INSTRUCTION

AIR CLEANER - Fig. 52

1шт.

11

R35458

CAP

ASSEMBLY - retained by worm style clamp, order L45486

1шт.

12

L45486

AIR CLEANER

CAP ASSEMBLY - includes hardware, retained by bolt style clamp, Includes: Ref. 13

1шт.

13

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - worm screw type

1шт.

14

R35457

TUBE

STACK - air cleaner, used with R35454 support

1шт.

15

R40837

MUFFLER

STACK - air cleaner, used on hoods with welded support

1шт.

16

R35673

CLAMP

- stack

1шт.

17

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

18

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

R35454

MUFFLER

STACK SUPPORT - if used

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

25

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube, loader models

4шт.

26

R35455

SEAL ASSY.

TUBE - air cleaner, loader models

1шт.

R38370

PAD

- seal, if used, not shown

1шт.

A75056

FILTER

PRE-CLEANER - air, Includes: Refs. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

BODY

1шт.

28

L30671

HOUSING

BOWL

1шт.

29

L30669

COVER

1шт.

R6068

KIT - one element to two element air cleaner, loader, machinery item

1шт.

R6069

KIT - one element to two element air cleaner dozer, machinery item

1шт.
