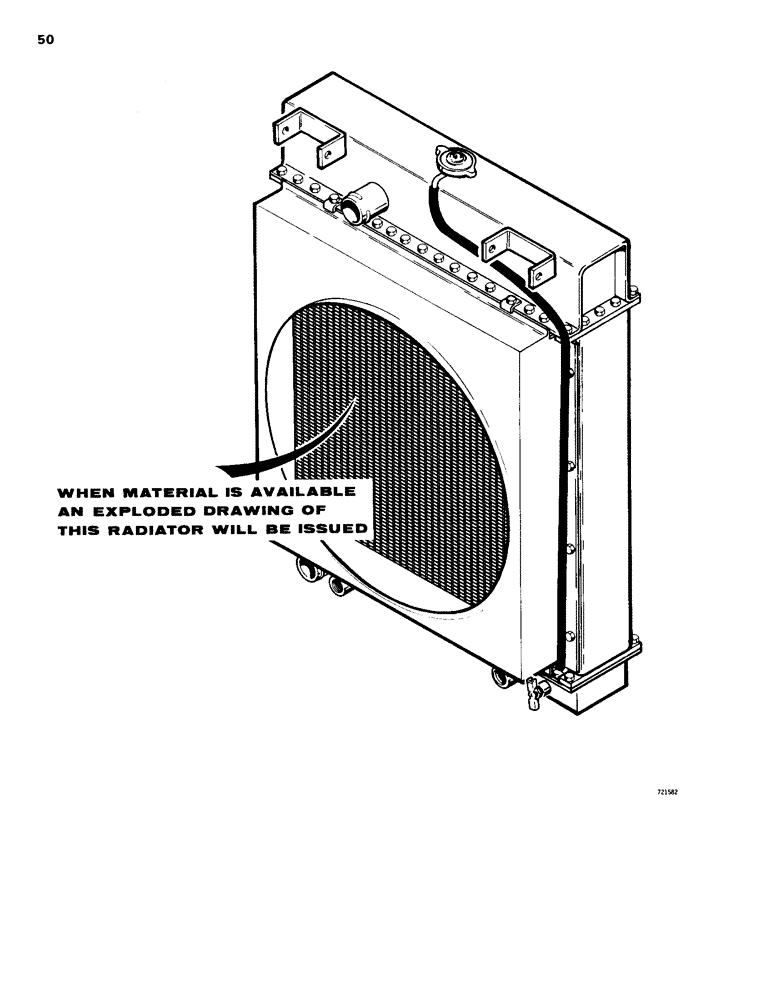

Запчасти Case 1150B (050) - R27203 YOUNG RADIATOR (01) - ENGINE

R27203

RADIATOR ASSEMBLY - Young #D260024, Includes: Refs. 1 - 15

1шт.

For the R27203 Radiator, Order the primes for R27202

1шт.

1

R30211

TANK - top

1шт.

2

R30213

SIDE - tank, R.H.

1шт.

3

R30214

SIDE - tank, L.H.

1шт.

4

R30219

BAR - core

4шт.

6

R30215

CORE - radiator

1шт.

7

R30212

TANK - top

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

80шт.

7

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

80шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

60шт.

9

R30216

SHROUD - radiator

1шт.

10

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

HHCS - 1/4" - 20 NC x 3/8"

8шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

12

R30221

HOSE - over flow, 43" (1083 mm) long

1шт.

13

R30218

CLAMP - hose

1шт.

14

R30217

CLIP - shroud

2шт.

15

R24692

CLIP - shroud

2шт.
