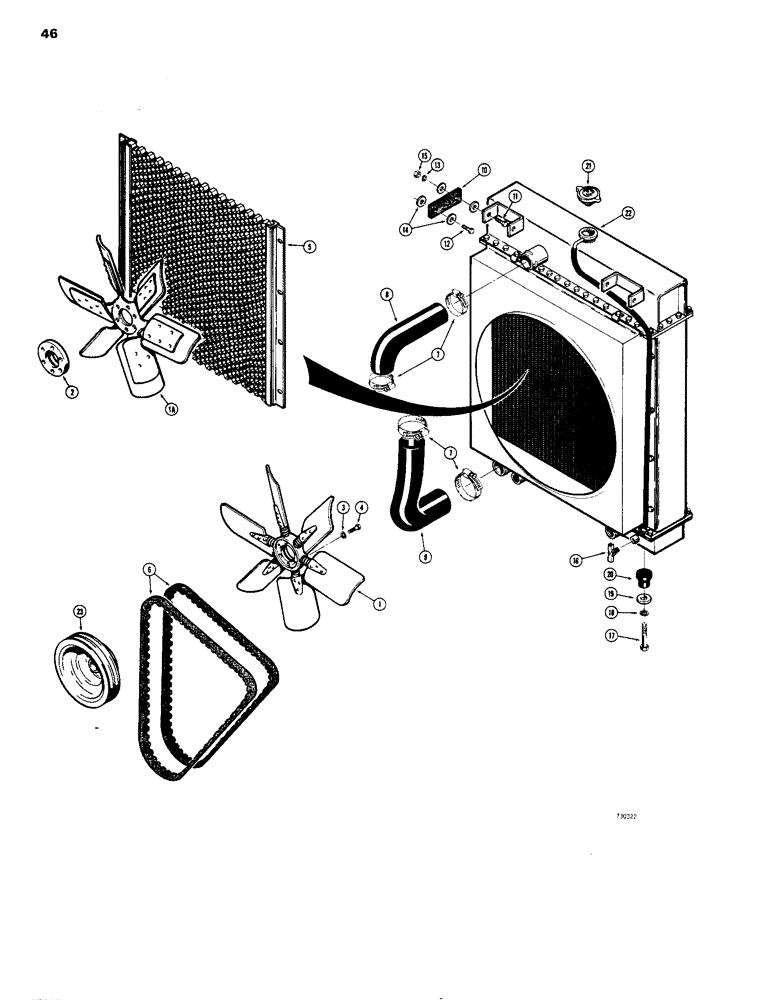

Запчасти Case 1150B (046) - RADIATOR, FANS AND HOSES (01) - ENGINE

1

R27705

FAN

- reversible, use with R27191 screen

1шт.

1a

R27704

FAN

- pusher, use with R27191 screen, not shown

1шт.

1b

R27703

FAN

- suction, not shown

1шт.

2

R27706

SPACER

- R27703 fan

1шт.

2

R27707

SPACER

- fan, all dozer models

1шт.

3

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

6шт.

4

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2", R27703 fan, dozer and drawbar

6шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

R27704 fan, loader Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R27704 fan, dozer and drawbar Hex, 3/8"-16 x 1 3/4", G5

6шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4", R27703 fan, loader

6шт.

5

R27191

FILTER SCREEN

SCREEN - anti-sandblast

1шт.

6

R27266

SET OF BELTS,0.69" W x 58.00" L

Fan and alternator (Matched set), Dozer models 0.69" W x 58.00" L

1шт.

6

R30790

SET OF BELTS,0.69" W x 59.00" L

Fan and alternator (Matched set), Loader models 0.69" W x 59.00" L

1шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

8

R27205

HOSE

- radiator, upper

1шт.

9

R27206

RADIATOR HOSE,2.63" ID x 13.40", SAE 20R4 Class D1, SAE 20R4 Class SC

HOSE - radiator, lower

1шт.

10

D35108

STRAP

- radiator mounting

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Dozers 4, loaders 2 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2-4шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loaders only Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

14

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

8шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, dozers 4, loaders 2

2-4шт.

16

217-92

COCK

VALVE - drain cock

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D25022

WASHER

- special

2шт.

20

R29799

SHOCK ABSORBER

MOUNT - rubber

2шт.

21

D25826

CAP

- radiator, 7 P.S.I

1шт.

22

R27203

RADIATOR - standard, Young, parts list Fig.50

1шт.

22

R27202

RADIATOR

- standard, Perfex, parts list Fig.48

1шт.

22

R39362

RADIATOR

- anti-sandblast, parts list Fig.48

1шт.

23

A65124

PULLEY

- fan drive, loader models

1шт.

23

A65833

PULLEY

- fan drive, dozer models

1шт.
