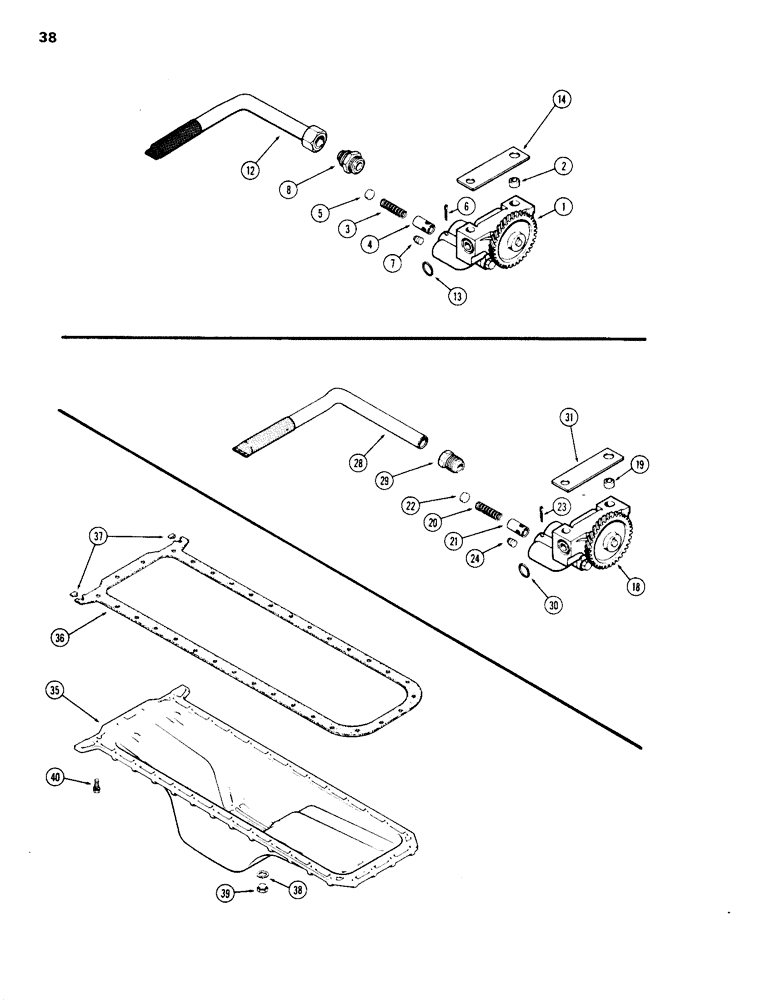

Запчасти Case 1150B (038) - OIL PUMP, (451BD) & (451BDT) DIESEL ENGINES , FIRST USED ENGINE S/N 2585351 (01) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil (For naturally aspirated engines)

1шт.

1

A151665

PUMP

ASSEMBLY - oil (For altitude compensating engines), Includes: Refs. 2 - 7

1шт.

2

A58915

SLEEVE

- pump locating, 5/8 x 3/4 x 1/2" (15.88 x 19.05 x 12.7 mm)

1шт.

3

A151960

SPRING

- relief valve, 2" free length (17.46 mm) (Replaces A59111)

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16" cup (17.46 mm)

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - Split (Cotter), 3/32" x 1 1/2"

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, socket head

1шт.

8

A142004

CONNECTOR, ELEC

CONNECTOR - oil suction line

1шт.

12

A139713

TUBE

- oil suction (with screen)

1шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm)

1шт.

14

A58859

SHIM,.005" Thk

Oil pump to brg. cap (0.14 mm) .005" Thk

1шт.

18

A65080

PUMP

ASSEMBLY - oil (Order A153000), Includes: Refs. 19 - 24, Serial Range: -2585351

1шт.

19

A58915

SLEEVE

- pump locating, 5/8 x 3/4 x 1/2" (15.88 x 19.05 x 12.7 mm), Serial Range: -2585351

1шт.

20

A151960

SPRING

- relief valve, 2" free length (17.46 mm) (Replaces A59111), Serial Range: -2585351

1шт.

21

A65083

VALVE

- relief, Serial Range: -2585351

1шт.

22

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16" cup (17.46 mm), Serial Range: -2585351

1шт.

23

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - Split (Cotter), 3/32" x 1 1/2", Serial Range: -2585351

1шт.

24

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, socket head, Serial Range: -2585351

1шт.

28

A62801

SCREEN

TUBE - oil suction (with screen) (Order 1-A139713 tube and 1-A142004 connector), Serial Range: -2585351

1шт.

29

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube (To oil pump), Serial Range: -2585351

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm), Serial Range: -2585351

1шт.

31

A58859

SHIM,.005" Thk

Oil pump to brg. cap (0.14 mm) .005" Thk, Serial Range: -2585351

1шт.

35

A60502

PAN

- oil

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43006) (Fig. 40)

1шт.

37

A62402

GASKET

- oil pan corners

2шт.

38

A27968

RING

- drain plug, 7/8 x 1-1/4 x 1/16" copper (22.23 x 31.75 x 1.59 mm) (Replaces A58933), oil pan

1шт.

39

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

40

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" NC hex, sems

32шт.
