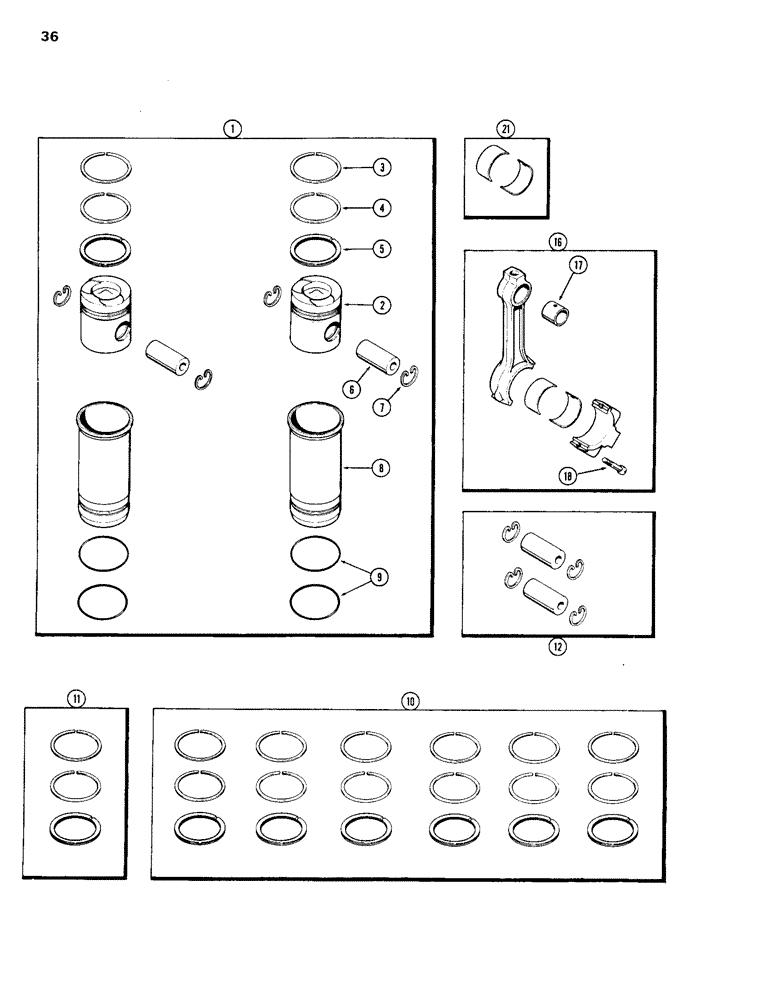

Запчасти Case 1150B (036) - PISTONS, (451BD) AND (451BDT) DIESEL ENGINES (01) - ENGINE

1

A46022

SET

PISTON KIT - (Set of 2) (Replaces A43714), Includes: Refs.2 - 9

3шт.

2

A64766

PISTON

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A142367

SLEEVE

- piston (cylinder liner) (Replaces A59093)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- sleeve, 4-1/2 x 4-3/4 x 1/8" (113.3 x 120.65 x 3.18 mm)

4шт.

10

A43029

RING, SET

RING KIT - piston re-ring (Set of 6)

1шт.

11

A43028

RING, SET

RING KIT - piston re-ring (Set of 1)

6шт.

12

A43713

PIN

KIT - (Set of 2 pins and 4 retaining rings)

3шт.

16

A62952

ROD

ASSEMBLY - connecting, Includes: Refs.17 & 18

6шт.

17

A21069

BUSHING,37.63mm ID x 43mm OD x 34.8mm L

- piston pin, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - bearing cap, 1/2 x 2-3/16" NF special, connecting rod

2шт.

21

A43173

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing, standard (Set of 2)

6шт.

21

A43174

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing, -.002" (0.06 mm) (Set of 2)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing, -.010" (0.026 mm) (Set of 2)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing, -.020" (0.52 mm) (Set of 2)

6шт.

21

A43177

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing, -.030" (0.78 mm) (Set of 2)

6шт.

If dealer is looking for shims for liners----ref s/ba34-77.

1шт.
