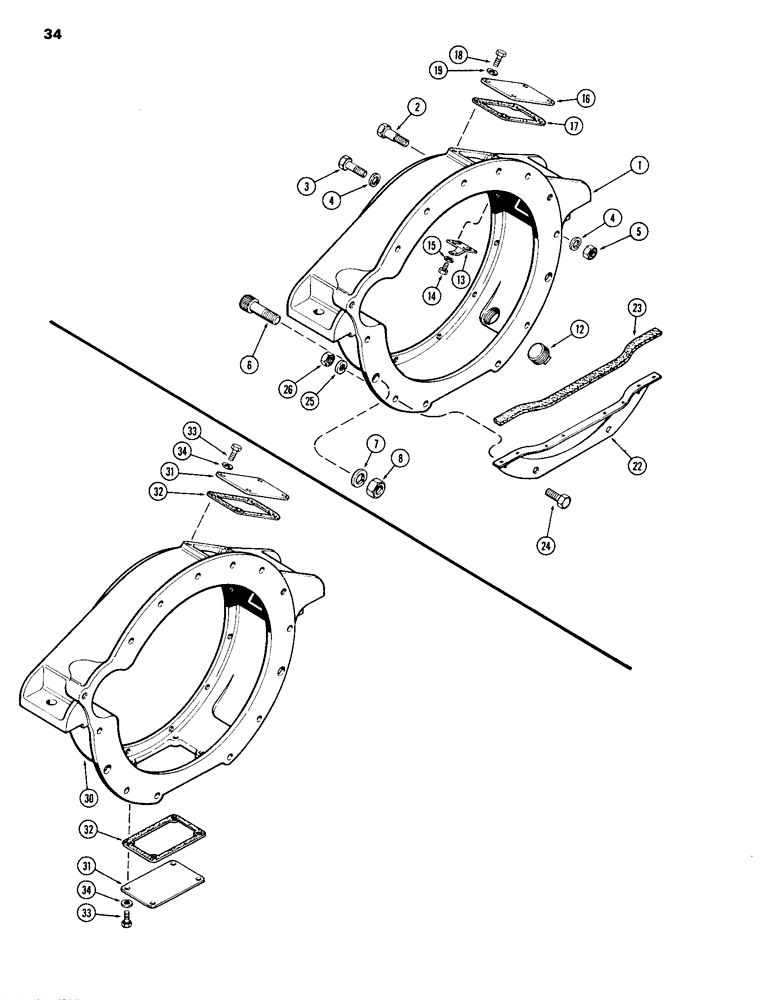

Запчасти Case 1150B (034) - FLYWHEEL HOUSING, (451BD) AND (451BDT) DIESEL ENGINES (01) - ENGINE

1

A21040

HOUSING

- flywheel, with one hand hole cover (Order A153190 housing) (Ref. 30)

1шт.

2

A61040

STEP BOLT

BOLT - dowel, 1/2 x 1-15/16" NC hex

1шт.

2

A61041

STEP BOLT

BOLT - dowel, 1/2 x 2-7/16" NC hex

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

3

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

1шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4 x 3" NC, 12 point head

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing, 1-1/4" PT, square head

1шт.

13

A22586

INDICATOR

POINTER - flywheel timing

1шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

A22584

COVER

PLATE - hand hole cover

1шт.

17

A22585

GASKET

- hand hole cover plate

1шт.

18

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

19

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

22

A64462

GUARD

SHIELD - dust, flywheel housing

1шт.

23

A57144

GASKET

- dust shield

1шт.

24

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.

30

A153190

HOUSING

ASSEMBLY - flywheel (with two hole covers), Includes: Refs. 31 - 34

1шт.

31

A22584

COVER

PLATE - hand hole cover

2шт.

32

A22585

GASKET

- hand hole cover plate

2шт.

33

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

34

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

8шт.

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - 1/4" PT, square head (Not illustrated)

1шт.
