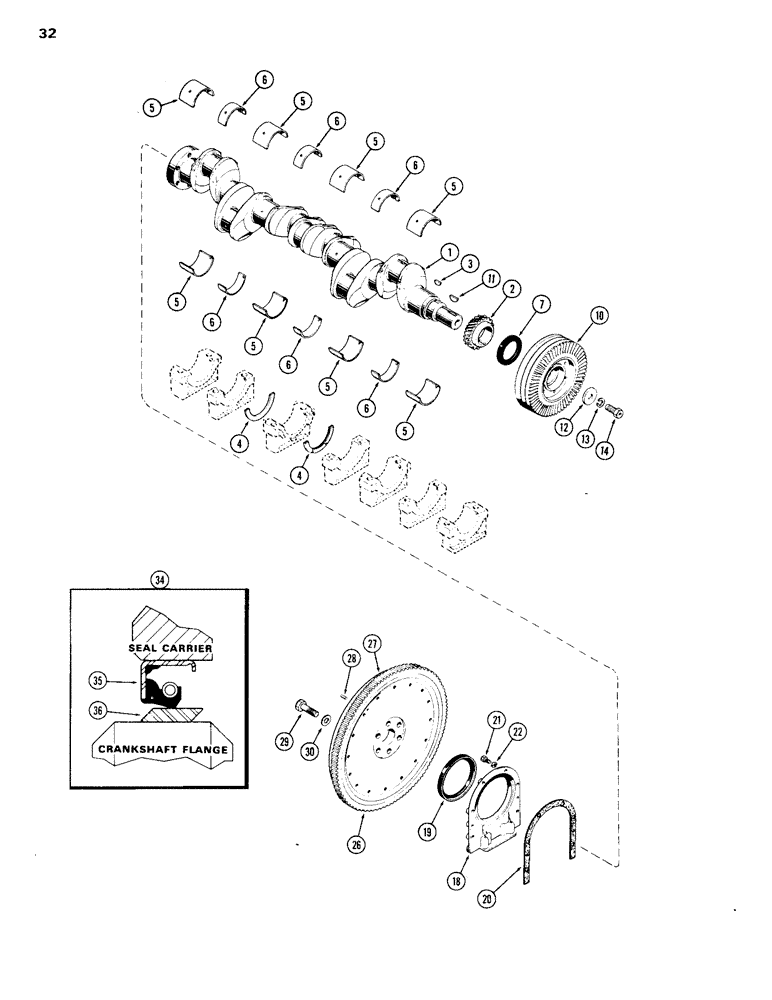

Запчасти Case 1150B (032) - CRANKSHAFT AND FLYWHEEL, (451BD) AND (451BDT) DIESEL ENGINES (01) - ENGINE

1

A136106

CRANKSHAFT

ASSEMBLY - (Replaces A58860), Includes: Refs. 2 & 3

1шт.

2

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, standard, 0.185" (4.70 mm)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, oversize, 0.191" (4.86 mm)

2шт.

5

A43163

BEARING LINER

LINER SET - main bearing, wide, standard (Set of 2)

4шт.

5

A43164

BEARING LINER

LINER SET - main bearing, wide, -.002" (0.06 mm) (Set of 2)

4шт.

5

A43165

BEARING LINER

LINER SET - main bearing, wide, -.010" (0.26 mm) (Set of 2)

4шт.

5

A43166

BEARING LINER

LINER SET - main bearing, wide, -.020" (0.52 mm) (Set of 2)

4шт.

5

A43167

BEARING LINER

LINER SET - main bearing, wide, -.030" (0.78 mm) (Set of 2)

4шт.

6

A43158

BEARING LINER

LINER SET - main bearing, narrow, standard (Set of 2)

3шт.

6

A43159

BEARING LINER

LINER SET - main bearing, narrow, -.002" (0.06 mm) (Set of 2)

3шт.

6

A43160

BEARING LINER

LINER SET - main bearing, narrow, -.010" (0.26 mm) (Set of 2)

3шт.

6

A43161

BEARING SET

LINER SET - main bearing, narrow, -.020" (0.52 mm) (Set of 2)

3шт.

6

A43162

BEARING LINER

LINER SET - main bearing, narrow, -.030" (0.78 mm) (Set of 2)

3шт.

7

A62049

OIL SEAL

- oil, front, 2-5/8 x 3-5/8 x 1/2" (66.68 x 82.08 x 12.7 mm)

1шт.

10

A65125

PULLEY

- fan drive

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

12

A27903

WASHER

- 5/8 x 2-1/8 x 3/8" (15.88 x 53.98 x 9.53 mm)

1шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley retaining Hex, 5/8"-18 x 1 1/2", G5

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear, 4-3/4 x 5-3/4 x 1/2" (110.65 x 146.05 x 12.7 mm) (Ref. 34)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

6шт.

26

A60508

FLYWHEEL

ASSEMBLY, Includes: Refs. 27 & 28

1шт.

27

A27920

GEAR

- starter ring

1шт.

28

A27840

PIN

- flywheel, 5/16 x 3/4" (7.94 x 19.05 mm)

1шт.

29

A182040

SCREW

BOLT - 5/8 x 1-1/2" NF hex(Replaced 28-1024)

6шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 1/8" (15.88 x 25.4 x 3.18 mm)

1шт.

34

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Refs.35 & 36

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1/2" (113.83 x 146.05 x 12.7 mm), wear kit

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16" (110.65 x 113.83 x 14.29 mm), seal kit

1шт.
