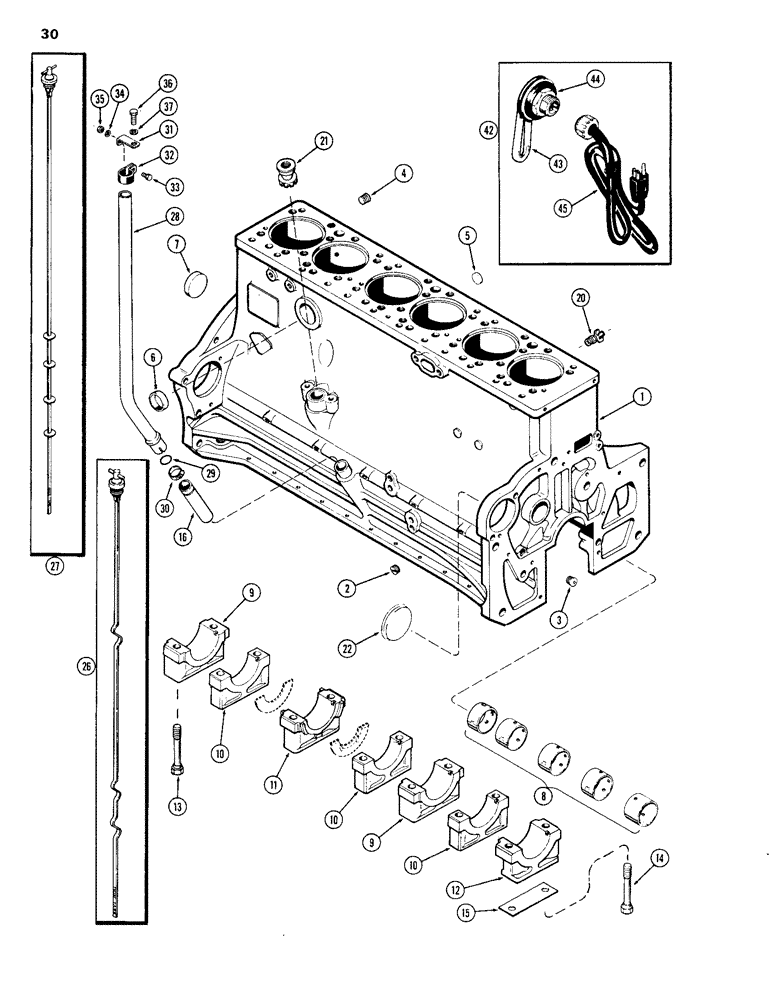

Запчасти Case 1150B (030) - CYLINDER BLOCK, (451BD) DIESEL ENGINE, USED PRIOR TO ENGINE SN 2555990 (01) - ENGINE

A43015

BLOCK

ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft and timing gears) (Order 1-A44096 block and 30-A76638 bolts), Includes: Refs.2 - 16

1шт.

1

A42068

BLOCK

ASSEMBLY - stripped (Casting No. A58513) (Order 1-A44097 block and 30-A76638 bolts), Includes: Refs. 2 - 16

1шт.

2

221-41

PLUG

- oil gallery, 1/8" PT, socket head

6шт.

3

221-1843

PLUG

- oil gallery, 3/8" PT, socket head

3шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" PT, socket head

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup34.93 mm)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup (50.8 mm)

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8" cup (60.33 mm)

1шт.

8

A23544

BUSHING

KIT - camshaft

1шт.

9

A58783

BEARING CAP

CAP - main bearing (wide)

2шт.

10

A58784

BEARING CAP

CAP - main bearing (narrow)

3шт.

11

A58785

BEARING CAP

CAP - main bearing, thrust (wide)

1шт.

12

A58782

CAP

- main bearing, front (wide)

1шт.

13

A58566

STEP BOLT

BOLT - bearing caps, 5/8 x 4-1/2" NC hex

12шт.

14

A58567

STEP BOLT

BOLT - bearing cap, front, 5/8 x 6-13/16" NC hex

2шт.

15

A58859

SHIM,.005" Thk

Oil pump (0.14 mm) .005" Thk

1шт.

16

A34540

TUBE

SOCKET - oil filler and dipstick

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

21

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

22

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive hole, 3-1/4" cup (82.55 mm)

1шт.

26

A66173

DIPSTICK

ASSEMBLY - (Order A135650) (Fig. 28)

1шт.

27

A65118

DIPSTICK ASSEMBLY - (Order A135650) (Fig. 28)

1шт.

28

A65119

TUBE

- extension, oil filler and dipstick

1шт.

29

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- extension, 1-1/8 x 1-3/8 x 1/8" (28.58 x 34.93 x 3.18 mm)

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

1шт.

31

A65120

BRACKET

- extension, Serial Range: tube-manifold

1шт.

32

D39138

CLAMP

- extension, Serial Range: tube-bracket

1шт.

33

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp to bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

25-104

NUT,1/4"-20, G5

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to manifold Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

42

A47474

HANDLE

HEATER ASSEMBLY - block water (Replaces A44812 and A42279), Includes: Refs. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

ELEMENT, block heater

1шт.

44

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element, 1-3/4 x 2 x 1/8" (44.45 x 50.8 x 3.18 mm), block heater

1шт.

45

A44813

CABLE EXTENSION

CORD - heater, 12" long (304.8 mm), block

1шт.
