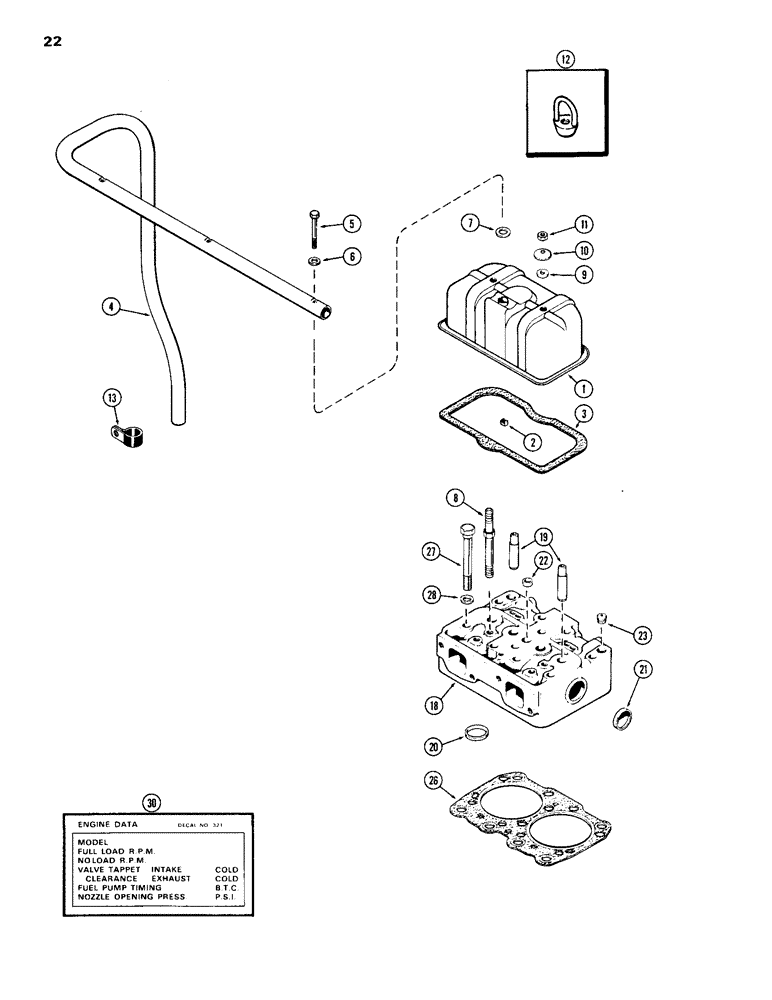

Запчасти Case 1150B (022) - CYLINDER HEAD AND COVER, (451BD) AND (451BDT) DIESEL ENGS. (01) - ENGINE

1

A58929

COVER

ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover to cylinder head (Replaces A58928)

3шт.

4

A65433

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3шт.

6

A34133

GASKET

- breather tube, upper, 1/4 x 1/2 x 1/16" (6.35 x 12.7 x 1.59 mm)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower, 11/16 x 1-1/4 x 1/4" (17.46 x 31.75 x 6.35 mm)

3шт.

8

A67121

STUD

- rocker arm bracket and cylinder head cover, 7/16" NC x 6"

6шт.

9

A23684

GASKET

GASKET - cover stud, 1/2 x 7/8 x 1/8" rubber (12.7 x 22.73 x 3.18 mm)

6шт.

10

A23683

WASHER

- cover stud (dished type)

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" NC hex

6шт.

12

A60567

EYE

- engine lifting

2шт.

13

D34033

CLAMP

- breather tube

1шт.

18

A66441

HEAD

ASSEMBLY - cylinder (Casting #A58522) (Replaces A58867), Includes: Refs.19 - 22

3шт.

19

A41783

GUIDE

- intake and exhaust valves

4шт.

20

A61253

INSERT

- exhaust valve seat(Replaced A21023)

2шт.

A66443 Exhaust Insert

1шт.

21

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup type (41.28 mm)

2шт.

22

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type (19.05 mm)

3шт.

23

221-1843

PLUG

- 3/8" PT, socket head

6шт.

26

A142482

GASKET

- cylinder head (Replaces A138121 and A64105)

3шт.

27

A76638

BOLT

- cylinder head to block, 5/8 x 6-1/4" NC hex (1st used engine serial no. 2555990)

30шт.

27

A62732

STEP BOLT

BOLT - cylinder head to block, 5/8 x 5-5/8" NC hex, Serial Range: -2555990

30шт.

28

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 1/8" (15.88 x 25.4 x 3.18 mm)

30шт.

30

321-2315

DECAL

- engine data

1шт.
