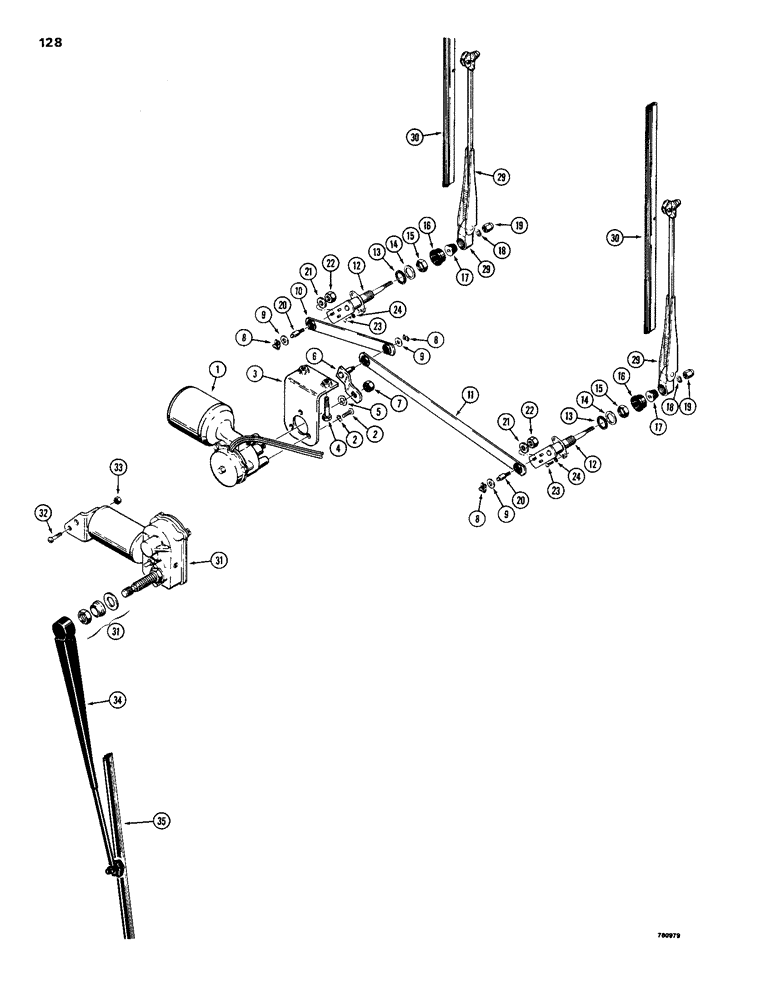

Запчасти Case 1150B (128) - WINDSHIELD WIPER (06) - ELECTRICAL SYSTEMS

1

R37766

ELECTRIC MOTOR

MOTOR - front wiper

1шт.

2

D72849

SCREW

AND WASHER

3шт.

3

R37779

BRACKET

- motor

1шт.

4

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

2шт.

5

D71411

WASHER

- special

1шт.

6

R37768

ARM

- drive (Replaced F37768)

1шт.

7

F44452

LOCK NUT

- hex (Replaced R44452)

1шт.

8

D71414

CLIP

- spring

3шт.

9

A22431

WASHER

- special

3шт.

10

R37774

LINK

- LH

1шт.

11

R37775

LINK

- RH

1шт.

D72848

SHAFT

AND PIVOT - Includes: Refs. 12 - 22

2шт.

12

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

13

D71417

SPECIAL WASHER

WASHER - felt

1шт.

14

D71418

WASHER

- flat

1шт.

15

D71419

NUT

1шт.

16

D71420

CAP

COVER - rubber

1шт.

17

D71421

TOOL

DRIVER

1шт.

18

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

19

D71422

NUT

- hex cap

1шт.

20

D73642

PIN

- special

1шт.

21

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4", plated

1шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

23

F44456

SCREW,0.19" - 32 x 3 3/4"

- round head slotted, no. 10 - 32 NF x 3/8" plated

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

R41945

ARM

- wiper, front

2шт.

30

F42214

WIPER

BLADE - front

2шт.

31

R37767

WIPER MOTOR

MOTOR - rear wiper

1шт.

32

182-166

SCREW - pan head slotted, no. 12 - 24 NC x 3/4"

1шт.

33

225-14112

NUT,#12-24

- hex, no. 12 - 24 NC

1шт.

34

F42721

ARM

- rear wiper

1шт.

35

A10894

WINDSHIELD WIPER

BLADE - rear wiper

1шт.
